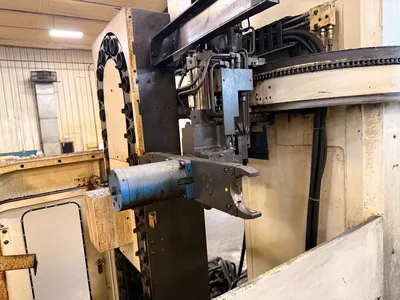

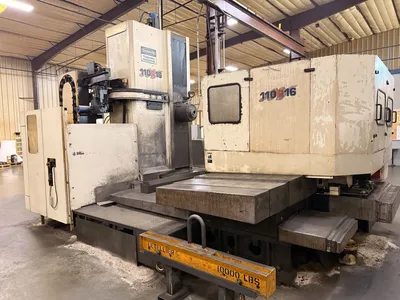

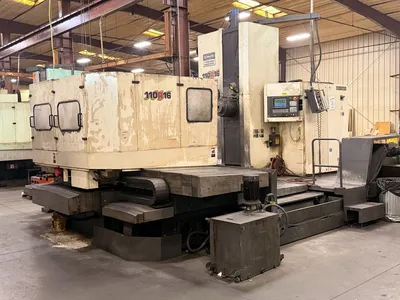

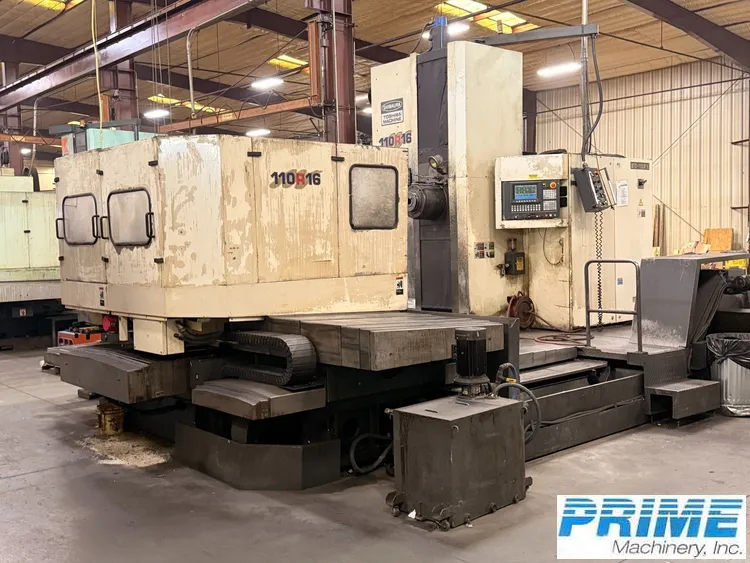

4.3" TOSHIBA BTD-110.R16 High Spindle speed CNC Table Type Boring Mill
ConditionUsed
1 available
$69,500.00 USD
TOSHIBA BTD-110.R16 CNC Boring Mill, 4.3" spindle, 35 hp, 8,000 RPM with Tosnuc 888 control. Table size 63"x55.1", load capacity 13,860 lbs. Features include high-speed spindle, chip conveyor, and manual pendant. in-plant viewing available.
X-Axis Travel (Cross Movement of Table) 78.7"
Y-Axis Travel (Vertical Travel of Spindle) 59.1"
Z-Axis Travel (Longitudinal travel of Table) 57.1"
W-Axis Travel (Spindle Extension) 15.7"

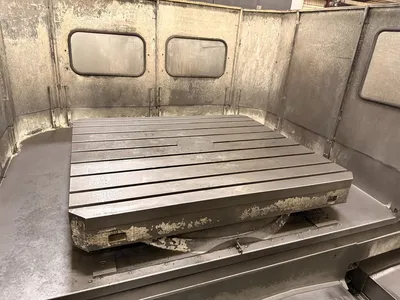

Table Working Surface 55.1" x 63"
Table Loading Capacity 13,860 Lbs
B-Axis Table Indexing 0.0001 Degree
Spindle Speeed Range 40 to 8,000 RPM

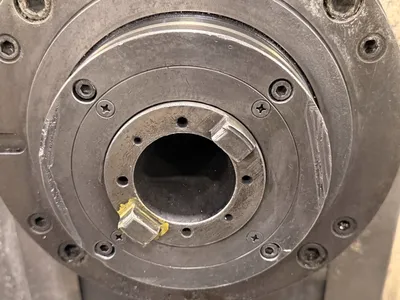

Spindle Taper Cat-50

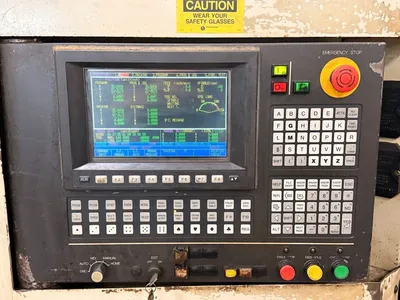

Toshiba Tosnuc 888 CNC Control
High Speed Spindle Option 40 to 8,000 RPM
Full Manual Pendant Control
Chip Conveyor
Table Guards
Inspect Under Power in Plant
TOSHIBA BTD-110.R16 CNC Boring Mill, 4.3" spindle, 35 hp, 8,000 RPM with Tosnuc 888 control. Table size 63"x55.1", load capacity 13,860 lbs. Features include high-speed spindle, chip conveyor, and manual pendant. in-plant viewing available.
Imperial
| Spindle Size | 4.3" |
| X-Horiz Tvl of Table | 78.7" |
| Y-Vert Tvl of Head | 59.1" |
| Power | 35 hp |
| RPM | 8,000 RPM |
| Table-W | 63" |
| Table-L | 55.1" |
| Spindle Tvl. | 15.7" |
| Dimensions | 201" x 236" x 156" H |
| Weight | 61,600 Lbs |
X-Axis Travel (Cross Movement of Table) 78.7"
Y-Axis Travel (Vertical Travel of Spindle) 59.1"
Z-Axis Travel (Longitudinal travel of Table) 57.1"
W-Axis Travel (Spindle Extension) 15.7"
Table Working Surface 55.1" x 63"
Table Loading Capacity 13,860 Lbs
B-Axis Table Indexing 0.0001 Degree
Spindle Speeed Range 40 to 8,000 RPM
Spindle Taper Cat-50
Toshiba Tosnuc 888 CNC Control
High Speed Spindle Option 40 to 8,000 RPM
Full Manual Pendant Control
Chip Conveyor
Table Guards
Inspect Under Power in Plant
