DN SOLUTIONS MODEL: PV-9300M CNC VERTICAL TURNING CENTER WITH MILLING - NEW: 2024
ConditionUsed
1 available

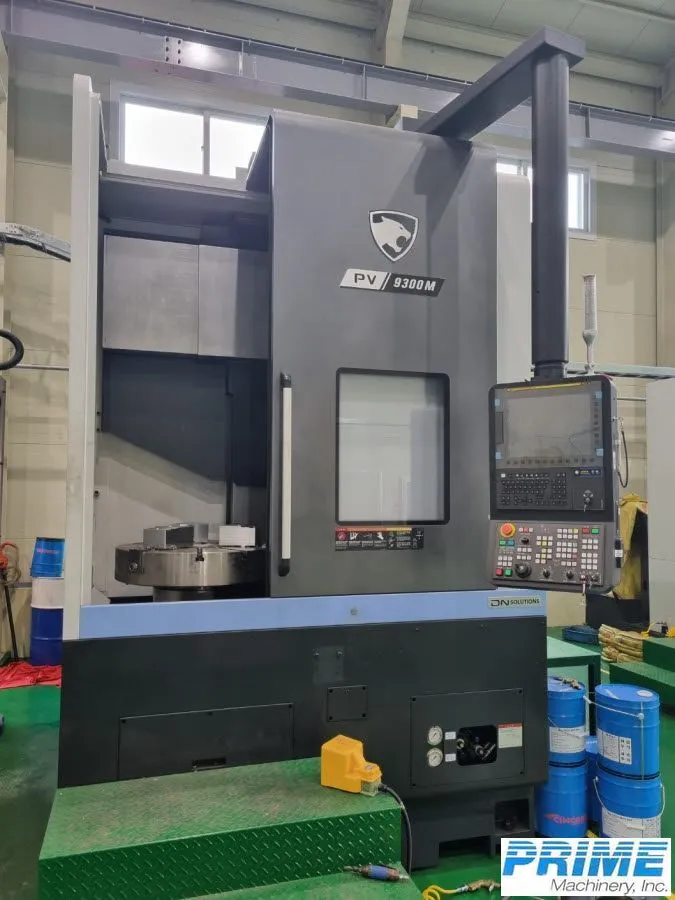

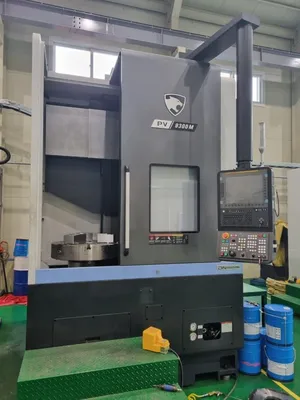

2024 DN Solutions PV-9300M CNC Vertical Turning Center with Milling. Features a 32" table and 39.4" swing diameter, 60 HP main motor, FANUC Series I CNC control, and Renishaw removable tool setter. Comes with manuals and chip conveyor.
TABLE DIAMETER.............................. 32"
SWING DIAMETER.............................. 39.4"
TURNING HEIGHT.............................. 31.5"
SPINDLE NOSE................................ A2-15
TABLE SPEED................................. 1800 RPM
MAIN MOTOR.................................. 60 HP
NUMBER OF RANGES............................ 2
X-AXIS TRAVEL............................... 19.1"
Z-AXIS TRAVEL............................... 35"
RAPID TRAVERS (X)........................... 787 IPM
RAPID TRAVERS (Z)........................... 787 IPM
C-AXIS INDEXING............................. .001
ROTARTY TABLE SPEED......................... 4,000 RPM
ROTARY SPINDLE HP........................... 30.8 HP

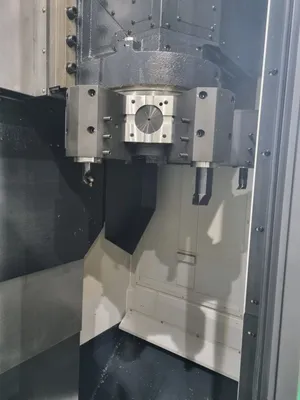

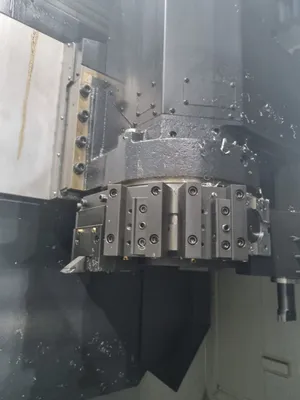

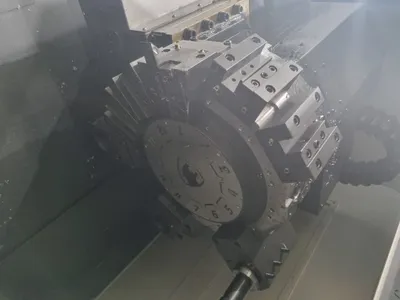

TURRET CONFIGURATION........................ 12 STATION

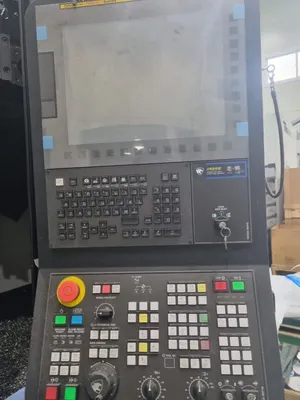

FANUC SERIES I CNC COLOR CONTROL
(3) I.D. MILLING HEADS
.001 FULL C-AXIS

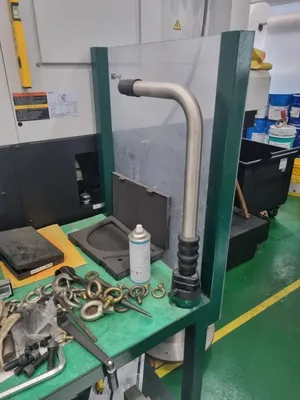

RENISHAW REMOVABLE TOOL SETTER
ETHERNET AND MEMORY CARD INPUT/OUTPUT

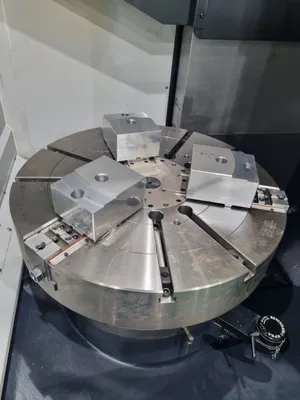

32 3/4" JAW COMBINATION HYDRAULIC CHUCK PACKAGE
MANUALS

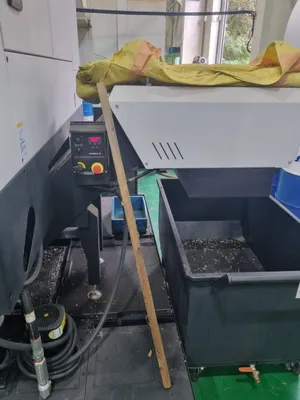

CHIP CONVEYOR
