SODICK AG600L CNC WRE EDM - NEW: 2012

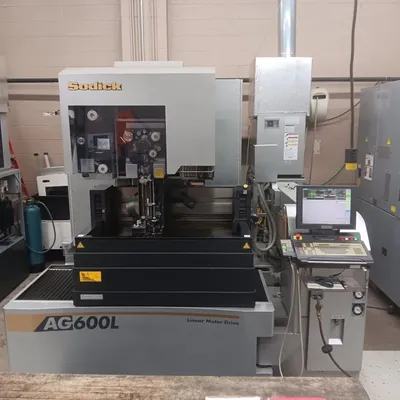

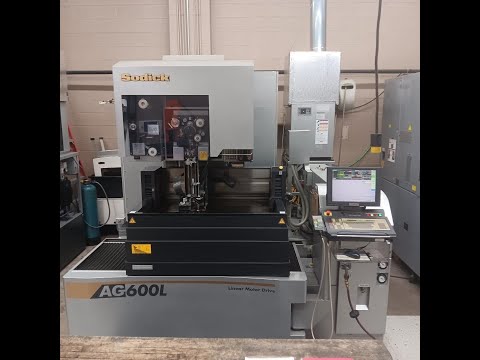

Sodick AG600L CNC Wire EDM
(Electrical Discharge Machine)

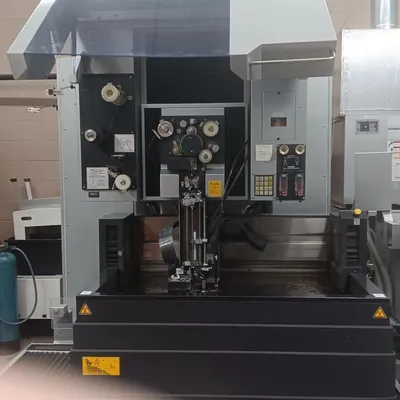

with Auto Threading, U/V Axes, Linear Motor Drives
New 2012

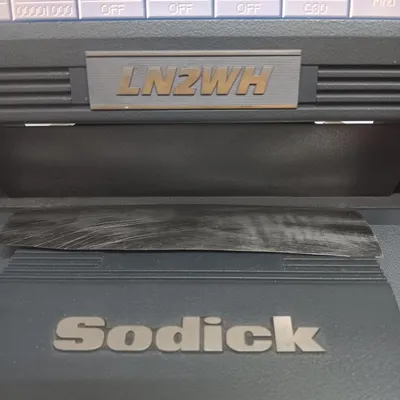

Specs:Control: Sodick LN2W CNC Control

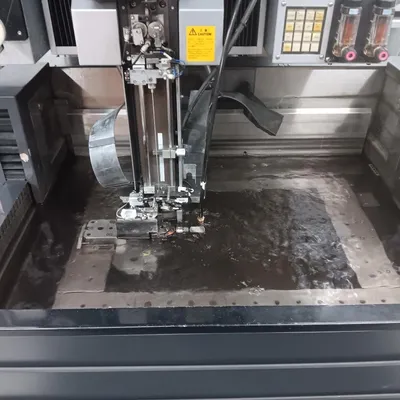

Inside Tank Dimensions: 41.34" x 27.59"
Travels (X,Y,Z): 23.6" x 15.75" x 13.78"
U & V Travels: 4.73"
Taper Angle: +/- 25 Degree
Max Workpiece Weight: 2,240 Lbs.
Wire Diameter: 0.002 - 0.012"
Wire Speed: 16.54 Inches Per Second Max
Power Supply Amps: 40 Amps
Dielectric Fluid Capacity: 211 Gallons

Main Unit Approx Weight: 10950.00 lbs
Main Tool Dimensions (in inches):
Width: 96.46" Depth: 103.15" Height: 94.09"
Machine Installation Dims:
137.80" x 145.67"

Components:

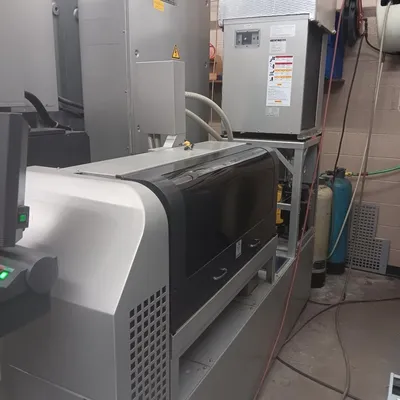

Dielectric Tank, External Dims.:
Width: 28.54" Depth: 100.39"

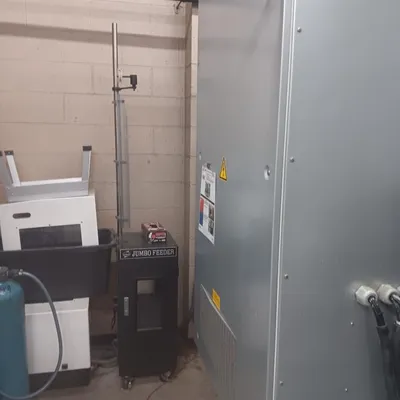

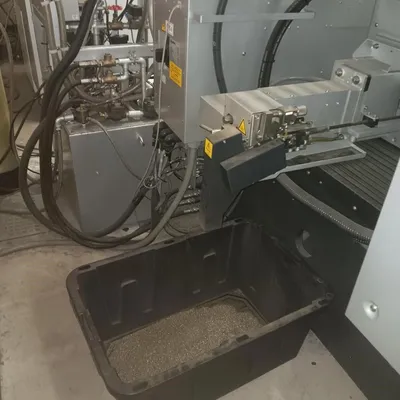

Spent Wire Bin:
Length: 24.00" Width: 24.00" Height: 40.00"
