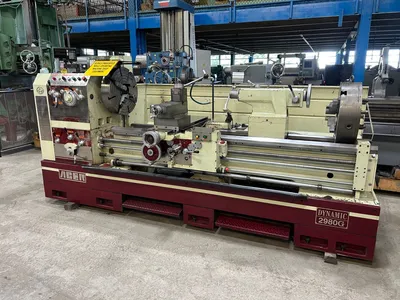

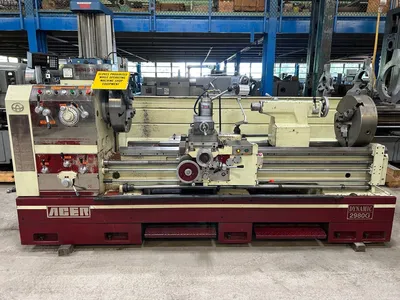

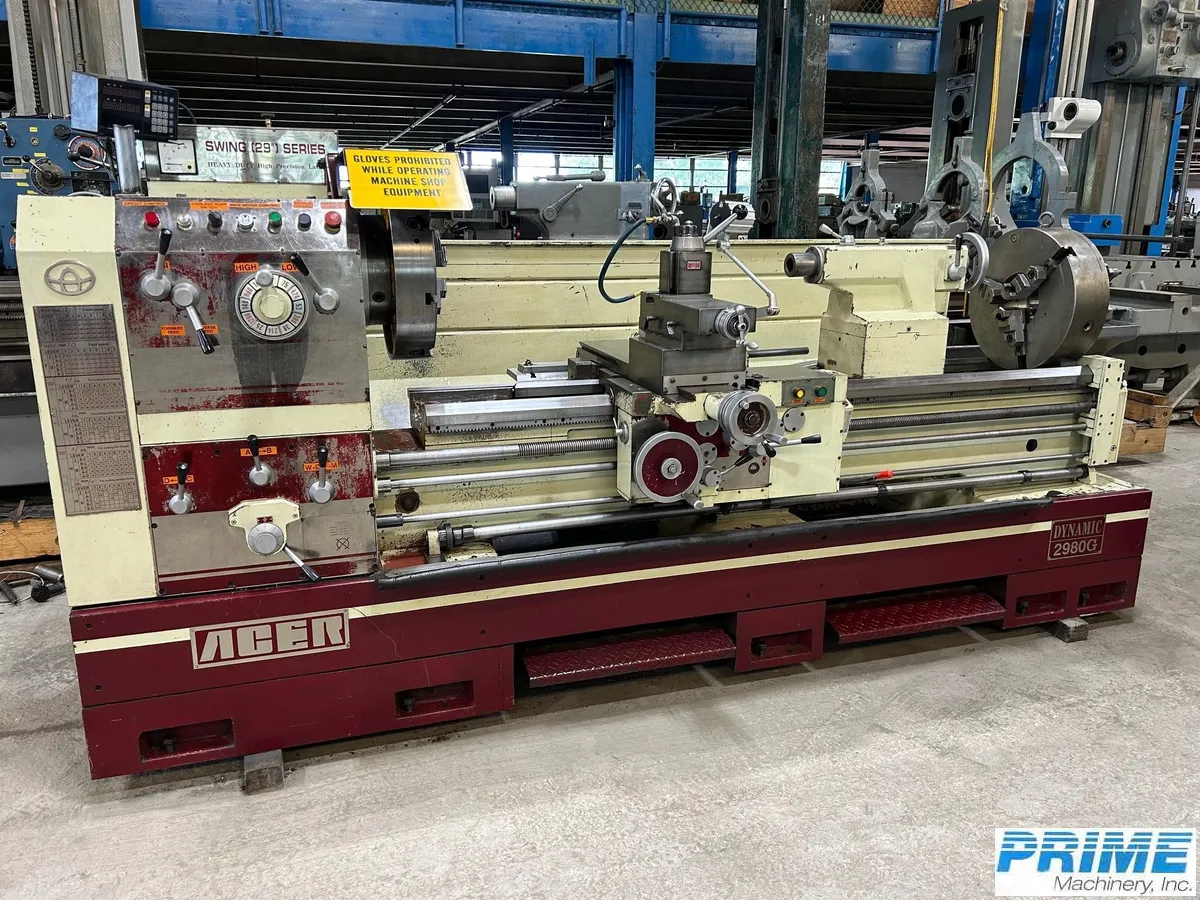

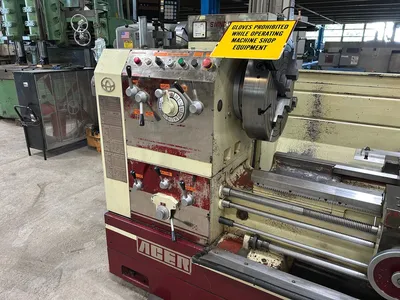

29"/37" x 80" ACER MODEL: 2980G GAP BED ENGINE LATHE - YEAR: 2002
ConditionUsed
1 available
2002 Acer 2980G Gap Bed Engine Lathe: 29"/37" x 80", spindle speed up to 1200 RPM, equipped with digital readout, 19-1/2" 4-jaw chuck, taper turning, coolant system, and more. Suitable for diverse lathe operations. Approx. weight: 7,250 lbs.
SWING OVER BED ....................... 29-1/8"
SWING IN REMOVEABLE GAP .............. 37-25/32"
SWING OVER CROSS SLIDE ............... 20-1/2"
HOLE THRU SPINDLE .................... 4-1/8"
DISTANCE BETWEEN CENTERS ............. 80"
BED WIDTH ............................ 16-1/2"
SPINDLE NOSE ......................... D1-11"CAMLOCK

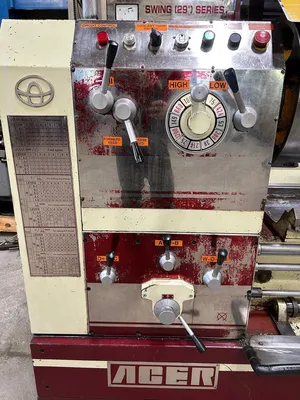

SPINDLE SPEED RANGE (12) ............. 25 - 1200 RPM
LONGITUDINAL FEED RANGE .............. .0012 - .0287 IPR
CROSS FEED RANGE ..................... .004 - .0118 IPR
ENGLISH THREADING RANGE ............. 2 - 56 TPI
METRIC THREADING RANGE ............... .5 - 14 mm
TAILSTOCK SPINDLE TRAVEL ............. 7"
TAILSTOCK SPINDLE TAPER .............. #5MT
APPROXIMATE DIMENSIONS ............... 130"L X 50"W
APPROX WEIGHT ........................ 7,250 LBS
INCH/METRIC THREADING

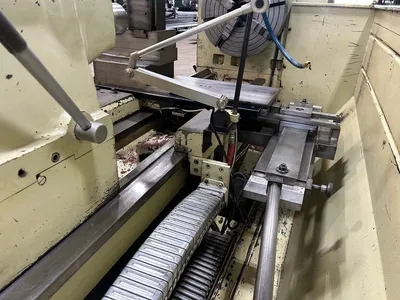

TAPER TURNING ATTACHMENT

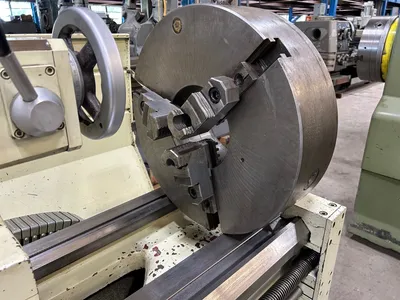

19-1/2" 4-JAW CHUCK
DIGITAL READOUT
STEADY REST
QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
COOLANT SYSTEM
FOOT BRAKE
REMOVEABLE CHIP PAN

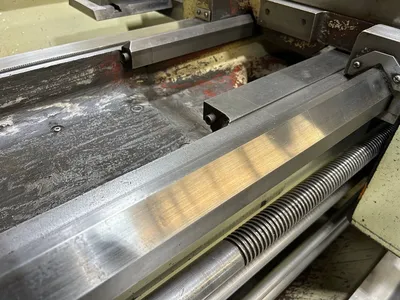

HARDENED & GROUND BEDWAYS
15 HORSE POWER MAIN MOTOR
