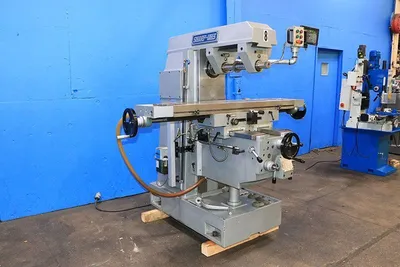

SHARP MODEL: UH-3 UNIVERSAL MILL WITH NEWALL 3-AXIS DRO - NEW: 2012
$19,500.00 USD
ConditionUsed
1 available
Explore the 2012 SHARP UH-3 Universal Mill. Features include a 51.19" x 11.81" table, ±45° swivel, and 35-1382 RPM spindle speeds. Includes Newall 3-axis digital readout, rapid traverse, and coolant system. Ideal for precision milling needs.

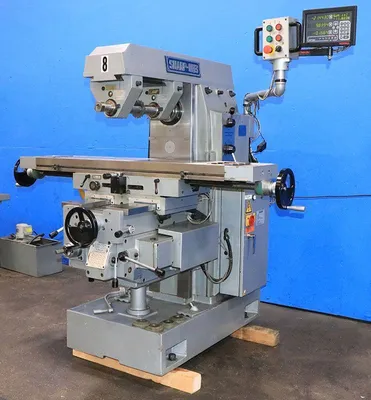

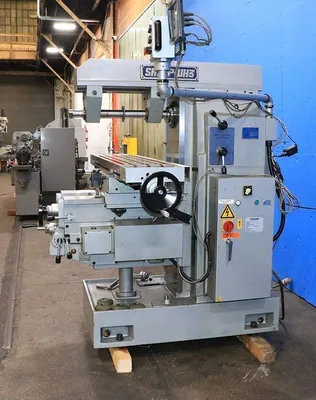

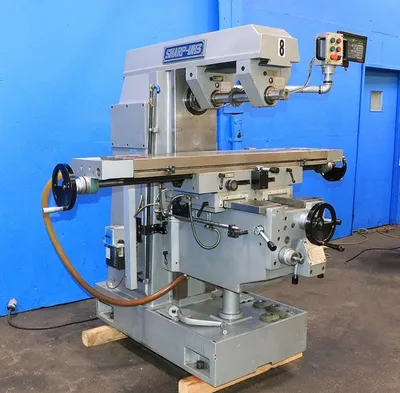

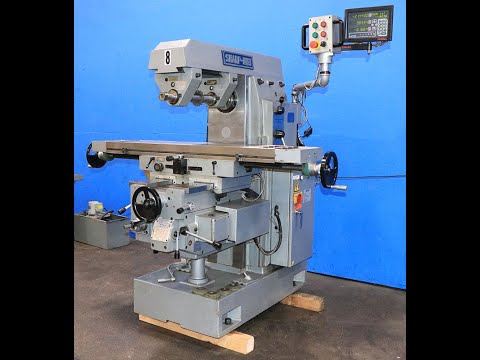

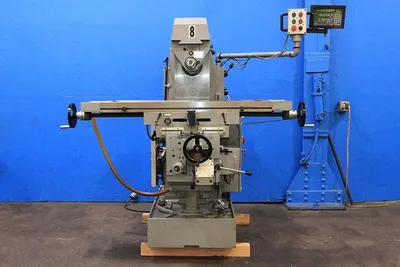

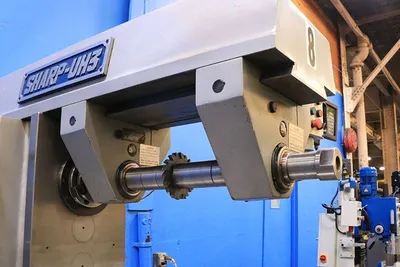

SHARP UNIVERSAL / HORIZONTAL MILL

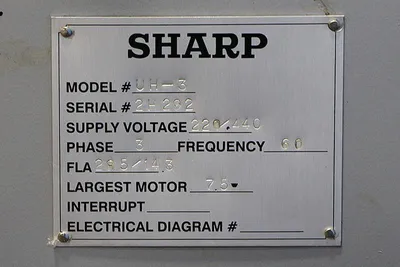

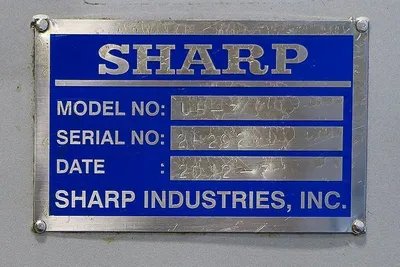

MODEL: UH-3, S/N: 2H292, MFG: 2012
SPECIFICATIONS:

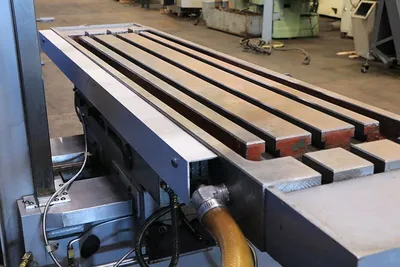

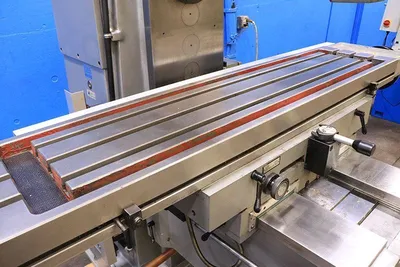

TABLE SIZE .................................. 51.19" X 11.81"
TABLE SWIVELS ............................... + OR - 45 DEGREES
LONGITUDINAL TABLE TRAVEL ................... 37.38"
CROSS TABLE TRAVEL .......................... 14.81"
VERTICAL TABLE TRAVEL ....................... 18"
RAM TRAVEL .................................. 20"
FEED RANGE LONGITUDINAL & CROSS ............. 1/2 - 24-7/8 IPM
FEED RANGE VERTICAL ......................... 1/4 - 12-7/16 IPM
RAPID TRAVERSE LONG. & CROSS ................ 116 IPM
RAPID TRAVERSE VERTICAL ..................... 60 IPM
SPINDLE TAPER ............................... #50 STD

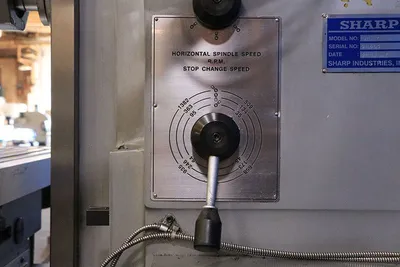

SPINDLE SPEEDS (24) ......................... 35 - 1382 RPM
NET WEIGHT .................................. 5200 LBS
APPROXIMATE SIZE ............................ 69" X 117" X 67.3"h
EQUIPPED WITH:

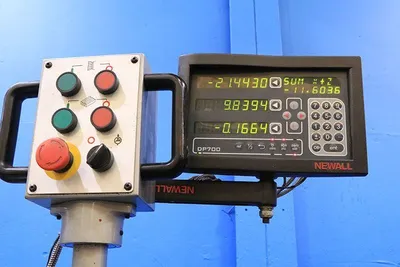

NEWALL THREE AXIS DIGITAL READOUT
RAPID TRAVERSE & FEEDS ALL DIRECTIONS
COOLANT SYSTEM

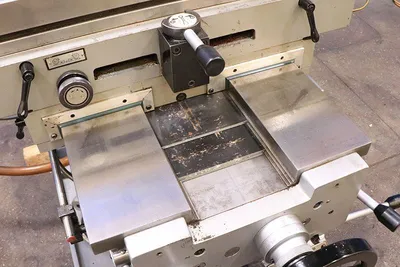

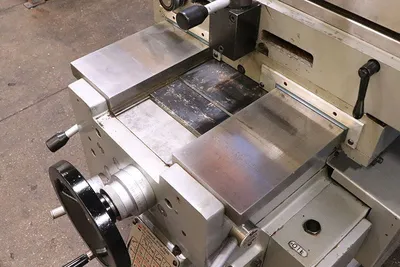

HARDENED & GROUND BOX WAYS
3 HORSE POWER FEED MOTOR
7.5 HORSE POWER SPINDLE DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
