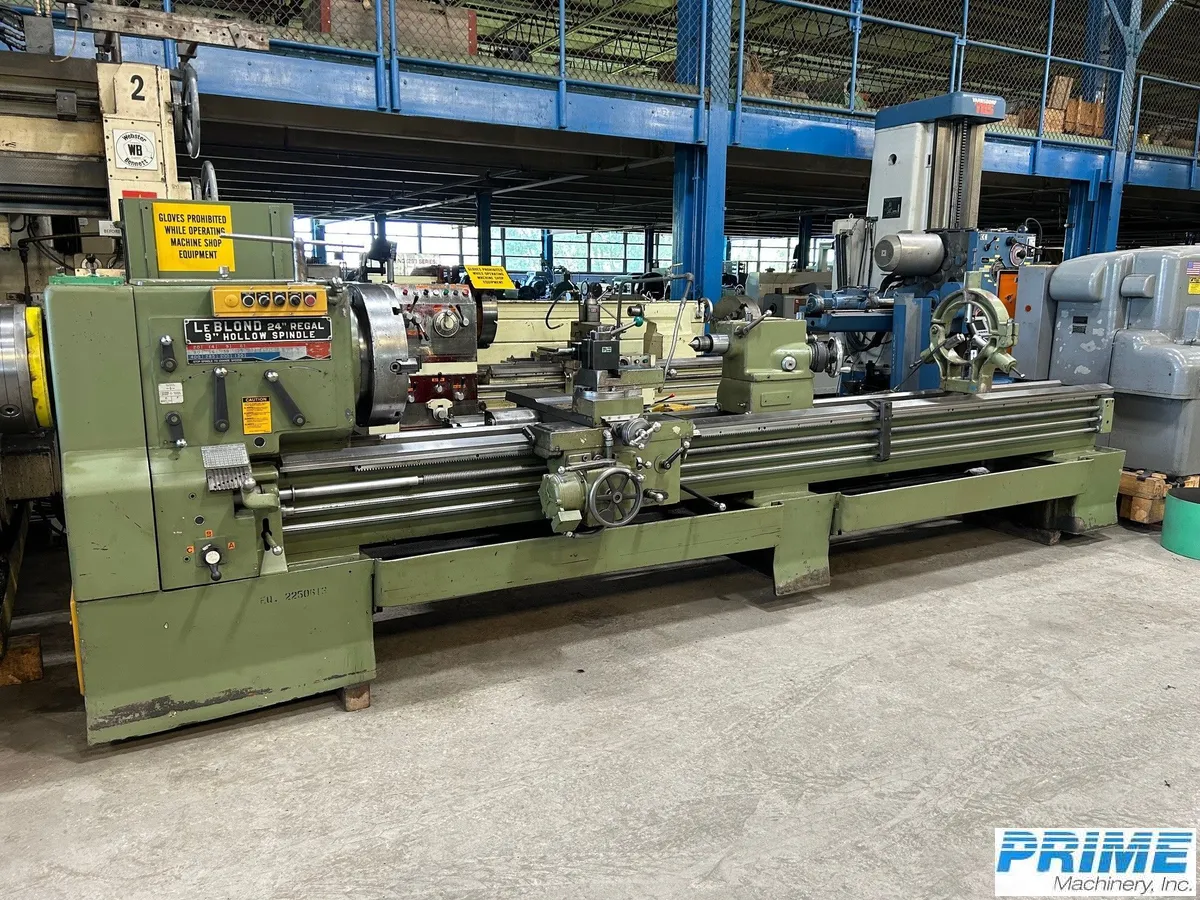

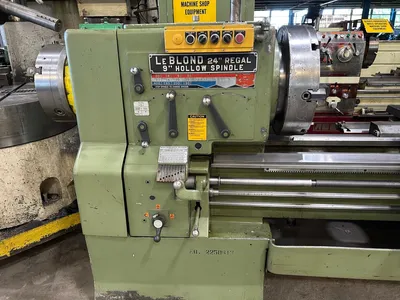

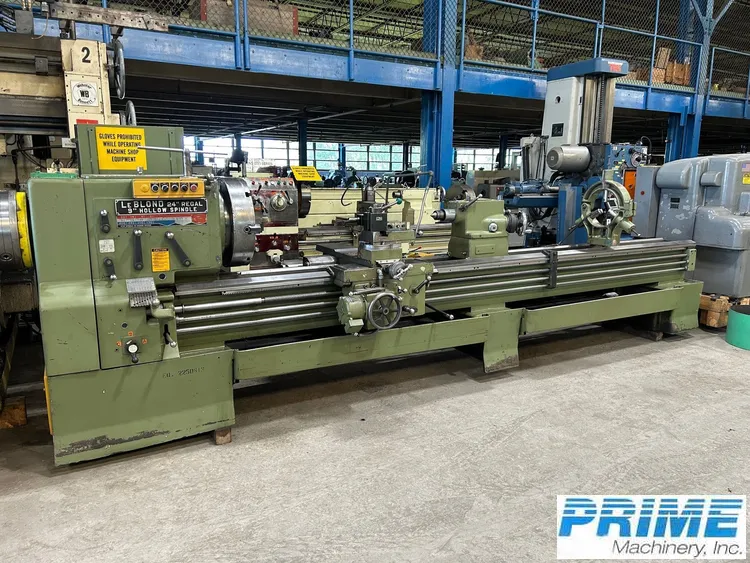

26" X 144" LEBLOND REGAL MODEL: 24" REGAL HOLLOW SPINDLE ENGING LATHE - MFG: 1973
ConditionUsed
1 available

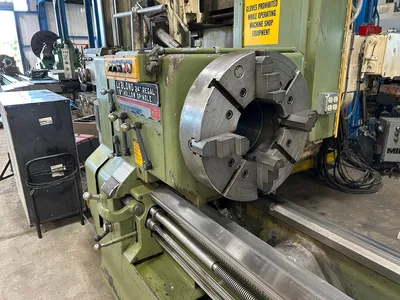

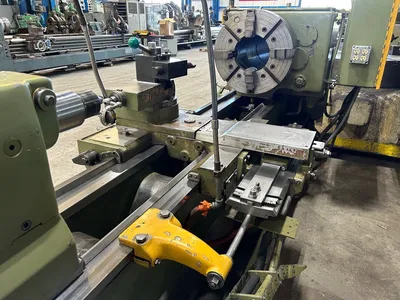

1973 LeBlond Regal 24 lathe, 26" swing, 144" centers, 6-400 RPM, quick change toolpost, 20" and 16" chucks, roller steady rest, hardened bedways, taper attachment. Robust and versatile machine for precise operations. Approx. 10,500 lbs.
SWING OVER BED AND CARRIAGE WINGS ... 26"
SWING OVER CROSS SLIDE ............. 18-1/4"
DISTANCE BETWEEN CENTERS ............ 144"
SPINDLE NOSE FLANGED ................ 15"
HOLE THRU SPINDLE ................... 9"
WIDTH OF BED ........................ 17"
SPINDLE SPEED RANGE (12) ............ 6 – 400 RPM
FEED RANGE (48) ..................... 0.0036" - .205" IPR
THREADING RANGE ENGLISH (48) ........ 2 – 112 TPI
TAILSTOCK SPINDLE TRAVEL ............ 7-1/2”
TAILSTOCK SPINDLE DIAMETER .......... 3-1/8”
TAILSTOCK SPINDLE TAPER ............. #5 MORSE
APPROX. WEIGHT ..................... 10,500 LBS
APPROX. DIMENSIONS .................. 220”L X 60”W X 56”H

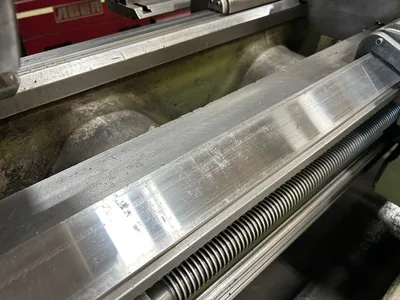

HARDENED AND GROUND BEDWAYS
TAPER TURNING ATTACHMENT

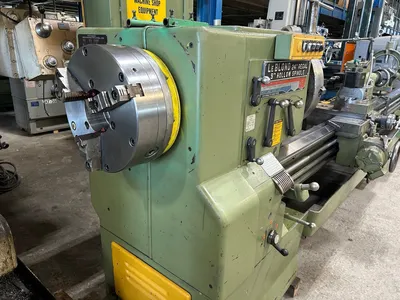

20" DIAMETER 3-JAW CHUCK
16" DIAMETER 3-JAW CHUCK WITH 9" HOLE THRU

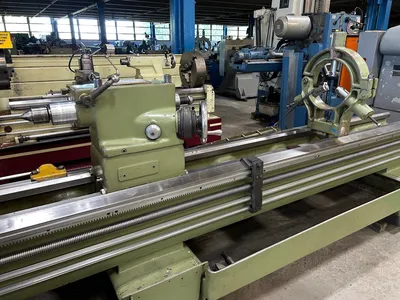

ROLLER TYPE STEADY REST

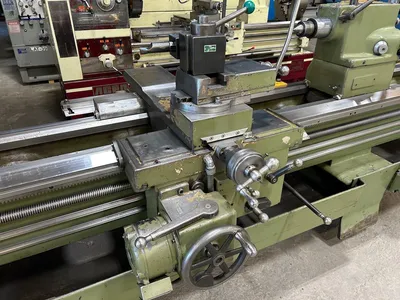

QUICK CHANGE TOOLPOST
THREAD DIAL INDICATOR
15 HORSE POWER MAIN MOTOR
