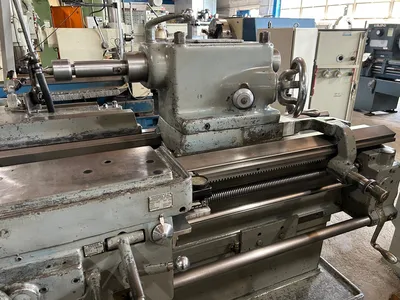

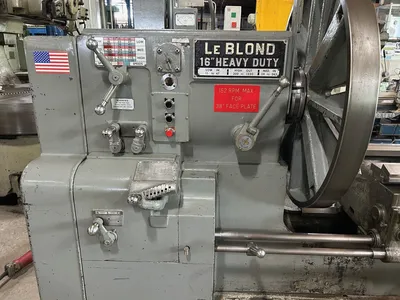

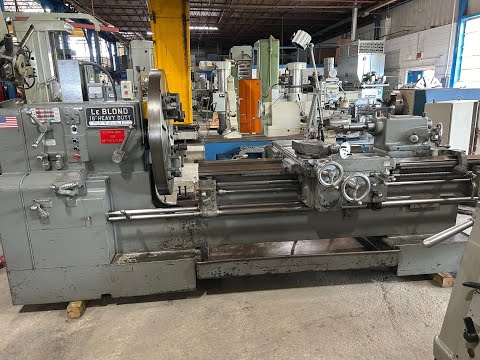

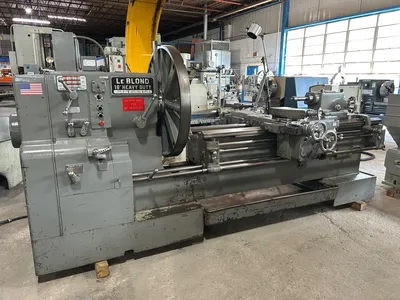

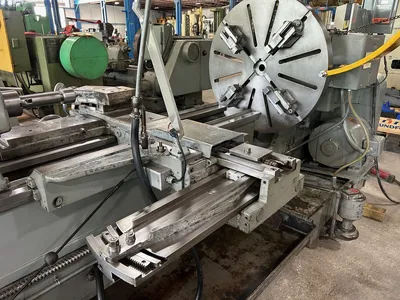

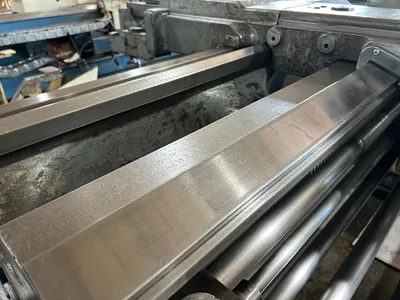

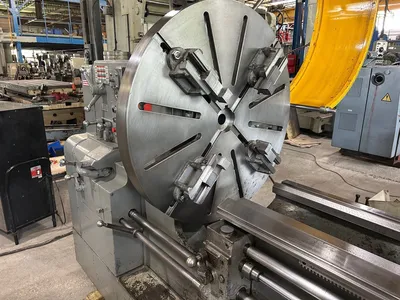

20"/46" X 72"/120" LEBLOND MODEL 16" HEAVY DUTY SLIDING BED GAP LATHE

SWING OVER BED AND CARRIAGE WINGS ...... 20-1/2"
SWING OVER CROSS SLIDE ................. 12-7/8"
SWING OVER GAP ......................... 46"
DISTANCE BETWEEN CENTERS, BED CLOSED ... 72"
DISTANCE BETWEEN CENTERS, BED OPENED ... 120"
SPINDLE SPEEDS RANGE ................... 11 TO 1330 R.P.M.
SPINDLE NOSE, TAPER KEY DRIVE, SIZE .... L-2
SPINDLE BORE ........................... 2-1/4"
HEADSTOCK & TAILSTOCK SPINDLE TAPER .... #4 MORSE
FEEDS, LONGITUDINAL (48) ............... .0011 - .250 I.P.R.
THREADING RANGE (48) ................... 2 - 120 T.P.I.
TAILSTOCK SPINDLE TRAVEL ............... 10"
APPROX FLOOR SPACE:
WITH BED CLOSED ................ 12'7" x 87" x 78"
WITH BED OPEN .................. 17' x 87" x 78"
APPROXIMATE WEIGHT ..................... 12,500 LBS
