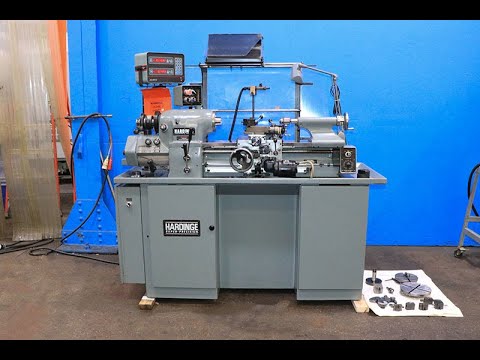

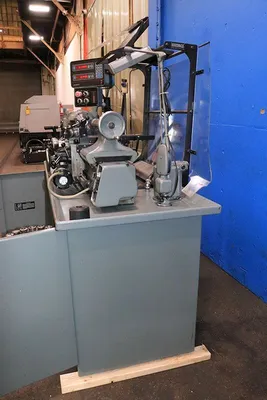

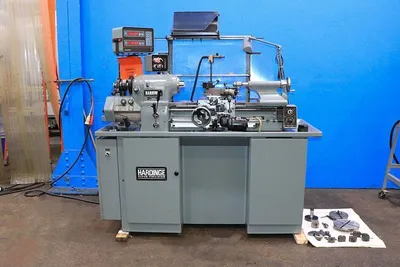

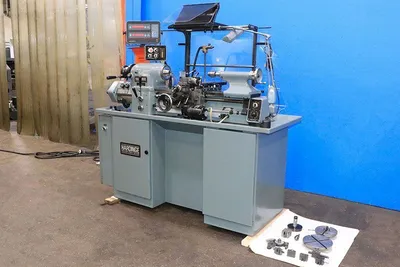

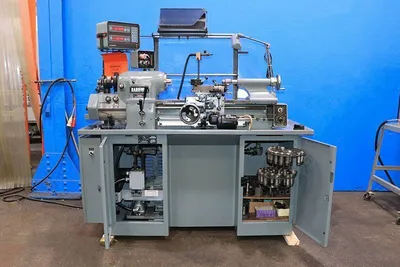

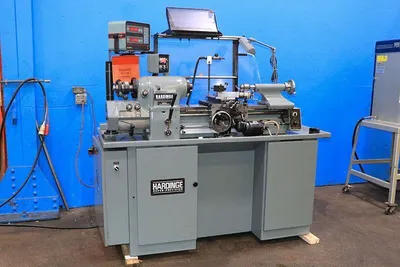

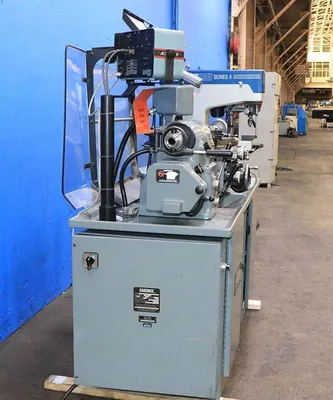

HARDINGE HLV-EM SUPER-PRECISON TOOLROOM LATHE - NEW: 1992

HARDINGE SUPER-PRECISON TOOLROOM LATHE
MODEL: HLV-EM, S/N: HLV-H-14060-T, NEW: 1992

SPECIFICATIONS:

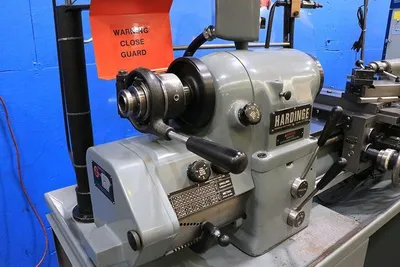

SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION
PRELOADED BALL BEARING

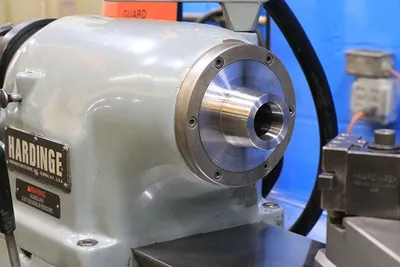

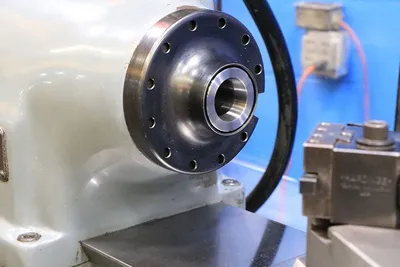

SPINDLE NOSE ..................... HARDINGE TAPERED

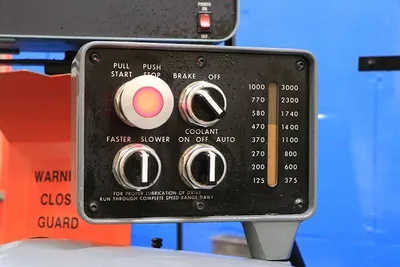

INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"

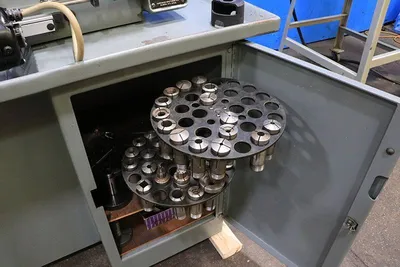

SPINDLE CAPACITY:
w/ROUND 5C COLLETS ........... 1-1/6
w/HEXAGON 5C COLLETS ......... 7/8"
w/SQUARE 5C COLLETS .......... 3/4"
w/STEP CHUCKS ................ 1-1/16" TO 6"
w/JAW CHUCKS ................. 5"
w/EXPANDING COLLETS .......... 3"
SWING OVER BED ................... 11"

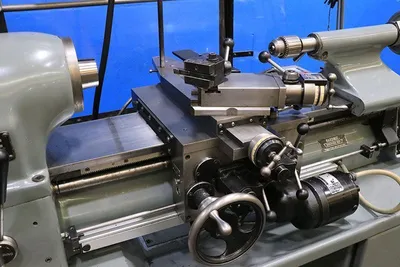

SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"

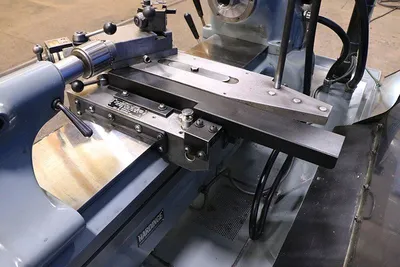

COMPOUND SLIDE TRAVEL ............ 3"

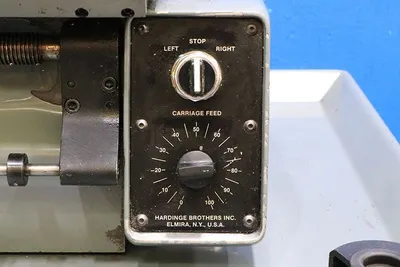

CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM

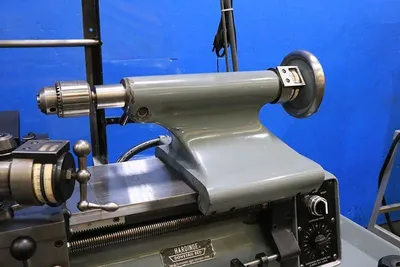

TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE .................. 11" TO 108" TPI
INCH THREADING RANGE ............. 11 - 108 T.P.I.
METRIC THREADING RANGE ........... 0.275 - 2.7 MM
APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"
APPROX. WEIGHT ................... 1,700 LBS.
