HYUNDAI WIA F-400VM CNC VERTICAL MACHINING CENTER - NEW: 2013
$26,500.00 USD
ConditionUsed
1 available

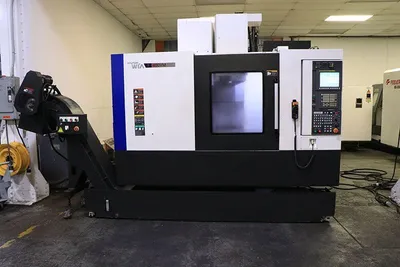

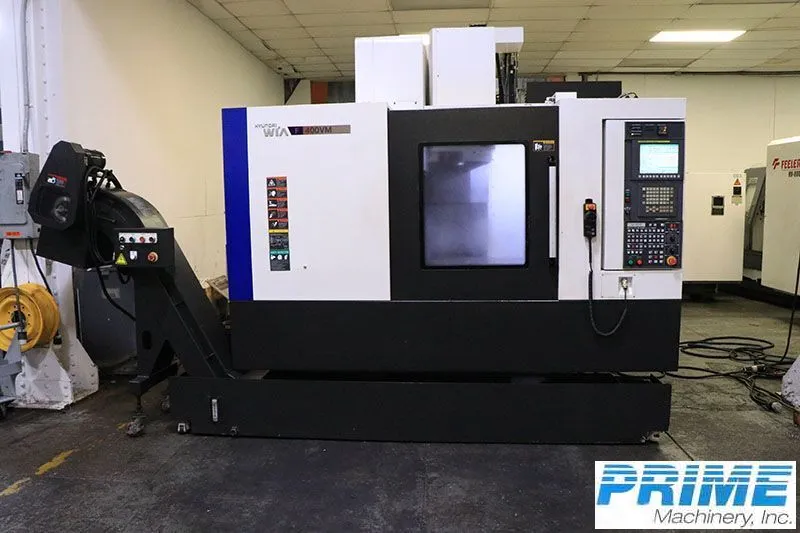

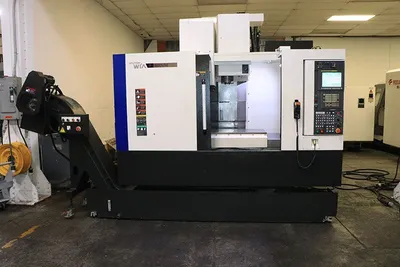

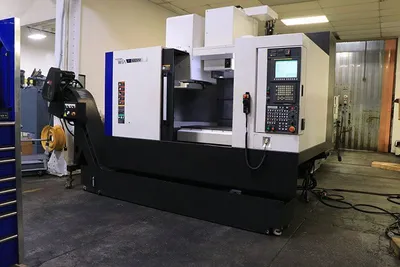

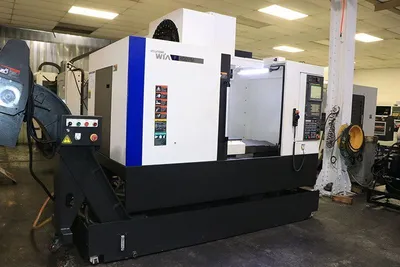

Hyundai WIA F-400VM CNC Vertical Machining Center, 2013 model. Offers 31.5" x 18.1" x 20.5" axis travel, CAT 40 spindle taper, 10,000 RPM, and 30-tool automatic changer. Equipped with FANUC i CNC control, coolant system, and chip conveyor. Ideal for precision work.
X-AXIS TRAVEL ......................... 31.5" / 800mm
Y-AXIS TRAVEL ......................... 18.1" / 460mm
Z-AXIS TRAVEL ......................... 20.5" / 520mm

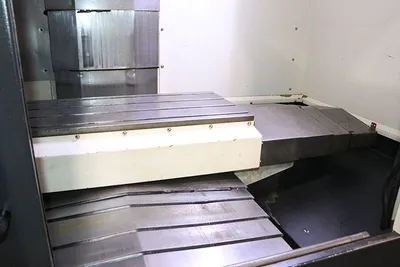

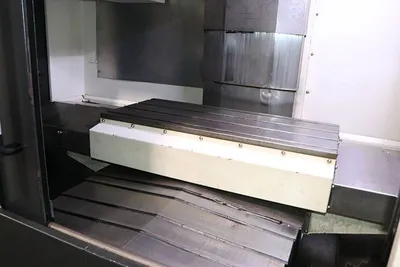

TABLE SIZE ............................ 39.4" x 18.1"
DISTANCE SPINDLE TO TABLE ............. 5.1" MIN / 25.6" MAX
MAX TABLE CAPACITY .................... 1,323 LBS
SPINDLE SPEEDS ........................ 10,000 RPM
SPINDLE TAPER ......................... CAT 40
RAPID TRAVERSE RATE (X & Y/Z) ......... 1,418 IPM
AUTOMATIC TOOL CHANGER POSITIONS ...... 30
SPINDLE MOTOR ......................... 20 HP
APPROXIMATE MACHINE WEIGHT ............ 11,500 LBS

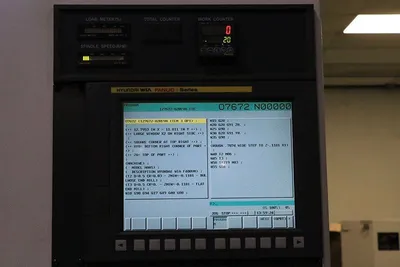

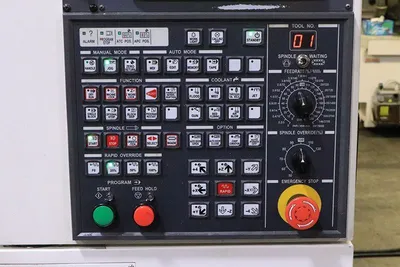

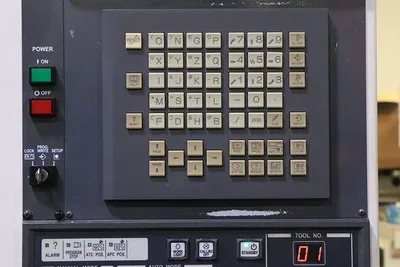

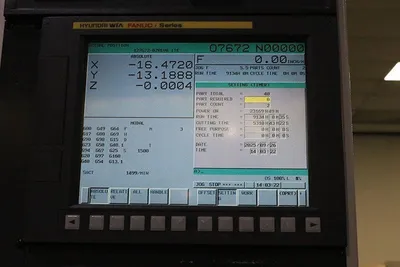

- FANUC i CNC CONTROL

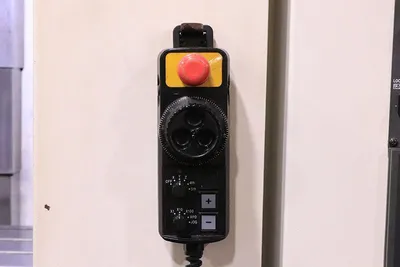

- REMOTE JOG HANDLE

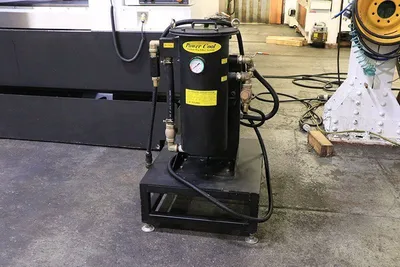

- COOLANT THROUGH SPINDLE
- COOLANT SYSTEM

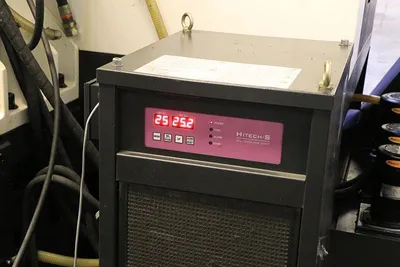

- OIL CHILLER

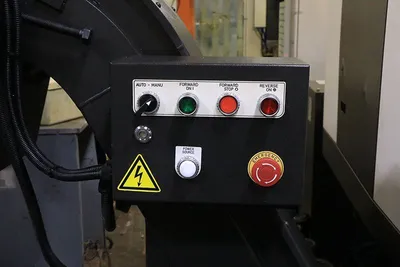

- CHIP CONVEYOR
- 20 HORSE POWER SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
