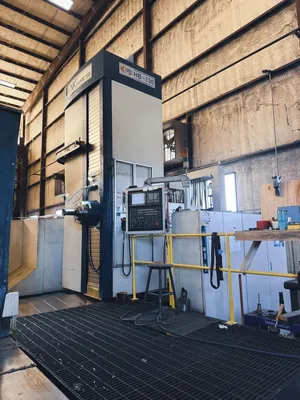

| Spindle Size | 5.1" | 129.54 mm |
| X-Horiz Tvl of Table | 118" | 2,997.2 mm |
| Y-Vert Tvl of Head | 90" | 2,286 mm |
| Power | 35 hp | 26.1 kW |
| RPM | 2,500 RPM | 2,500 RPM |
| Table-W | 71" | 1,803.4 mm |
| Table-L | 63" | 1,600.2 mm |
| Spindle Tvl. | 27.5 mm | 1.0827" |

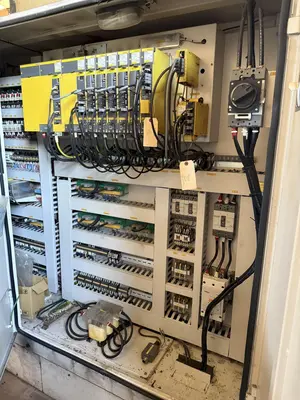

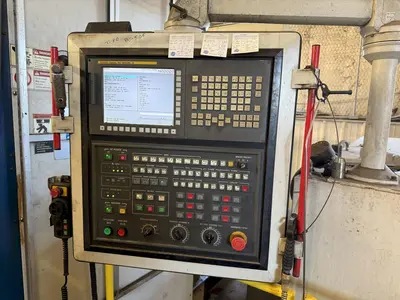

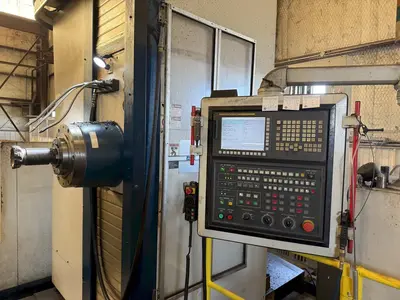

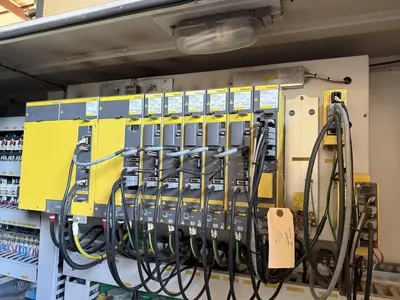

| Control | CNC (FANUC 31) | CNC (FANUC 31) |
| Dimensions | 285" x 307" x 197" H | 285" x 307" x 197" H |
| Weight | 96,000 Lbs | 96,000 Lbs |
Travels:
X-Axis 118", Y-Axis 90", Z-Axis 63", W-Axis 27.5"

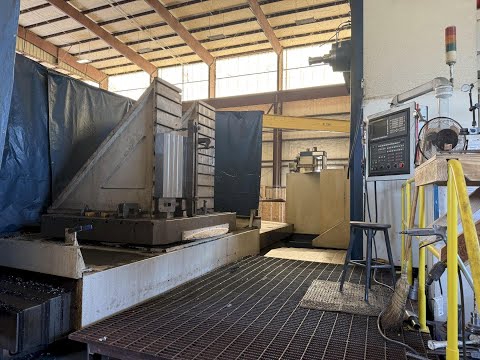

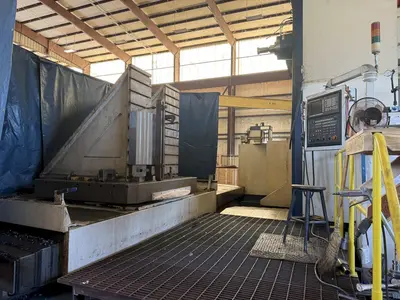

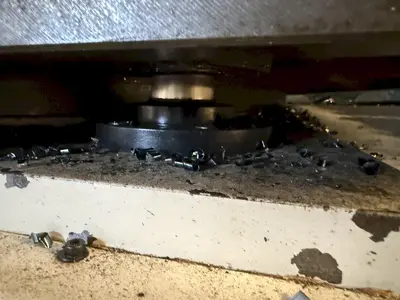

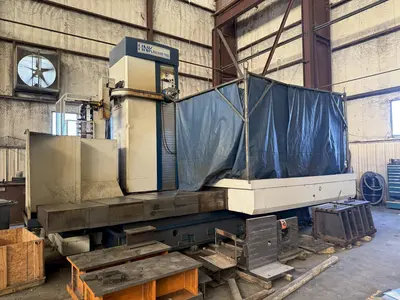

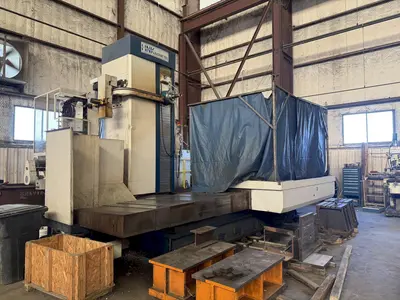

Rotary Table:
Size: 63" x 70"
Table Indexing is 0.001 Degree with shot pins for 90 Degree Lock Down
Table Weight Capacity, 33,000 Lbs
Spindle:
Spindle Taper 50
Spindle Speeds 5 to 2,500 in 3 Gear Ranges

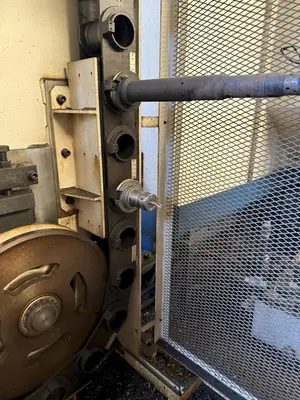

Automatic Tool Changer
Positions 60
EQUIPPED WITH:
RENISHAW TOOL TOUCH PROBE
RENISHAW PART PROBE

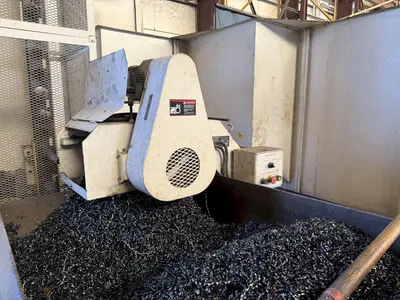

CHIP CONVEYOR

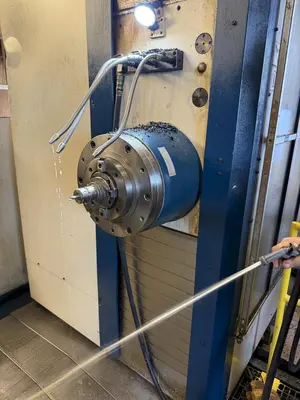

COOLANT THROUGH THE SPINDLE
TABLE GUARDS (CURRENTLY NOT INSTALLED)

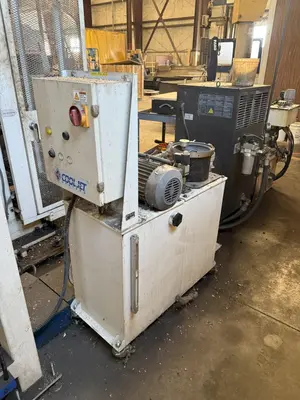

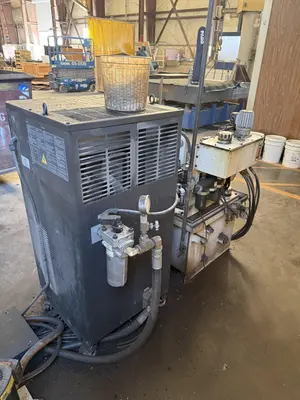

SPINDLE OIL CHILLER
HEIDENHAIN SCALES
MACHINE IS PRICED FOR QUICK REMOVAL
