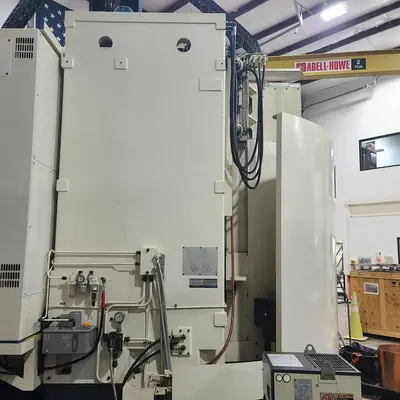

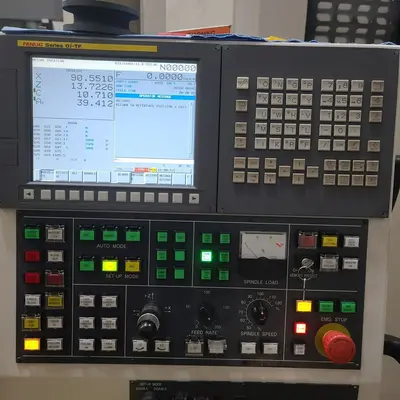

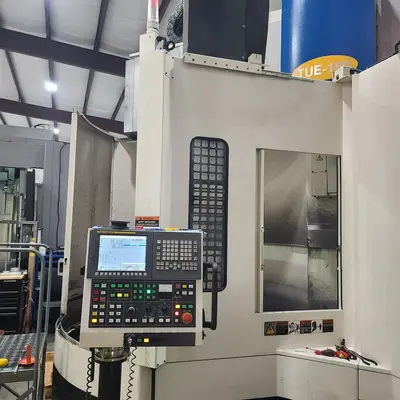

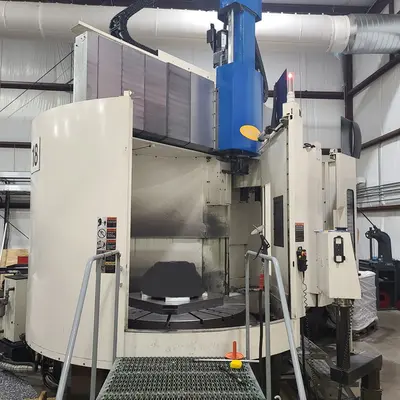

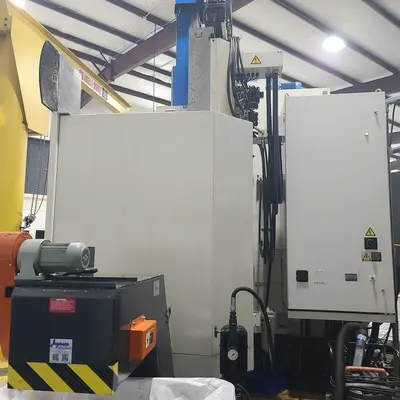

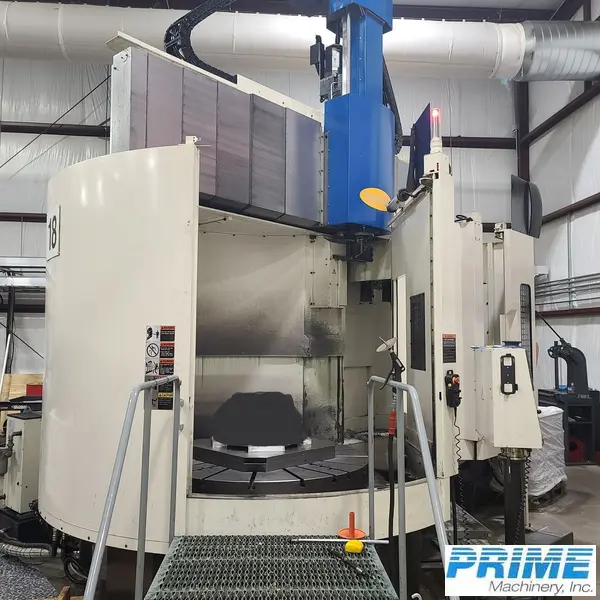

Toshiba TUE-150S CNC Vertical Boring Mill with Live Milling

Toshiba TUE-150S Live Milling CNC Vertical Boring Mill
New: 2021

SPECIFICATIONS:

Machining diameter 78.4"
Table diameter 57.1"
Maximum machining height (w/ tool) 61.02"
Maximum distance under rail 67.72"
Maximum workpiece weight 17,625 LBS
Maximum ram travel (Z-Axis) 35.9"
Horizontal travel (X Axis) 47.24”
Main drive motor capacity 60 HP
Table cutting speed range (2 ranges) 2-400 RPM
Ram size 9.8" x 9.8"
Cross rail travel 35.9”
Milling spindle taper #50
Milling spindle speed 15- 3000 RPM
C-Axis 0.001 Deg

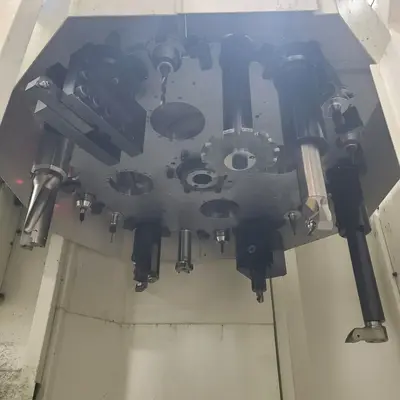

Number of tools in ATC 18
Rapid feed rate (X & Z) 590 IPM
Maximum cutting feed rate 236 IPM
Machine Dimensions (W x D) 204” x 161”
Machine Height(w/cross rail in top pos) 214”
Machine weight 37,500 lbs.
Power Requirements 220 V / 3 Ph / 60 Hz.
