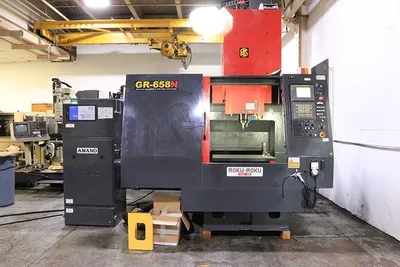

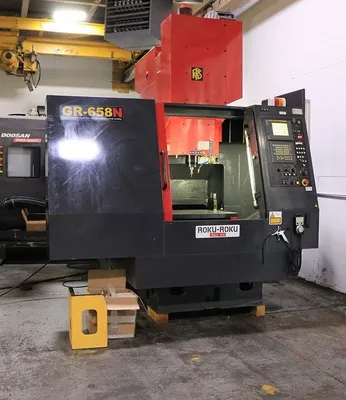

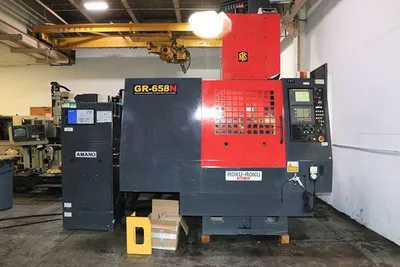

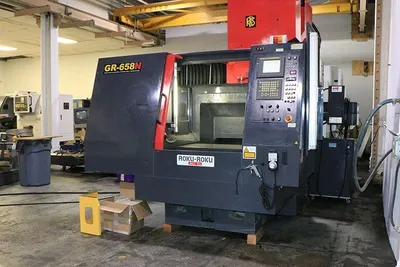

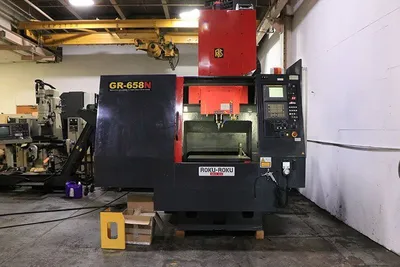

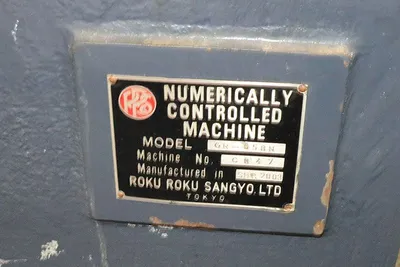

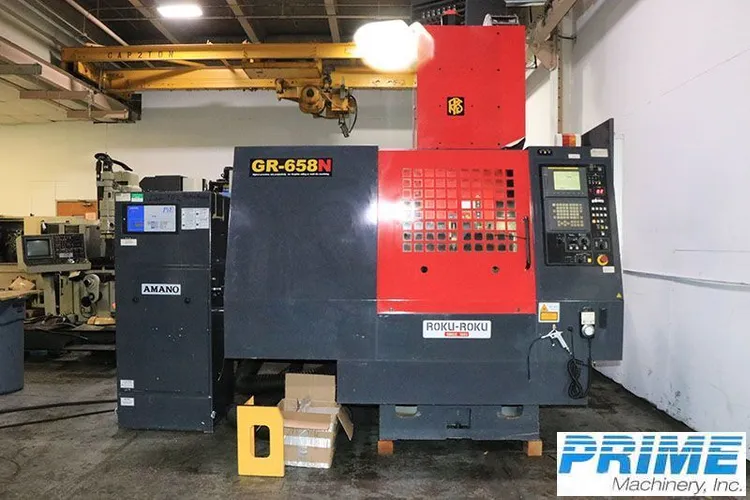

ROKU ROKU MODEL: GR-658N HIGH PRECISION HIGH SPEED GRAPHITE MILLING MACHINE - MFG: 2004
ConditionUsed
1 available

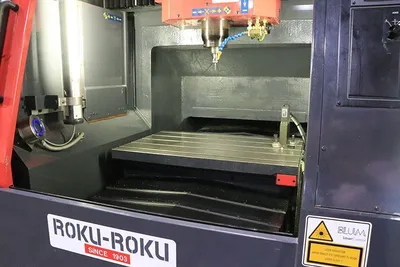

ROKU ROKU GR-658N high precision graphite milling machine. Features include 32,000 RPM spindle, 12 ATC tool capacity, and FANUC 16i-M control. Ideal for cutting aluminum & plastic. Located in NJ. Contact for details.
X-AXIS TRAVEL .................... 23.62" 600mm
Y-AXIS TRAVEL .................... 19.685" 500mm
Z-AXIS TRAVEL .................... 15.748" 400mm
DISTANCE SPINDLE NOSE TO TABLE ... 7.87" - 23.62
200mm - 600mm

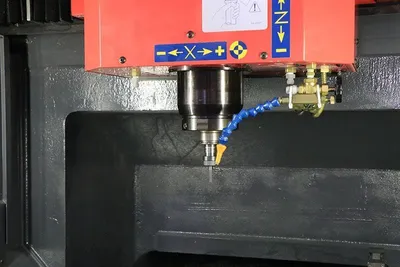

SPINDLE SPEED .................... 32,000 RPM
SPINDLE MOTOR .................... 8 HP
SPINDLE TAPER .................... HSK E40
TOOL CAPACITY .................... 12 ATC
RAPID TRAVERSE RATES ............. 787 IPM

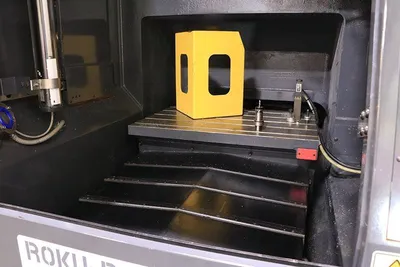

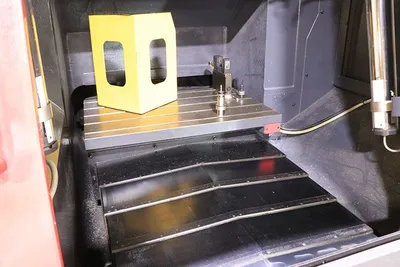

TABLE SIZE ....................... 19.685" X 29.53"
TABLE LOAD CAPACITY .............. 1500 LBS
MACHINE DIMENSIONS: .............. 90" x 93" x 114"H
MACHINE WEIGHT: .................. 8,000 LBS

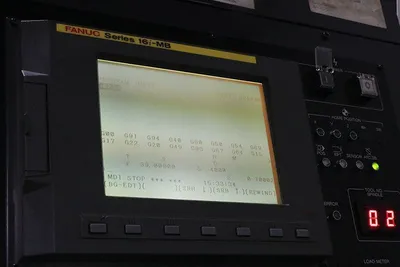

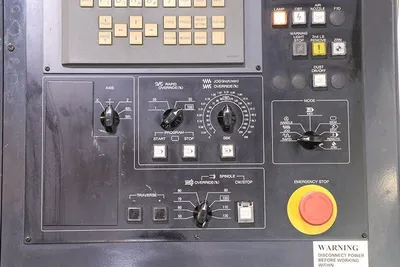

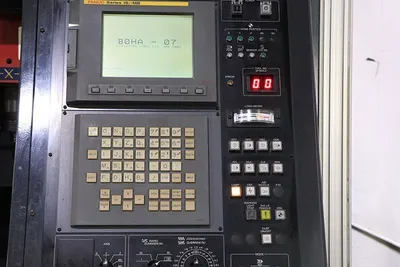

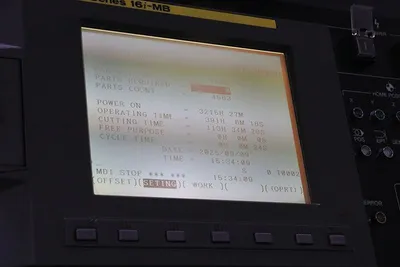

FANUC MODEL: 16i-M CONTROL

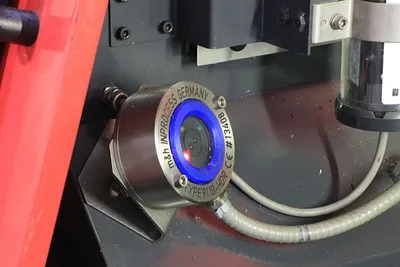

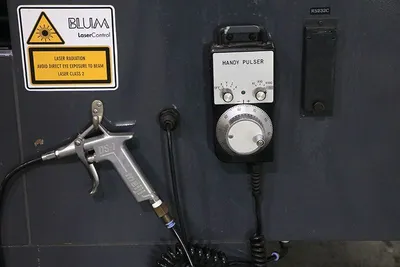

BLUM PROBE SYSTEM

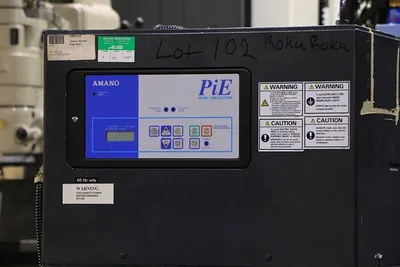

AMONO MODEL: PiE-30M DUST COLLECTOR
12 TOOL CAPACITY TOOL CHANGER
THIS MACHINE CAME OUT OF A FORTUNE 500 TOOLROOM
& WAS USED TO CUT ALUMINUM & PLASTIC
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
