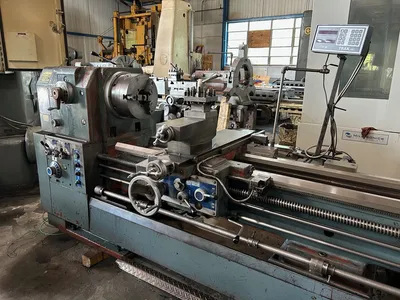

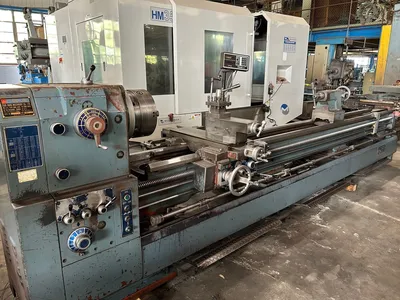

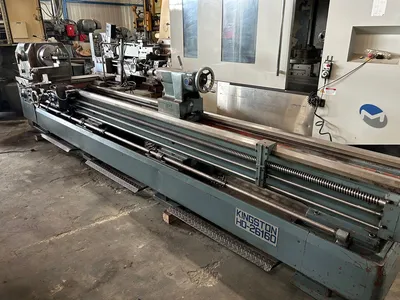

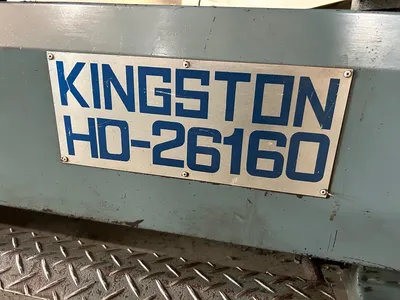

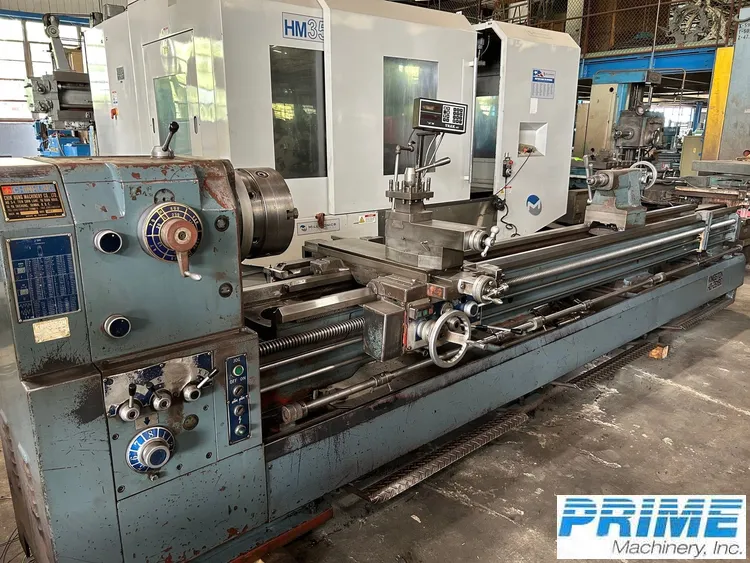

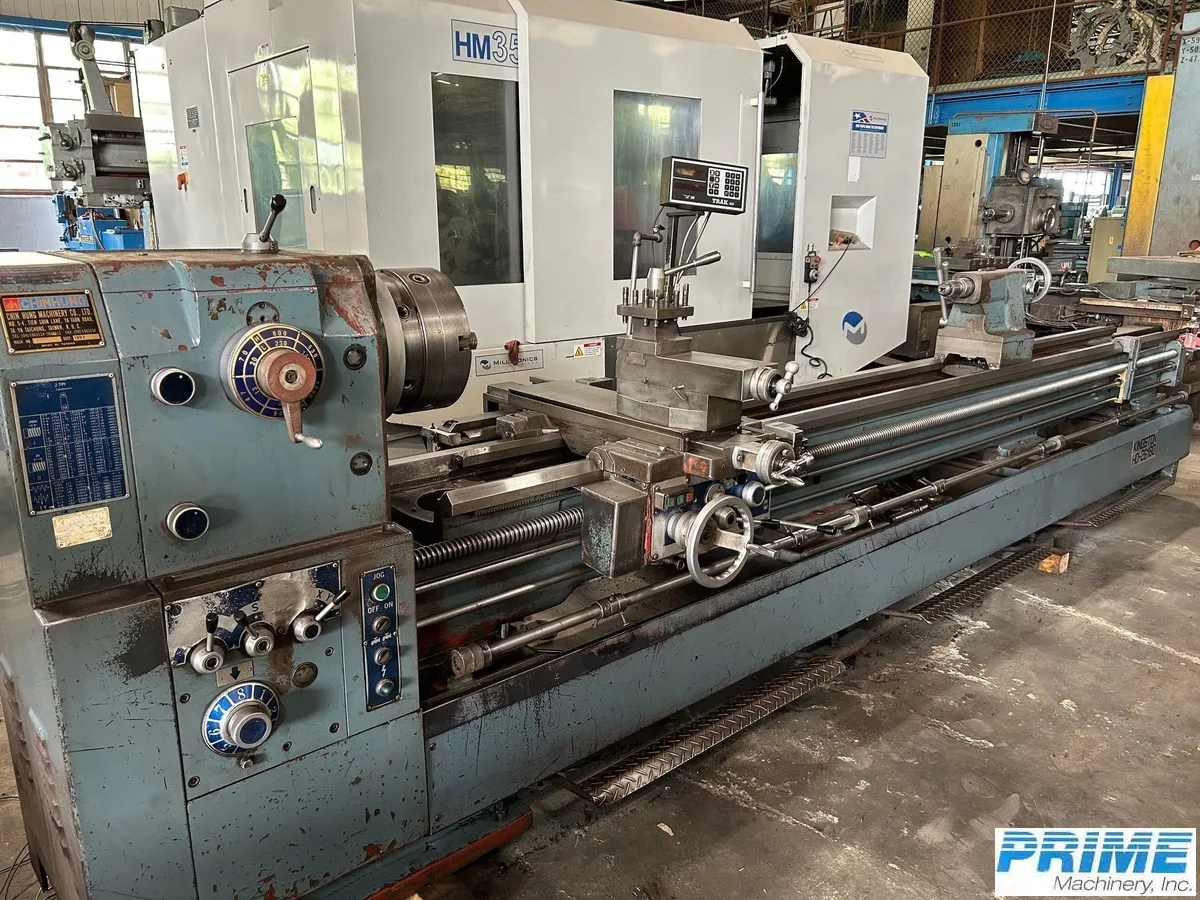

26"/35" X 160" KINGSTON MODEL: HD26160 GAP BED ENGINE LATHE - NEW: 1997
$29,500.00 USD
ConditionUsed
1 available
1997 KINGSTON HD-26160 Lathe available: 26"/35" swing and 160" centers, equipped with TRAK digital readout, chucks, steady rests, and more. Features include a coolant system, rapid traverse, and a 10 HP motor. Inquire now to learn more.
SWING OVER BED........................ 26"
SWING OVER CROSS SLIDE................ 17-1/2"
SWING IN REMOVABLE GAP................ 35-1/8"
SPINDLE NOSE CAMLOCK.................. D1-11"
HOLE THROUGH SPINDLE.................. 4-1/16"
DISTANCE BETWEEN CENTERS.............. 160"

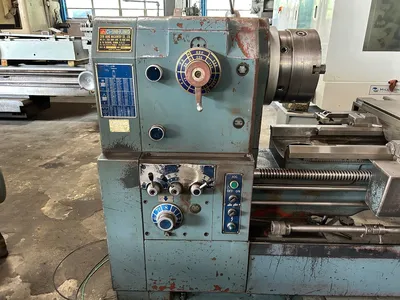

SPINDLE SPEED RANGE (12).............. 13 - 1200 RPM
LONGITUDINAL FEED RANGE ............. .0012" - .039" IPR
CROSS FEEDS HALF OF LONGITUDINAL SETTING
ENGLISH THREADING RANGE .............. 1 - 42 TPI
METRIC THREADING RANGE ............... .2 - 14 M
TAILSTOCK SPINDLE DIAMETER............ 2-15/16"
TAILSTOCK SPINDLE TRAVEL.............. 7"
TAILSTOCK SPINDLE TAPER............... #5MT
APPROXIMATE FLOOR SPACE............... 55"W x 217"L
APPROXIMATE WEIGHT.................... 8,500 LBS.
- TRAK TWO AXIS DIGITAL READOUT
- TAPER TURNING ATTACHMENT
- 4-JAW CHUCK
- 3-JAW CHUCK
- 16" CAPACITY ROLLER TYPE STEADY REST
- 10" CAPACITY ROLLER TYPE STEADY REST
- FOURWAY TOOLPOST
- 3/4" CAPACITY DRILL CHUCK
- THREAD DIAL INDICATOR

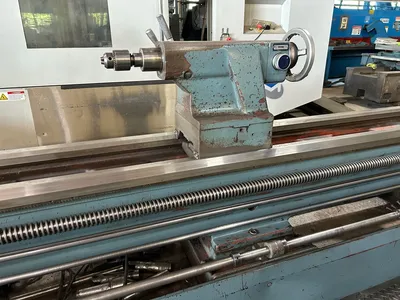

- TWO SPEED TAILSTOCK

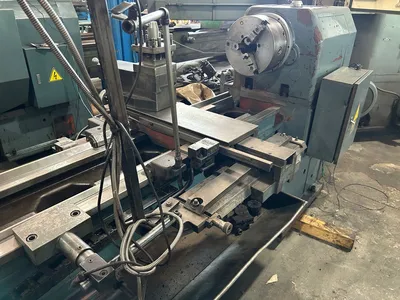

- COOLANT SYSTEM WITH REMOVEABLE CHIP PANS
- FOOT BRAKE
- RAPID TRAVERSE

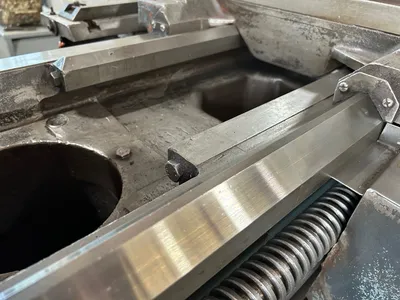

- HARDENED & GROUND BEDWAYS
- 10 HORSE POWER MAIN DRIVE MOTOR
INSPECT UNDER POWER IN A MIDWEST WAREHOUSE
