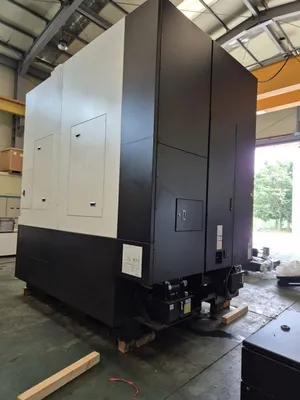

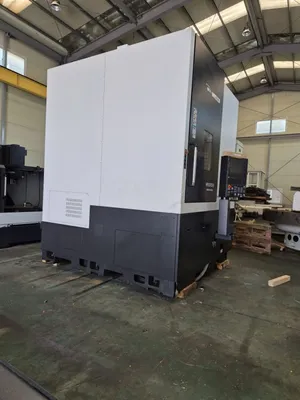

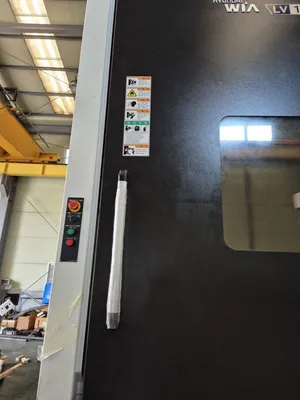

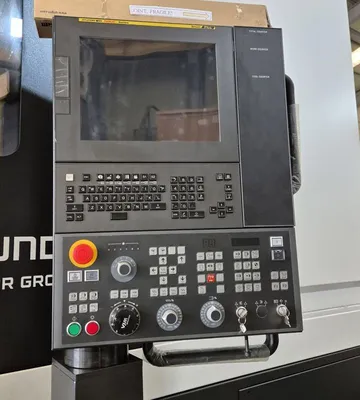

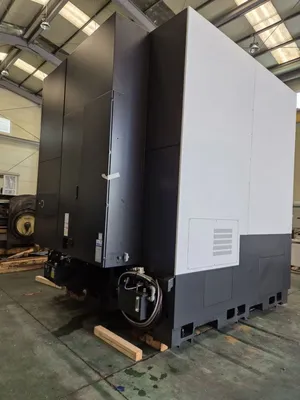

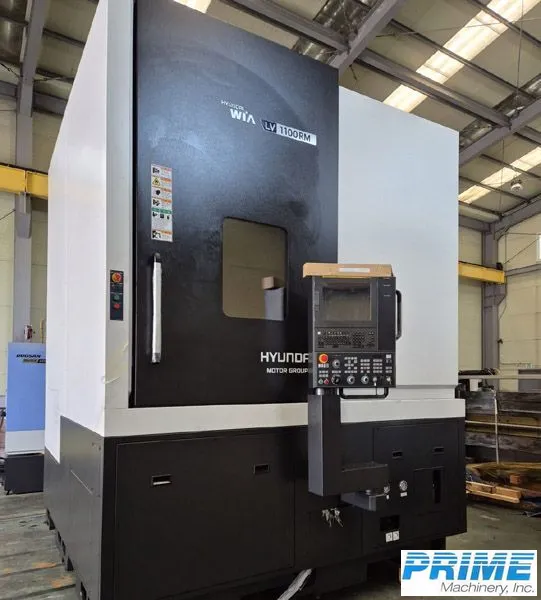

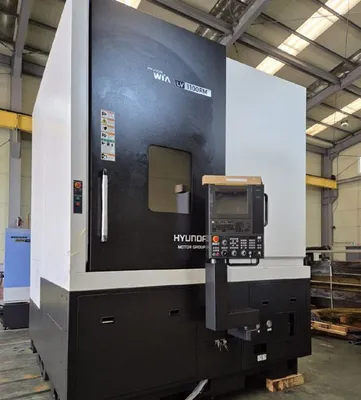

HYUNDAI WIA LV1100RM CNC VERTICAL TURNING LATHE WITH MILLING - NEW: 2024

SWING OVER THE BED..................................... 53.3"
SWING OVER CARRIAGE.................................... 49.2"
MAX TURNING DIAMETER................................... 45.7"
MAX TURNING LENGTH..................................... 39.4"

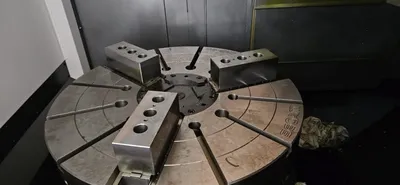

CHUCK SIZE............................................. 40"
SPINDLE BORE........................................... 4.3"
SPINDLE SPEED.......................................... 4.3"
MOTOR..................................................(10MIN/30MIN/CONT) 87/74/60 HP
TORQUE.................................................(10MIN/30MIN/CONT) 5,657/4,786.8/3,916.5 1BF/FT
SPINDLE TYPE........................................... GEAR BOX
SPINDLE NOSE........................................... 15" FLAT
C-AXIS INDEXING........................................ 0.001 DEGREE
TRAVEL (X/Z)........................................... 24.4"/39.4"
RAPID TRAVERSE RATE (X/Z).............................. 945/945 IPM
SLIDE TYPE............................................. BOX GUIDE

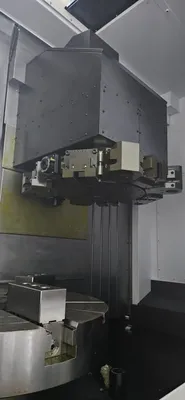

TURRET TOOLS........................................... 12
INDEXING TIME.......................................... SEC/STEP 0.6
LIVE TOOL MOTOR........................................ 15/10 HP
MILLING TOOL SPEED..................................... 3,000 RPM
TORQUE (MAX/CONT)...................................... 103.3/70.4 LBF-FT
COLLET SIZE............................................ 1.3" (ER50)
TYPE................................................... BMT85

FLOOR SPACE............................................ 115" X 170.3" (EXCLUDING CHIP CONVEYIOR)
HEIGHT................................................. 148.7"
WEIGHT................................................. 48,502 LBS
