Used 2012 MAZAK CYBERTECH TURN 4500 | LATHES, UNIVERSAL, N/C & CNC
ConditionUsed
1 available
Mazak Cybertech Turn 4500 available. Heavy-duty CNC lathe with a max swing of 33.8". Features include 7.28" spindle bore, 12-position turret, and MATRIX NEXUS control. Comes with tailstock, chip conveyor, and more.

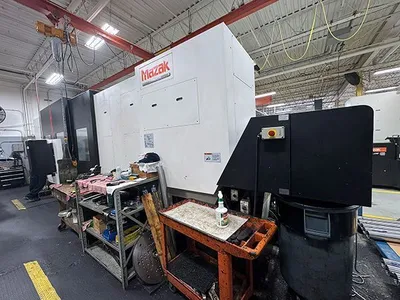

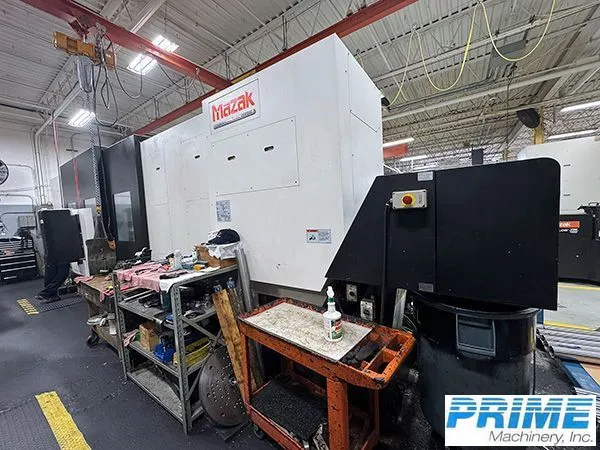

2012 Mazak Cybertech Turn 4500
Heavy-Duty CNC Lathe
Specifications (subject to buyer verification):
Maximum Swing Diameter............................ 33.8"
Swing Over Carriage................................... 27.5"
Swing Over Carriage with Steady Rest.......... 20.87"
Max. Cutting Diameter................................ 31.9"
Max. Cutting Length: 120".................................................... 120"
MAIN SPINDLE SPECIFICATIONS - OPTIONAL 7.28" SPINDLE BORE:
Spindle Nose.............................................. A1-15
**Spindle Bore.............................................. 7.28"
**Bar Capacity……………………………. 4.62”
Spindle Speed/Range.................................. 1,600 RPM/2
Spindle Horsepower (Cont/30 mins.)............. 40/50 HP (AC)
Spindle Torque (30 min.)............................. 3,320 ft-lbs
TURRET AND TOOLING SPECIFICATIONS
Type of Turret............................................ Drum
Number of Tools......................................... 12 Bolt On
Tool Size:
Turning & Facing...................................... 1.25"x1.25"x6"L
Boring Bar Maximum Diameter................... 2"
Turret Index Time (Sec)................................ 0.4 sec/1 step
AXIS TRAVELS
Travel X-Axis .............................................. 21.25"
Travel Z-Axis: 120"........................................................ 123.23"
AXIS THRUST FORCE (Cont/180% Duty)
X-Axis ......................................................... 5,842/11,684 lbs
Z-Axis.......................................................... 5,181/9,568 lbs
AXIS RAPID RATES:
X-Axis......................................................... 945 IPM
Z-Axis......................................................... 1181 IPM
SERVO DRIVEN TAILSTOCK SPECIFICATIONS (Universal):
Spindle Center ........................................... MT#5
Maximum Spindle Thrust............................... 5,624 lbs
Body Travel Rapid Rate................................ 236 IPM
Tailstock Body Travel: 120" Universal...................................... 120"
GENERAL SPECIFICATIONS:
Floor Space: 120" Universal ................ 98" x 283.4"
Machine Height.................................. 110.3"
Total Power Required (Machine Only)........... 76.38 KVA
NOTE: Actual Machine Main Transformer KVA Rating Will Be Greater.
Air Requirements....................................... 71 PSI / 3.5 CFM
Total Weight: 120" Universal...................................... 43,900 lbs
Equipped With (subject to buyer verification):
MATRIX NEXUS CONTROL
Long Boring Bar Stocker
Automatic Tailstock
EIA/ISO Code Input Function
Background Tool Path Check

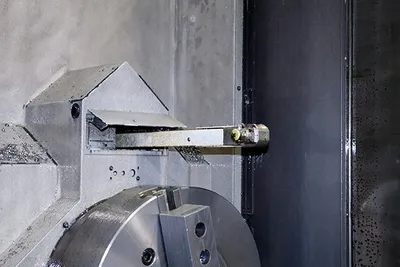

Automatic Tool Eye

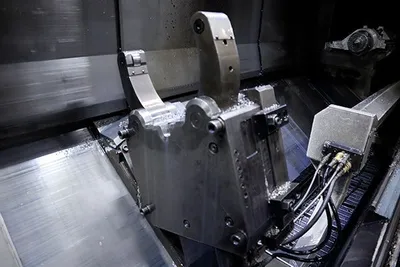

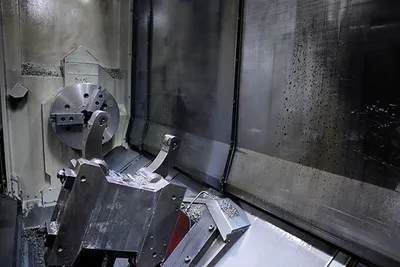

SMW AutoBlock Hydraulic Steady Rest

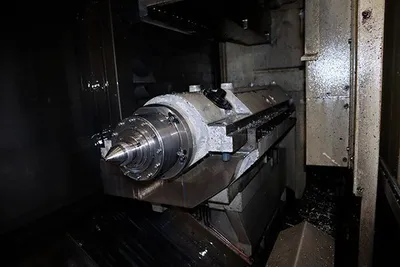

TAILSTOCK
CHIP CONVEYOR
OIL CHILLER

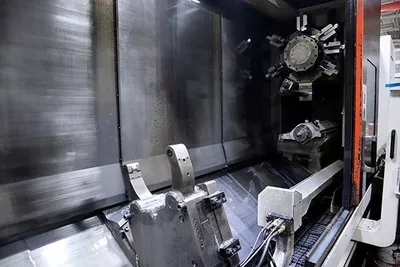

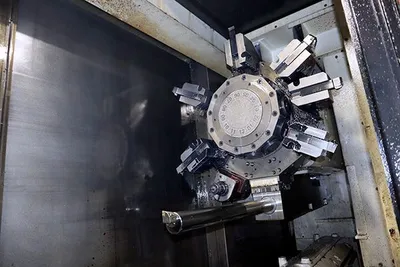

12 POSITION TURRET
Relocation Code
HIGH PRESSURE PUMP
REMOTE JOG HANDLE
EIA SPIRAL & EIA 3D COMP
ROTATION WITH GEOMETRIC & SCALING EXT DATA I/O
THREAD & INVERSE TIME
AUTO TLM WITH POLAR COORDINATES INPUT
COMPARISON STOP & G54.1 600 VARIABLE OFFSETS
EIA HELICAL TAP CYCLE & EIA PATTERN CYCLE
TILTED WORK PLANE

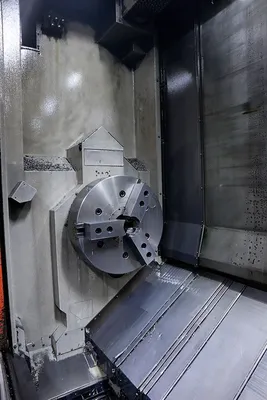

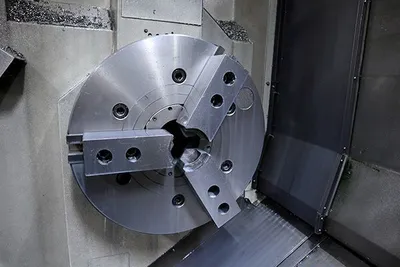

**21” KITAGAWA B-21A1515 CHUCK with Kitagawa F2511HS15ACylinder (4.62” Dia. Thru Hole)
All specifications and accessories are assumed to be correct but must be confirmed by the purchasing entity.
Two machines available
