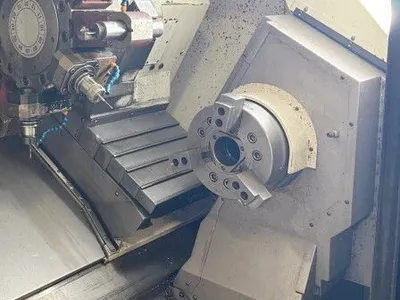

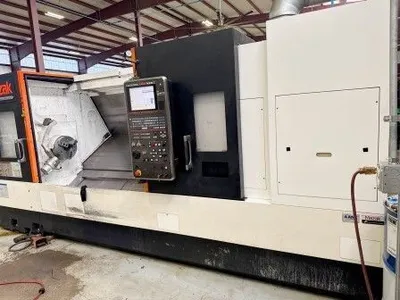

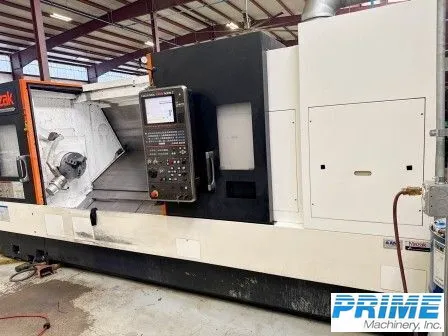

Used 2014 MAZAK QTN-350MSY | LATHES, UNIVERSAL, N/C & CNC

Main Spindle Chuck Size………………………………… 12”
Maximum Swing…………………………………………………. 29.5”
Standard Machining Diameter……………………........... 13.2”
Maximum Machining Diameter……………………….….. 16.5”
Bar Work Capacity………………………………………………. 4.02”
Max Support Weight (including chuck)………………... 1,433 LBS (main) / 881 LBS (2nd)

Main Spindle:
Spindle Speed……………………………………………………… 35 – 3,300 RPM
Spindle Nose……………………………………………………….. A2-11
Spindle Through-hole Diameter…………………………… 4.41”
Spindle Motor (30 min/Cont)..…………………………….. 40/30 HP
Spindle Torque……………………………………………………. 596 FT/LBS

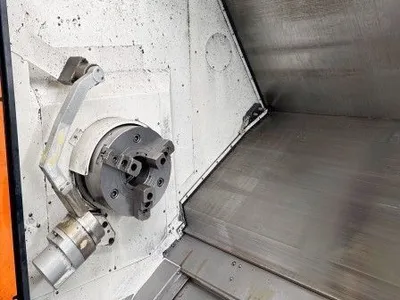

Secondary Spindle:
Spindle Speed……………………………………………………… 35 – 4,000 RPM
Spindle Nose……………………………………………………….. A2-8
Motor Output …………….………………………………………. 25 HP

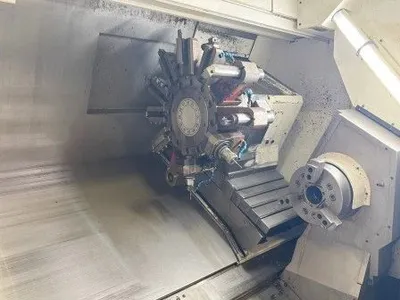

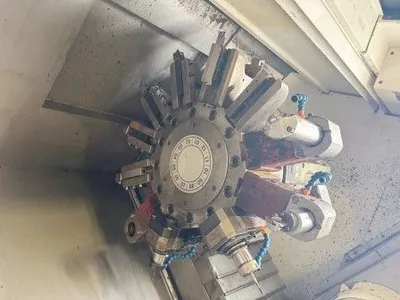

Number of Tools…………………………………………………. 12
Tool Size Turning (Outside/Inside)…………..…………… 1” / 2”
Indexing Time (next/opposite)…………………………….. 0.25/0.8 sec

Mill Spindle Speed……………………………………………….. 4,000 RPM
Milling Motor Output………………………………………….. 10 HP
Maximum Torque of Milling Spindle…………………… 70 FT/LBS

Travel X…………….……………………………………………….. 10.75”
Travel Y……………….…………………………………………….. 4”
Travel Z (60”)……….………….………………………….. 63.19””
Travel W (60”)…………………………………………….. 62.402”
Rapid Traverse (X/Y/Z/W)…………………………………… 1181 IPM
Machine Height………………………………………………….. 85.4”
Machine Width………………………………………………….. 95.3”
Machine Length (60”)…………………………………. 220.5”
Machine Weight (60”)………………………..………. 29,000 LBS
