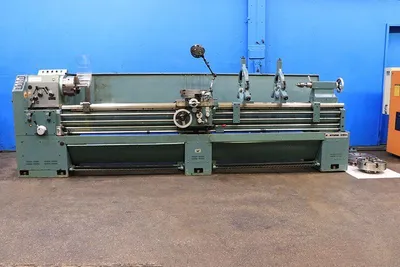

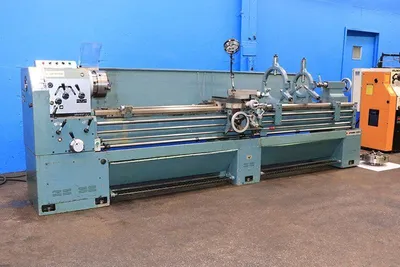

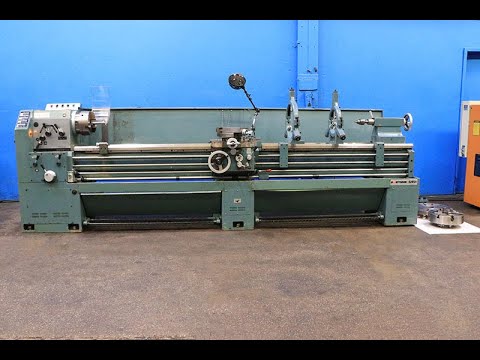

20"/27" x 120" FORTUNE MODEL: S20120 GAP BED LATHE - NEW: 1995
$19,500.00 USD
ConditionUsed
1 available

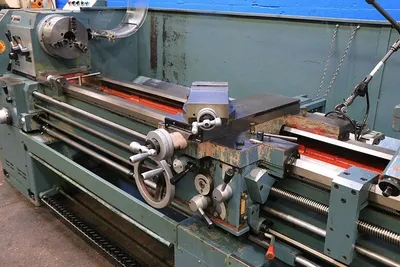

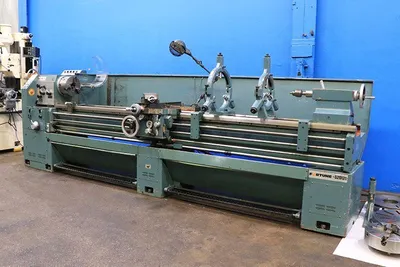

20"/27" x 120" Fortune S20120 Gap Bed Lathe, used, 1995. Max swing 27". 120" center distance. 31-1500 RPM. Equipped with inch & metric threading, taper turning, 4/3-jaw chucks, and more. Robust design, ideal for demanding applications.
SWING OVER BED WAYS ................. 20"
SWING IN REMOVABLE GAP .............. 27"
SWING OVER CROSS SLIDE .............. 11-1/4"
DISTANCE BETWEEN CENTERS ............ 120"
WIDTH OF BED ........................ 14-1/8"

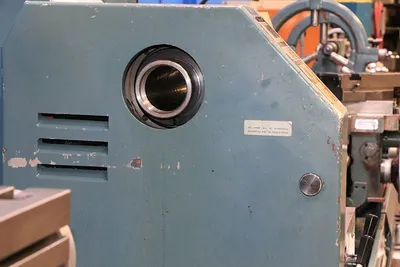

HOLE THRU SPINDLE ................... 3-1/8"
SPINDLE NOSE ........................ D1-8" CAMLOCK

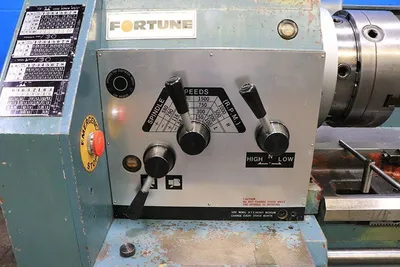

SPINDLE SPEED RANGE (16) ............ 31 - 1500 RPM
LONGITUDINAL FEED RANGE ............. .0033" - .0233"
CROSS FEED RANGE .................... .0016" - .0108"

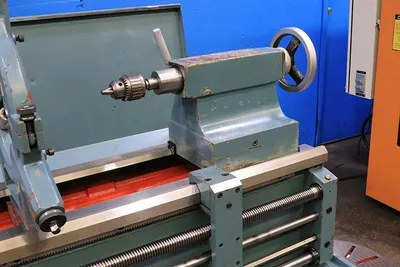

TAILSTOCK SPINDLE TRAVEL ............ 6"
TAILSTOCK SPINDLE TAPER ............. #4MT
APPROXIMATE FLOOR SPACE ............. 165"L x 36"W x 50"H
APPROX WEIGHT ....................... 6,500 LBS

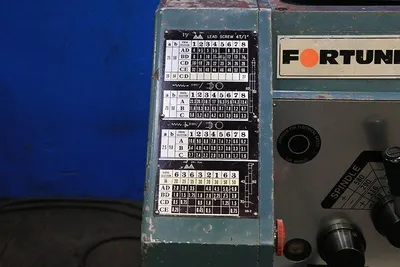

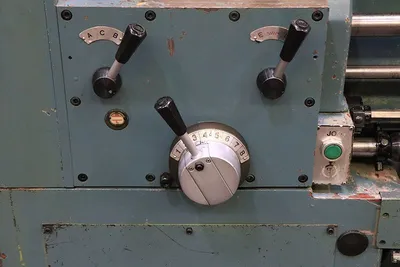

INCH & METRIC THREADING CAPABILITY
REMOVEABLE GAP

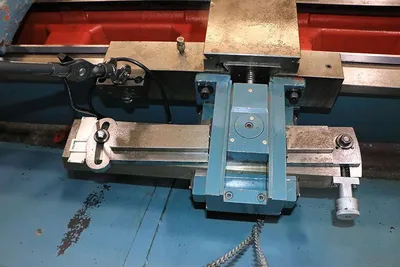

TAPER TURNING ATTACHMENT

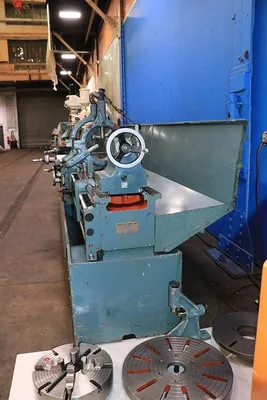

4-JAW CHUCK

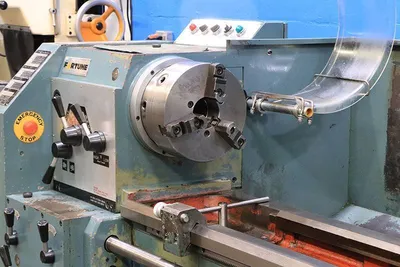

3-JAW CHUCK
FACEPLATE
12-1/2" CAPACITY ROLLER TYPE REST

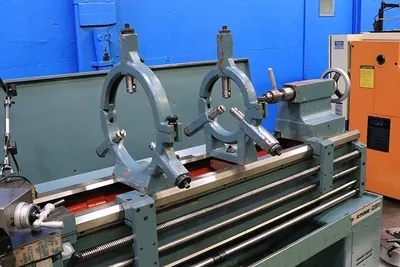

8" CAPACITY STEADY REST
FOLLOW REST
THREAD DIAL INDICATOR
MICROMETER CARRIAGE STOP
THREAD DIAL INDICATOR
HEADSTOCK CENTER SLEEVE
FOOT BRAKE
COOLANT SYSTEM WITH REMOVABLE CHIP PANS

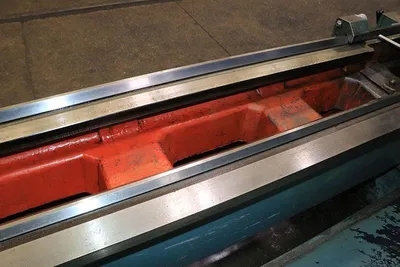

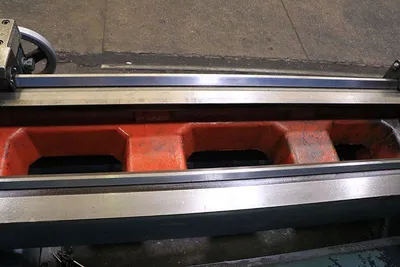

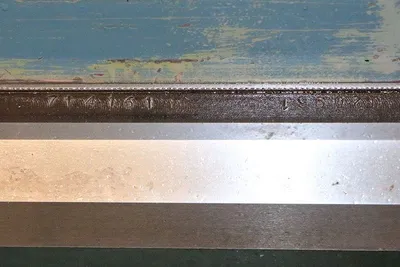

HARDENED & GROUND BED WAYS

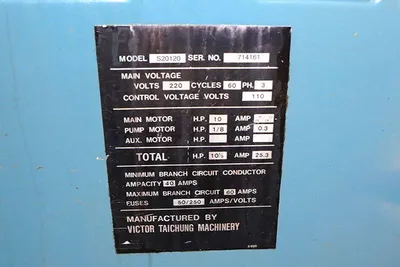

10 HP MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
