Used WEBSTER & BENNETT 72 E-R | BORING MILLS, VERT. (Including Vert. Turret Lathes)
$39,500.00 USD
ConditionUsed
1 available

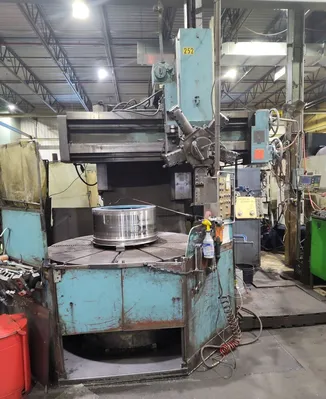

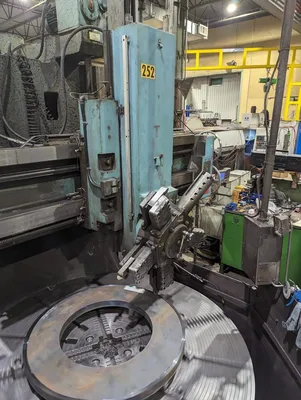

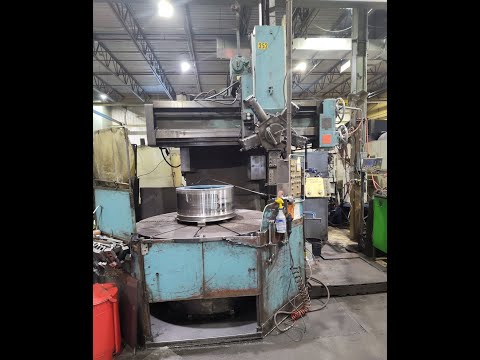

WEBSTER & BENNETT 72 E-R Vertical Turret Lathe. Features 72" dia 4-jaw Chuck., 59" height capability, 40 HP motor, and a 5-position turret. Comes with ACCU-RITE readout, 12 speed settings. Includes loading onto your truck.
Machining diameter 84"
Table diameter 72" 4-Jaw Chuck
Maximum machining height (Under Turret) 59"
Maximum workpiece weight 35200 LBS
Maximum ram travel (Z-Axis) 38"
Horizontal travel (X Axis) 50”
Cross rail travel 24”
Number of tools 5
Main drive motor capacity 40 HP
Table cutting speed range 3.8 - 83 RPM
Number of table speeds 12
Ram Head angle adjustable +/- 30 Deg
Number of Feed rates 12
Machine Dimensions (W x D) 156” x 120”
Machine Height (maximum w/cross rail in top position) 167”
Machine weight 34,000 lbs.

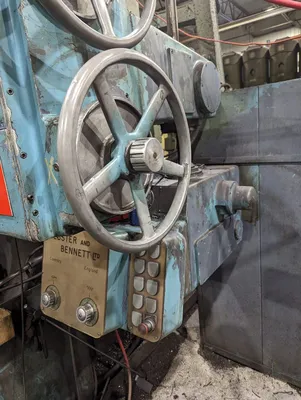

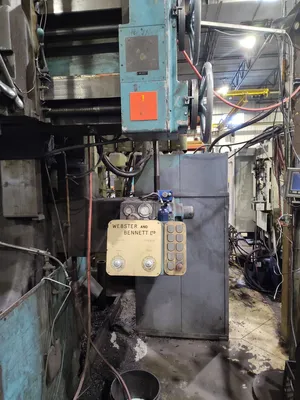

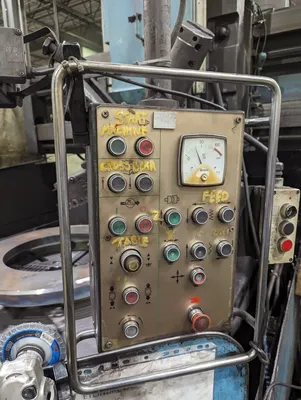

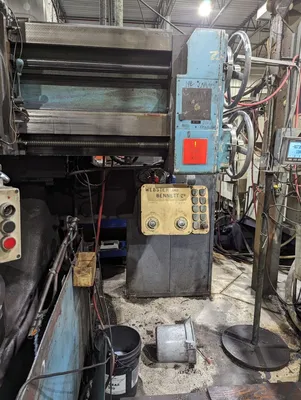

Operator Pendant control

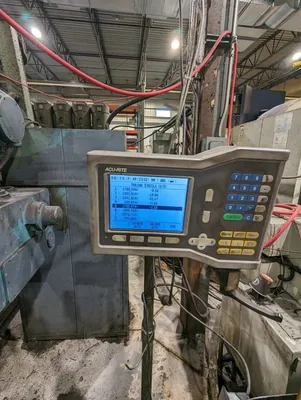

ACCU-RITE 2-axis digital readout
Four (4) Jaw Scroll Type chuck

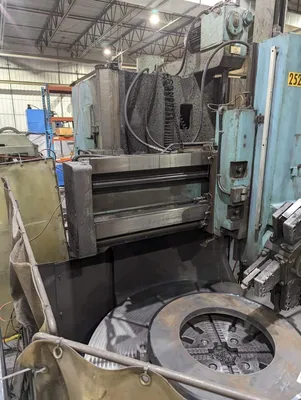

5 Position Turret

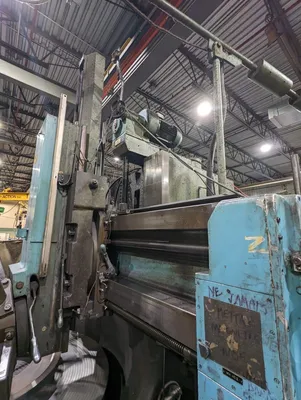

Power Elevated Rail
Price includes loading on your truck
