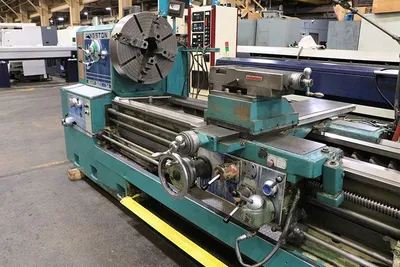

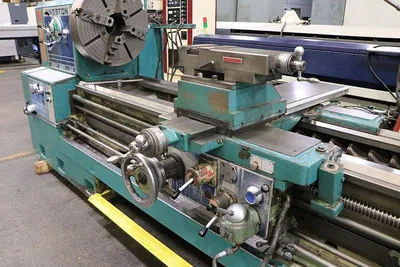

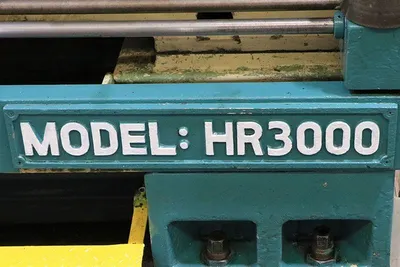

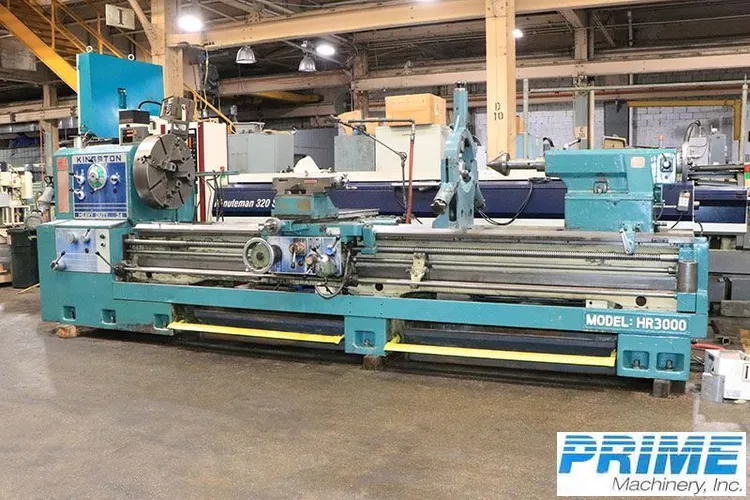

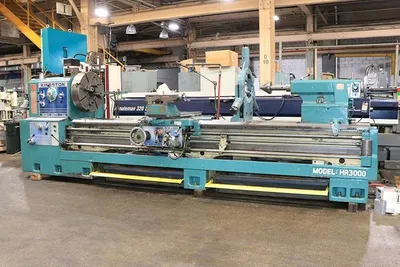

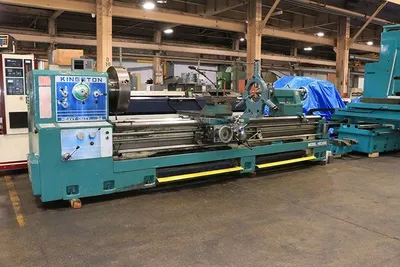

34"/41" X 120" KINGSTON MODEL: HR-3000 GAP BED ENGINE LATHE - NEW: 1982
$27,500.00 USD
ConditionUsed
1 available
Kingston HR-3000 Lathe, 1982 model, featuring a 34"/41" x 120" gap bed, 8-800 RPM speed range, D1-11" spindle nose. Equipped with Heidenhain digital readout, 24" 4-jaw chuck, 13" steady rest, coolant system, and 20 HP motor.
SWING OVER BED........................ 34"
SWING OVER CROSS SLIDE................ 24-3/4"

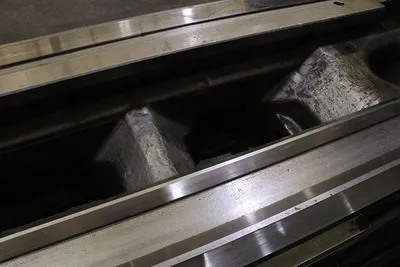

SWING IN REMOVABLE GAP................ 44-1/4"
SPINDLE NOSE CAMLOCK.................. D1-11"
HOLE THROUGH SPINDLE.................. 4-1/16"
DISTANCE BETWEEN CENTERS.............. 120"
SPINDLE SPEED RANGE (16).............. 8 - 800 RPM
LONGITUDINAL FEED RANGE (40).......... .0024" - .0337" IPR
CROSS FEEDS HALF OF LONGITUDINAL SETTING

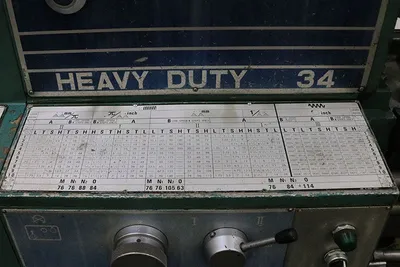

ENGLISH THREADING RANGE(40)........... 2 - 28 TPI
METRIC THREADING RANGE(31)............ 1 - 14MM
TAILSTOCK SPINDLE DIAMETER............ 5-1/8"
TAILSTOCK SPINDLE TRAVEL.............. 11-3/4"
TAILSTOCK SPINDLE TAPER............... #6MT
APPROXIMATE FLOOR SPACE............... 55"W x 200"L
APPROXIMATE WEIGHT.................... 12,500 LBS.
- INCH & METRIC THRADING CAPABILITY

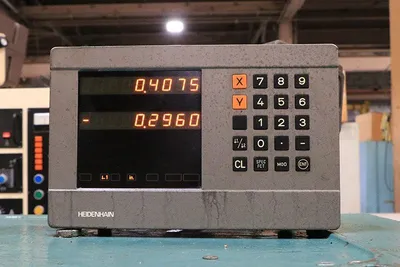

- HEIDENHAIN TWO AXIS DIGITAL READOUT

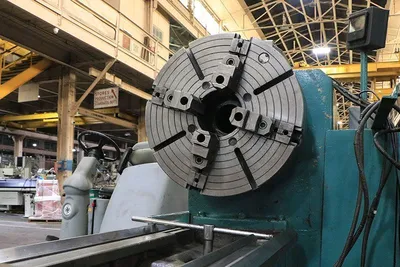

- 24" CUSHMAN 4-JAW CHUCK

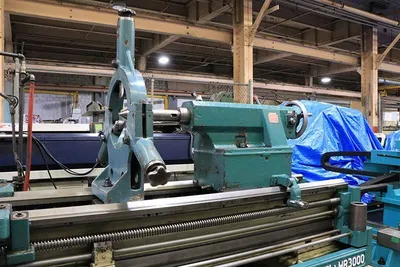

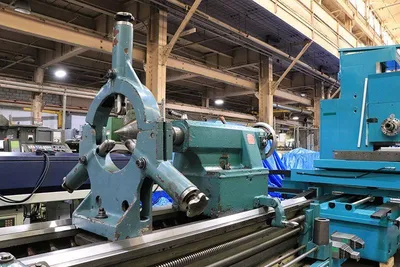

- 13" CAPACITY ROLLER TYPE STEADY REST
- RAPID TRAVERSE
- HEADSTOCK CENTER SLEEVE
- TWO SPEED TAILSTOCK

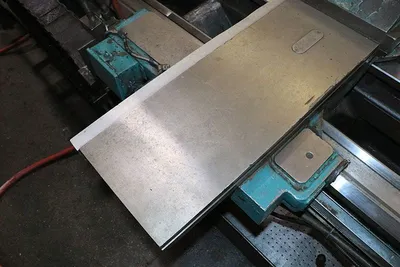

- COOLANT SYSTEM WITH REMOVABLE CHIP PANS
- 20 HORSE POWER MAIN DRIVE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
