Used 2011 FEELER HV-800 | MACHINING CENTERS, VERT., N/C & CNC
$26,500.00 USD
ConditionUsed
1 available
FEELER HV-800 VMC, 2011 model with 31.5" x 20.5" x 19.9" travels, 30 hp, and 15,000 RPM. Equipped with FANUC 18-MB CNC, rigid tapping, and 30-tool ATC. Features spindle oil chiller, coolant system, chip conveyor, and dual chip augers.

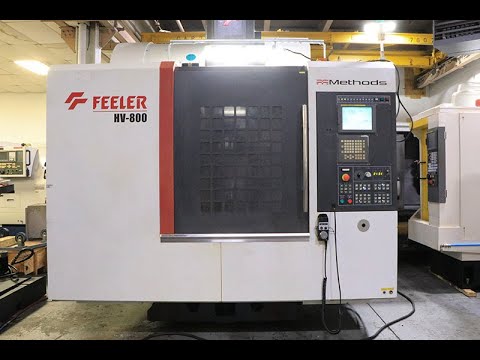

FEELER VERTICAL MACHINING CENTER
MODEL: HV 800, S/N: HVG039, YEAR: 2011
SPECIFICATIONS:
X-AXIS TRAVEL............... 31.5" / 800mm
Y-AXIS TRAVEL............... 20.5" / 520mm
Z-AXIS TRAVEL............... 19.9" / 505mm
TABLE SIZE.................. 37.4" X 20.5" / 950 X 520mm
MAXIMUM TABLE LOAD.......... 1100 LBS / 500 kg
SPINDLE NOSE TO TABLE TOP... 5.1" - 25"
SPINDLE MOTOR............... 30 HP
MAX SPINDLE SPEED........... 15,000 RPM
SPINDLE TAPER............... 40
AUTOMATIC TOOL CHANGER...... 30 TOOLS
RAPID TRAVERSE RATES X-Y/Z.. 2362/1181 IPM
APPROXIMATE MACHINE WEIGHT.. 15,100 LBS
FLOOR SPACE ................ 152" X 86" X 112"
EQUIPPED WITH:
- FANUC MODEL: 18-MB CNC CONTROL
- FANUC MOTORS & DRIVES ALL AXES
- RIGID TAPPING
- 30 STATION SIDE MOUNTED AUTOMATIC TOOL CHANGER
DUAL SWING ARM TYPE
- COOLANT THROUGH SPINDLE
- HIGH PRESSURE PUMP
- COOLANT SYSTEM
- SPINDLE OIL CHILLER
- DUAL CHIP AUGERS
- CHIP CONVEYOR
- STEEL TELESCOPIC WAY COVERS
- 30 HORSE POWER FANUC AC SPINDLE MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
