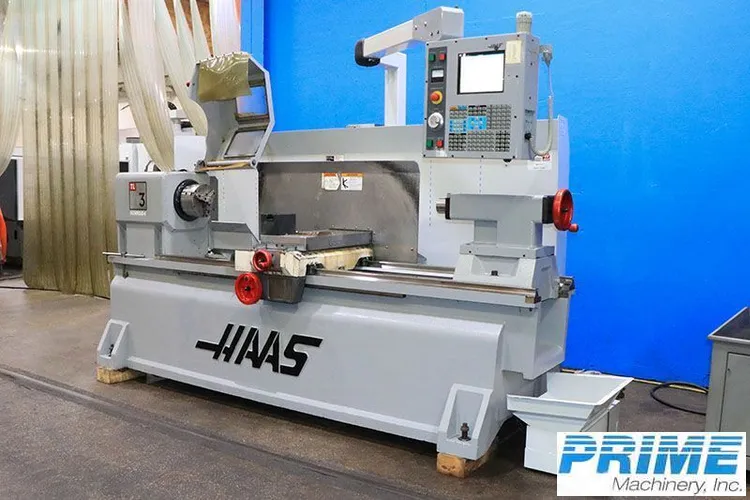

HAAS TL-3 CNC TOOLROOM LATHE - NEW: 2005
$26,500.00 USD
ConditionUsed
1 available
2005 HAAS TL-3 CNC lathe in used condition. Features include a 20.0 swing, 60.0 machining length, 12.0 chuck size, 18.0 power, and 1800.0 max RPM. Ideal for precision tasks, offering reliability in a compact design. Tailstock not included.
SWING OVER WAYS ....................... 30"
SWING OVER SADDLE WAYS ................ 20"
SWING OVER CROSS SLIDE ................ 13"
DISTANCE BETWEEN CENTERS .............. 60"
SPINDLE NOSE .......................... A2-6
SPINDLE BORE .......................... 3.5"
SPINDLE SPEEDS VARIABLE ............... 0 TO 1,800 RPM
TAILSTOCK SPINDLE TRAVEL .............. 6"
TAILSTOCK TAPER ....................... #5MT
FLOOR SPACE REQUIRED .................. 80"W X 122"L
APPROXIMATE WEIGHT .................... 6,500 LBS.
- HAAS CNC CONTROL
ALLOWS FULL CNC OPERATION WITHOUT KNOWING G-CODE!
INTUITIVE PROG SYSTEMS, RIGID TAPPING
- TURN PARTS MANUALLY OR AUTOMATICALLY
- 8" 3-JAW BUCK CHUCK
- SPINDLE & AXES DRIVES
- TAILSTOCK WITH MANUAL QUILL
- CHIP GUARD
- 18 HORSE POWER VECTOR SPINDLE DRIVE
INSPECT UNDER POWER IN NEW JERSEY WAREHOUSE
