Summit HBM-110 Table Type Horizontal Boring Mill, New 2014
$99,000.00 USD
ConditionUsed
1 available
Discover the precision of the 2014 used SUMMIT HBM-110 horizontal boring mill. Features include a 4.3" spindle, 20 HP motor, 1,500 RPM, 63" X-axis, 39.4" Y-axis travel, and a rotary table. Enhanced with a NEWALL 4-axis DRO and automatic lubrication.

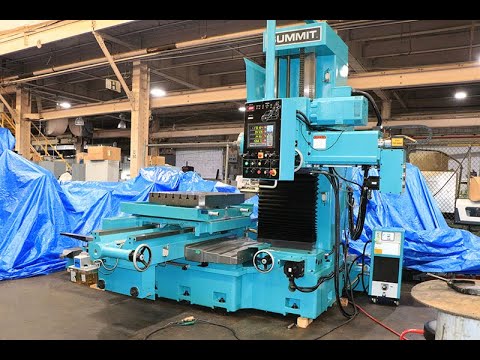

UMMIT TABLE TYPE HORIZONTAL BORING MILL
MODEL: HBM-110, S/N: 16018, MFG: 2014
SPECIFICATIONS:
SPINDLE:
DIAMETER OF SPINDLE ................. 4.3″
TAPER OF SPINDLE .................... #50
SPINDLE SPEED VARIABLE .............. 20 – 1,500 RPM
TRAVELS:
VERTICAL HEADSTOCK TRAVEL (Y-AXIS) .. 39.4″
CROSS TRAVEL (X-AXIS) ............... 63″
SADDLE TRAVEL (W-AXIS) .............. 49.2″
SPINDLE TRAVEL (Z-AXIS) ............. 16″
FEED RANGE (X, Y, & W) .............. 0.118 – 37.4 IPM
RAPID TRAVERSE (X, Y, & W) .......... 0.118 – 15.75 IPM
ROTARY TABLE SIZE ................... 31-1/2″ X 39.4″
MAX. WEIGHT OF WORKPIECE ............ 5,500 LBS.
TABLE HEIGHT FROM FLOOR ............. 49″
SPINDLE MOTOR ....................... 20 HP
APPROXIMATE MACHINE DIMENSIONS: ..... 157″ X 169″ X 120″ H
APPROXIMATE MACHINE WEIGHT: ......... 27,500 LBS.
#50 TAPER POWER DRAW BAR
ROTARY TABLE
NEWALL FOUR AXIS DIGITAL READOUT
HARDENED AND GROUND BEDWAYS
BALL SCREWS ON THE X & W AXIS
FULLY AUTOMATIC LUBRICATION SYSTEM
RAPID TRAVERSE IN ALL FEED DIRECTIONS
FULL STEEL TELESCOPING WAY COVERS ON X AND W-AXIS
HYDRAULIC CLAMPING (X, Y, AND W-AXIS)
20 HORSE POWER SPINDLE MOTOR
Inspect Under Power in our New Jersey Warehouse
