Used DN SOLUTIONS DVF 8000T | MACHINING CENTERS, VERICAL (5-Axis or More)
ConditionUsed
1 available
Premium Simultaneous 5-axis Vertical Machining Center withTurning Function
The DVF series of premium 5 axis Vertical Machining Centers are built for high
precision machining of complex parts
Capacity:
X axis travel 1,000 mm (39.37 inch)
Y axis travel 900 mm (35.43 inch)
Z axis travel 685 mm (26.97 inch)
A axis travel 240 degrees (+\- 120)
C axis travel 360 degrees
C axis turning 600 RPM
Table Size 800 mm (31.5 inch)
Max Work Piece Diameter 1,000 mm (39.37 inch)
Max Work Piece Height 590 mm (23.23 inch)
Max Table Load 700 kg (1,543 lbs)
SPINDLE (MILLING):
Spindle nose to table top 155 – 840 mm (6.1 – 33.07 inch)
Spindle speed 18,000 rpm
AC Spindle Motor (15 minute rating) 18.5 \ 22 kw (25 \ 29.5 hp)
Spindle Torque (S3 25%) 118 nm (87.1 ft-lbs
sspindle Taper HSK-T63
Tool changer capacity 120
Overall floor space required (approximate) 7,697 x 3,778 mm (303 x 149 inch)
Machine height 3,796 mm (149.5 inch)
Machine Weight (Main body only)* 25,000 kg (55,115 lbs)

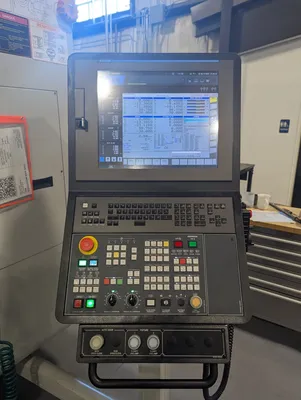

Fanuc CUFOS Control with 19" color LCD touch panel interface
• 5 Simultaneously controlled axes (X,Y,Z,A,C) with high precision, absolute rotary
encoders on A and C axes and absolute glass scales on XYZ axes
• 600 rpm, direct drive turning spindle (C-axis)
Chip conveyor
Coolant Through the Spindle
Machine will come with a One year parts warranty from DN Solutions
Inspect under power - Parts coming off this machine are extremely tight tolerance space parts.
