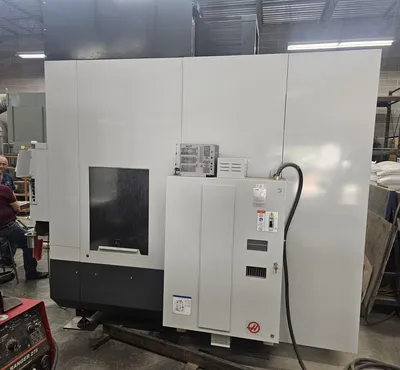

Used 2020 HAAS UMC-750 | MACHINING CENTERS, VERICAL (5-Axis or More)
ConditionUsed
1 available

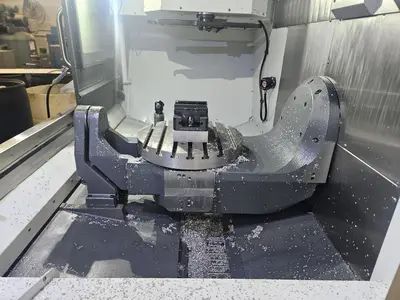

5-axis machining is an effective means to reduce setups and increase accuracy for multi-sided and complex parts. The Haas UMC Series universal machining centers are cost-effective solutions for 3+2 machining and simultaneous 5-axis machining. The UMC-750 has an integrated dual-axis trunnion table with a 500 mm diameter platter that features standard T-slots and a precision pilot bore for fixturing versatility. The trunnion provides +120 and -35 degrees of tilt and 360 degrees of rotation to provide excellent tool clearance and large part capacity.
5-axis simultaneous machining
Powerful inline direct-drive spindle
Large capacity side-mount tool changer
Includes Wireless Intuitive Probing System
Travels
X Axis 30.00 in
Y Axis 20.00 in
Z Axis 20.00 in
Spindle Nose to Platter (~ max) 24.0 in
Spindle Nose to Platter (~ min) 4.0 in
B Axis - Tilt
Travel 120 degrees to -35 degrees
C-Axis Rotation
Travel 360 degree
Max Part Swing 27"
Platter Diameter 19.7"
Max weight on Platter 660 Lbs
Spindle speed 10,000 RPM
Spindle Taper Cat 40
Spindle motor 30 HO
Shipping dimensions: 120.1" H, 114.5" W, 120" L
Approximate machine weight 18,500 Lbs
Haas CNC Control
30+1 Side Mount Tool Changer
Wireless Intutive Probing System
Belt Type Chip Conveyor
High Speed Machining Max Memory 1 GB
Wireless Networking
Machine comes with 5th axis vice, Renishaw probe and Cat 40 holders
Very low use machine from a small Aerospace Repair Shop - Owner Retiring
Inspect under Power in Y
