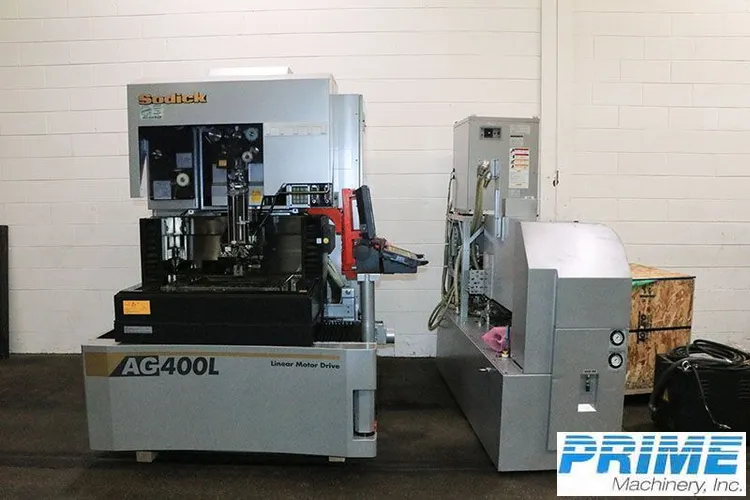

SODICK AG400L CNC WIRE EDM - NEW: 2012

Sodick Model No. AG400L
CNC Wire EDM

S/N: 1063 New: 2012

4,469 Cutting Hours
15,106 Source on Time

LN2W/LPW400 CNC Control & Power Supply
Program Input Method by Keyboard, USB & Ethernet
Linear Motor Design - No Ball Screws
Glass Scales
Fixed Jet Auto Wire Threader

– X Axis Travel – 15.75″
– Y Axis Travel – 11.81″
– Z Axis Travel – 9.87″
– U & V Travels - +/- 4.73"

– Max Workpiece: 24" x 18" x 9"
– Max Workplace Weight – 1,102 lbs.

Inside Tank Dimensions: 33.460" x 24.020"

– Wire Diameter: .002″~0.12″
–Wire Speed: 420mm/Second Max

– Dielectric Fluid Capacity: 600 Liters

–Chiller: Yes

– Machine Tool Dims: 86.68″ x 87.99″ x 86.61″
– Approx. Weight: 8,377 Lbs.

– 200 Volts/3/50-60 Hz
– 13 kva/ FLA 38 amps
– Separate Transformer Provided for
Multiple Voltage Choices

** Deinstalled & Prepared for Shipment by Sodick **
** F.O.B. Our Harrison, NJ Warehouse **
** Offered with Start-Up Guarantee
and 30 Day Return Privilege **
