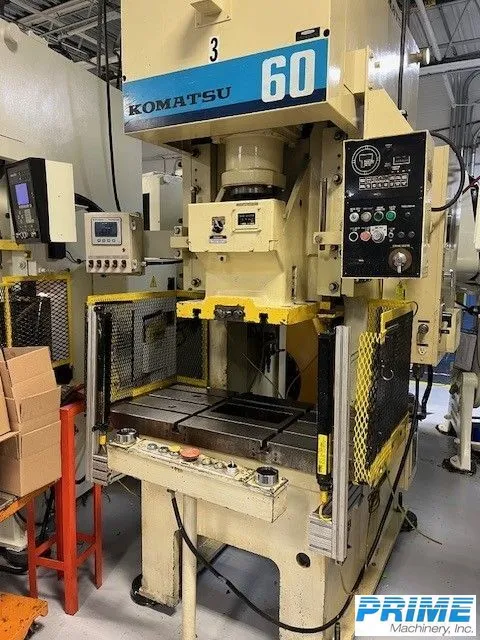

KOMATSU OBS 60-3 OPEN BACK SIDE GAP FRAME PRESS
$19,500.00 USD
ConditionUsed
1 available
KOMATSU OBS 60-3, open back non-inclinable press. Max capacity 66 tons, 70 SPM, slide stroke 4.72". Machine approx. 106.7" tall, 40" wide, 55" FB. Equipped with Weld Tron light curtain.
KOMATSU MODEL: OBS 60-3
OPEN BACK SIDE GAP FRAME PRESS
NEW: 1989
MAXIMUM CAPACITY...................... 66 TONS
NUMBER OF SLIDE STROKES............... 70 SPM
SLIDE STROKE.......................... 4.72"
DIE HEIGHT (BOLSTER TO SLIDE SDAU).... 11.81"
SLIDE ADJUSTMENT...................... 2.76"
SLIDE DIMENSIONS (LR X FB)............ 19.69" X 15.75"
BOLSTER DIMENSIONS (LR X FB X THICKNESS) 47.24" X 21.65" X 3.15"
APPROX. MACHINE DIMENSIONS: 106.7" TALL, 40" WIDE, 55" FB
EQUIPPED WITH:
* WELD TRON LIGHT CURTAIN
(Gray box on left side not included)
