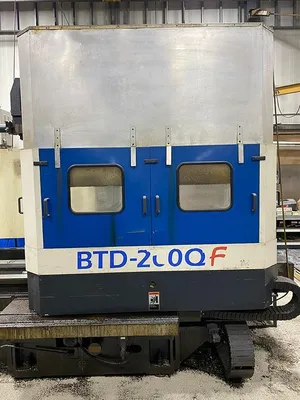

4.3" TOSHIBA BTD-200QF CNC TABLE TYPE HORIZONTAL BORING MILL - NEW: 1998

TABLE CROSS TRAVEL (X AXIS) ................ 59.1"
VERTICAL TRAVEL OF HEADSTOCK (Y AXIS) ...... 47.2"
LONGITUDINAL TRAVEL OF TABLE (Z AXIS) ...... 27.6"
SPINDLE/QUILL TRAVEL (W AXIS) .............. 15.7"
DIST FROM TABLE CENTER TO SPINDLE CENTER ... 0 - 39.4"
DIST FROM TABLE CENTER TO SPINDLE GAGE PLANE 17.7"-45.3"
TABLE WORKING SURFACE ...................... 39.4" x 39.4"
TABLE LOADING CAPACITY ..................... 6,600 LBS
TABLE INDEXING ............................. .001 DEG
ROTATING SPINDLE DIAMETER .................. 4.3"
EXTENDED QUILL DIAMETER .................... 7.9"
SPINDLE SPEED .............................. 25 - 3000 RPM
SPINDLE TAPER .............................. CAT-#50
RAPID TRAVERSE RATE (X, Y, Z) .............. 472.4 IPM
(W) ................................. 196.9 IPM
(B) ................................. 500 DEG/MIN
FEED RATE .................................. .04 - 236.2 IPM
TOOL STORAGE CAPACITY ...................... 30
APPROXIMATE DIMENSIONS ................. 173" x 169" x 124"H
APPROXIMATE WEIGHT ......................... 37,500 LBS
