18"/25" x 100" MAZAK GAP BED LATHE - NEW: 1980'S
$14,500.00 USD
ConditionUsed
1 available

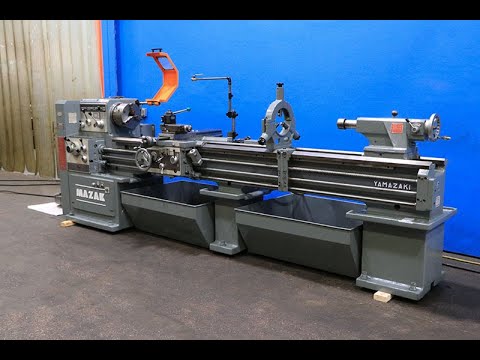

18"/25" x 100" Mazak Gap Bed Lathe, 1980s. Features: 18" swing over bed, 25-1/8" gap swing, 100" center distance, D1-8" camlock, 25-1500 RPM speeds, and much more. Comes with chucks, toolpost, and two-speed tailstock. 7,500 lbs.
SWING OVER BED WAYS ................. 18"
SWING IN REMOVABLE GAP .............. 25-1/8"
SWING OVER CROSS SLIDE .............. 10-1/8"
DISTANCE BETWEEN CENTERS ............ 100"
HOLE THRU SPINDLE ................... 3-1/8"
SPINDLE NOSE ........................ D1-8" CAMLOCK
WIDTH OF BED ........................ 14-1/2"
SPINDLE SPEED RANGE (12) ............ 25 - 1500 RPM
LONGITUDINAL FEED RANGE (80) ........ .0024" - .035" IPR
CROSS FEED RANGE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (40) ........... 4 - 56 TPI
METRIC THREADING RANGE (23) ......... .5 - 7 mm
TAILSTOCK SPINDLE TRAVEL ............ 6-5/16"
TAILSTOCK SPINDLE TAPER ............. #4MT
APPROXIMATE FLOOR SPACE ............. 160"L x 45"W x 50"H
APPROX WEIGHT ....................... 7,500 LBS
INCH & METRIC THREADING
TAPER TURNING ATTACHMENT
REMOVABLE GAP BLOCK
12" 3-JAW CHUCK
15" 4-JAW CHUCK
ROLLER TYPE STEADY REST
QUICK CHANGE TOOLPOST
LIVE CENTER FOR TAILSTOCK
TWO SPEED TAILSTOCK

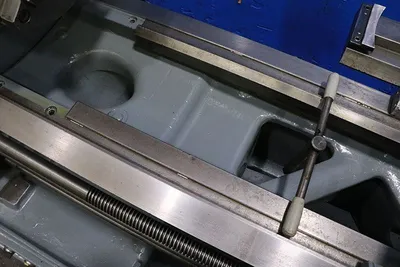

HARDENED & GROUND BED WAYS
10 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
