50"/63" x 360" SUMMIT MODEL: 50R ENGINE LATHE - MFG: 1978
$89,500.00 USD
ConditionUsed
1 available
Summit Model 50R Engine Lathe, 50"/63" x 360", used, 1978. Swing over bed 51-3/16", spindle speed 6-500 RPM, 30 HP motor. Comes with faceplate, steady rests, power rapid traverse, and coolant system. Located in our NJ warehouse. Approx. weight 38,500 lbs.
50"/63" x 360" SUMMIT ENGINE LATHE
MODEL: 50R, S/N: 770901, MFG: 1978
SWING OVER BED WAYS ................. 51-3/16"

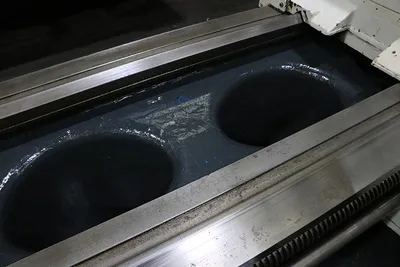

SWING IN REMOVABLE GAP .............. 61-21/64"
SWING OVER CROSS SLIDE .............. 35-7/16"
DISTANCE BETWEEN CENTERS ............ 360"
HOLE THRU SPINDLE ................... 6.1"
WIDTH OF BED ........................ 23-5/8"
SPINDLE NOSE ........................ A2-11
SPINDLE SPEED RANGE (16) ............ 6 - 500 RPM
LONGITUDINAL FEED RANGE (60) ........ .0014 - .360 IPR
CROSS FEED RANGE (60) ............... .0008 - .180 IPR
INCH THREADING RANGE ................ .5 - 84 TPI
METRIC THREADING RANGE .............. .52 - 56 mm
TAILSTOCK SPINDLE DIAMETER .......... 6-1/8"
TAILSTOCK SPINDLE TRAVEL ............ 15-3/4"
TAILSTOCK SPINDLE TAPER ............. #6MT
APPROXIMATE FLOOR SPACE ............. 476"L x 63"W x 93"H
APPROX WEIGHT ....................... 38,500 LBS
HARDENED & GROUND BEDWAYS
FACEPLATE
(2) 26" CAPACITY ROLLER TYPE STEADY RESTS
TAPER THROUGH POWER COMPOUND
POWER RAPID TRAVERSE
LIVE CENTER
TAILSTOCK
THREAD DIAL INDICATOR
COOLANT SYSTEM WITH REMOVEABLE CHIP PANS
30 HORSE POWER MAIN MOTOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
