SHARP VERTICAL MILL MODEL:LMV 3-AXIS CNC PLUS MANUAL HANDWHEELS - NEW: 2006 RETROFITTED 2017
$16,500.00 USD
ConditionUsed
1 available

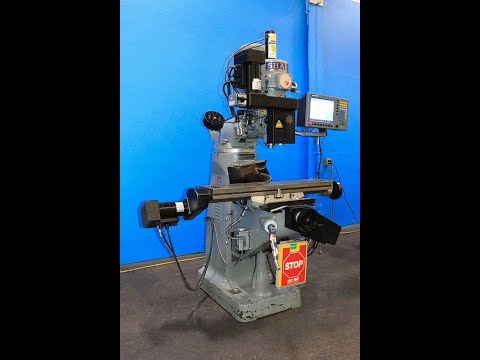

SHARP VERTICAL MILL
MODEL:LMV w/ ACU-RITE MILLPOWER CONTROL
3-AXIS CNC PLUS MANUAL HANDWHEELS
S/N: 50229154, NEW: 2006
RETROFITTED 2017
TABLE SIZE....................... 9" x 42"
TABLE TRAVEL (X-AXIS)............ 25"
SADDLE TRAVEL (Y-AXIS)........... 11"
QUILL TRAVEL (Z-AXIS)............ 5"
KNEE TRAVEL ..................... 16"
RAM TRAVEL ...................... 12"
SPINDLE TAPER.................... R-8
SPINDLE SPEED RANGE.............. 60 - 4200 RPM
HEAD TILT ANGLE (L/R) ........... 45°
HEAD TILT ANGLE (UP/DOWN) ....... 45°
FLOOR AREA (DOORS CLOSED)........ 101" x 74"
HEIGHT........................... 87"
WEIGHT (WITH CONTROL)............ 3,600 LBS.
ACU-RITE 3-AXIS MILLPOWER CONTROL, MODEL: G2
RETROFIT PACKAGE NEW IN 2017
w/ X,Y & Z BALLSCREWS & AC SERVO MOTORS
FOR BOTH CONVERSATIONAL & G-CODE
USE AS THREE AXIS CNC OR THREE AXIS DIGITAL READOUT
USB PORT & RS 232 INTERFACE
GLASS SCALE FEEDBACK
HARDENED & GROUND WAYS
HARDENED & GROUND TABLE
AIR ACTUATED POWER DRAW BAR
ONE SHOT LUBRICATION SYSTEM
3 HORSE POWER SPINDLE MOTOR
TRANSITION FROM THREE AXIS CNC TO MANUAL MACHINING
PERFECT FOR A TOOLROOM OR PROTO TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
