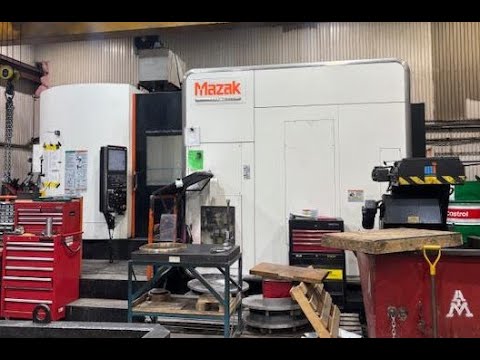

MAZAK INTEGREX I-630V 5-AXIS CNC VERTICAL MACHINING CENTER - NEW: 2013
ConditionUsed
1 available
The Mazak Integrex i-630V is the productive fusion of the performance of turning centers and machining centers incorporating a tilting B-Axis for 5-Axis machining. Two pallet changer with 31.5" chucks, 120 position ATC, 10,000 RPM spindle, 550 RPM table.
X-Axis (Table Forward / Backward) 58.1"
Y-Axis (Spindle Head Travel Right/Left) 41.3"
Z-Axis ( Spindle Head Travel up/Down) 41.3"
B-Axis (Spindle Head Tilt)-30 Degrees to + 120 Degrees
C-Axis (Table Rotate) 360 Degree Continuous
Maximum Machining Diameter 41.3"
Maximum Workpiece 41.3" x 39.4"
Chuck diameter 31.5" (Two 3-Jaw Scroll Chucks)
Table Load Capacity 3,858 Lbs (Chuck Weight Included)
Table:
Maximum Speed 550 RPM
Min Indexing Angle Increment (C-Axis) 0.0001 Degree
Table Motor 50 HP
Milling:
Maximum Spindle Speed 10,000 RPM
Spindle Taper Cat-50
Min Inexing Angle Increment (B-Axis) 0.0001 Degrees
Milling Spindle Motor 40/50 HP
Automatic Tool Changer:
120 Tool Magazine
Mazak Mazatrol Matrix 2 CNC Control
Automatic Tool Eye
Two Position Pallet Changer with Setup Station
Two (2) 800mm 31.5" 3-Jaw Chucks
B-Axis - 150 Degree Tilting Milling Spindle
Chip Conveyor
High Pressure Coolant Through the Spindle
