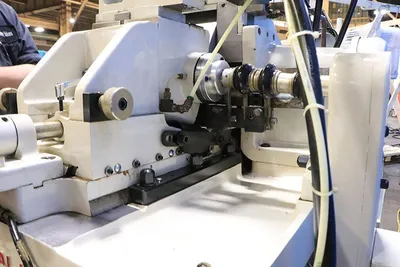

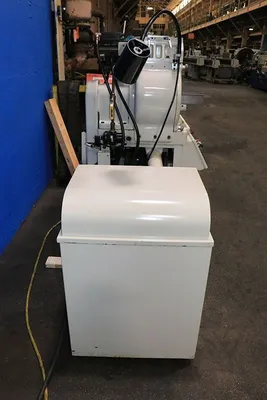

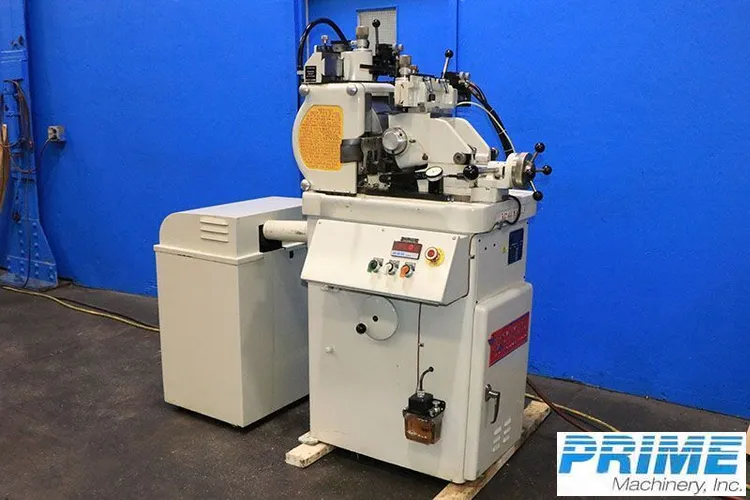

ROYAL MASTER "MADE IN USA" MODEL: TG12X4 CENTERLESS GRINDER - NEW: 2004
$39,500.00 USD
ConditionUsed
1 available
Royal Master TG12X4 Centerless Grinder, USA made, 2004. Compact and precise, handles 0.004" to 1.5" dia. with 54"L-R x 30"F-B x 66"H footprint. Features hydraulic dressers, variable speed, and auto lubrication for optimized performance.
CAPACITY:
INFEED AND THRUFEED ............. 0.004" TO 1.5" DIA.
LENGTH .......................... 12' ON 0.5" DIA.
WHEELS:
MAXIMUM GRINDING WHEEL .......... 12" DIA. x 4.5" WIDE
MINIMUM GRINDING WHEEL .......... 10" DIA. x 1/4" WIDE
MAXIMUM REGULATING WHEEL ........ 6" DIA. x 4.5" WIDE
MINIMUM REGULATING WHEEL ........ 1/4" WIDE W/SPOOL
SPINDLE SPEEDS:
GRINDING WHEEL .............. CONSTANT SPEED 2,040 RPM
REGULATING WHEEL ............ INF. VARIABLE 20 TO 500 RPM
REGULATING WHEELHEAD:
MAX. ANGLE OF TILT FOR
THRUFEED GRINDING ............. 6 DEGREES
MAX. SWIVEL FOR TAPER GRINDING .. 5 DEGREES
APPROXIMATE FLOOR SPACE ......... 54"L-R x 30"F-B x 66"H
APPROXIMATE WEIGHT .............. 2,300 LBS
"PRECISION" REGULATING WHEEL BEARINGS
HYDRAULIC DRESSER FOR GRINDING WHEEL
HYDRAULIC DRESSER FOR REGULATING WHEEL
VARIABLE SPEED DRIVE FOR THE REGULATING WHEEL
TACHOMETER, DISPLAY UNIT, FOR THE REGULATING WHEEL
WORK REST & BLADE
AUTOMATIC LUBRICATION SYSTEM
SELF CONTAINED HYDRAULIC SYSTEM
ROYAL MASTER COOLANT TANK, WITH PUMP
7.5 H.P. MAIN DRIVE MOTOR
3/60/208-230-460 VOLT ELECTRICS
MACHINE IS PRESENTLY WIRED FOR 3/60/208 VOLTS
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
** ENTIRELY ORIGINAL - VERY LOW USE **
** ABSOLUTELY EXCEPTIONAL CONDITION & APPEARANCE **
