Used BRIDGEPORT Series 1 2hp 42x9 | MILLERS, KNEE, N/C & CNC
$12,950.00 USD
ConditionUsed
1 available

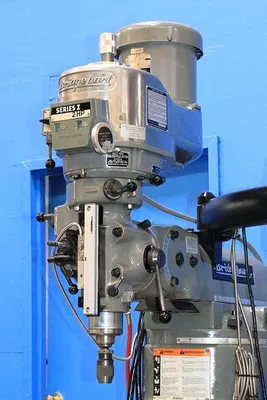

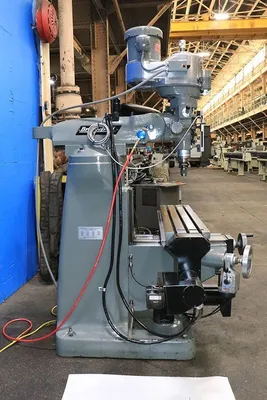

RIDGEPORT PROTO-TRAK 2-AXIS CNC VERTICAL MILL
SERIES-I w/PROTOTRAK KMX CONTROL

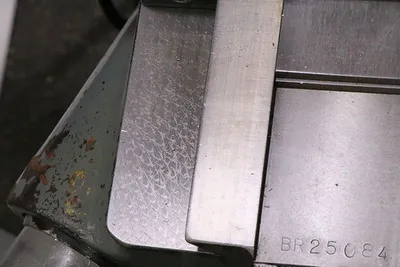

S/N: BR 250841
CNC RETROFIT PACKAGE ADDED in 2017
SPECIFICATIONS:
WORKING SURFACE OF TABLE ................. 9" x 42"
TABLE CROSS TRAVEL(X) .................... 26"
TABLE SADDLE TRAVEL(Y) ................... 12"
QUILL TRAVEL(Z) .......................... 5"
KNEE TRAVEL .............................. 16"
SPINDLE TAPER ............................ R-8
VARIABLE SPINDLE SPEEDS .................. 60 TO 4200 RPM
QUILL FEEDS (3) .......................... 0.0015, .003
& .006 IPR
APPROXIMATE FLOOR SPACE: ................. 60" x 63" x 82"H
APPROXIMATE WEIGHT: ...................... 2,400 LBS.
EQUIPPED WITH:
SOUTHWESTERN INDUSTRIES / PROTO-TRAK MODEL: KMX CONTROL:
2-AXIS CNC CONTROL SYSTEM (AUTO GEOMETRY ENGINE)
WITH SERVO MOTORS, MANUAL DATA INPUT 2 AXIS
LINEAR & CIRCULAR INTERPOLATION, PROGRAM DOWNLOAD,
MIRROR IMAGE, PART GRAPHICS & MUCH MORE
9" COLOR LCD SCREEN
TWO USB PORTS
RJ 45 & ETHERNET CARD
IN MANUAL OPERATION, CONTROL BECOMES 3 AXIS DIGITAL READOUT
MACH-1 QUICK CHANGE TOOLING SYSTEM W/TOOLS
GROUND BALLSCREWS ON TABLE & SADDLE
SERVO POWER FEED FOR VERTICAL KNEE POSITIONING
BIJUR ONE SHOT LUBRICATION SYSTEM
CHROME WAYS
2 HORSE POWER MAIN MOTOR
TRANSITION FREELY FROM 2-AXIS CNC TO MANUAL
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
