FEMCO BMC-110R2 CNC TABLE TYPE HORIZONTAL BORING MILL

Sell Your FEMCO BMC-110R2
516-922-7977
sales@primemach.com
ConditionUsed
1 available
Sell Your FEMCO BMC-110R2

Document (1)

FEMCO BMC 110 CNC BORING MILL.pdf

Overview

Type:
BORING MILLS, HORIZ., TABLE TYPE, N/C & CNC
Manufacturer:
FEMCO
Model:
BMC-110R2
Year:
1999
Stock #:
69208
Status:
For Sale

Description

FEMCO BMC-110R2 Boring Mill, 4.33" Spindle, 25 hp, 2000 RPM, 79" X, Travel , 71" Y Travel, Fanuc 18i CNC, full B-axis, chip conveyor, box ways, spindle support.

Spindle Size4.33"109.98 mm
X-Horiz Tvl of Table79"2,006.6 mm
Y-Vert Tvl of Head71"1,803.4 mm
Power25 hp18.6 kW
RPM2,000 RPM2,000 RPM
Table-W57"1,447.8 mm
Table-L62"1,574.8 mm
Spindle Tvl.21.65"549.91 mm
Dimensions257" L x 216" W x 146.5" H257" L x 216" W x 146.5" H
Weight42,000 Lbs42,000 Lbs

Table Cross Travel (X) 78.74"
Headstock Travel (Y) 70.87"
Table Longitudinal Travel (Z) 66.93"
Spindle Stroke (W) 21.65"
Spindle Taper Cat 50
Table Load Capacity 14,000 Lbs
Spindle Speeds (2 Speed Geared) 5 to 2,000 RPM

Equipped with:
- Fanuc 18i 5-Axis CNC Control (X,Y,Z,W and B Axis)
- Simultaneous 4 Axis Control

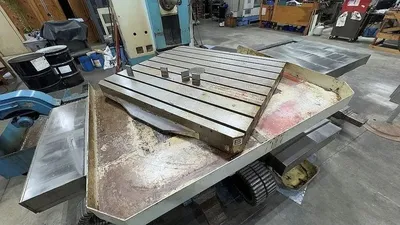

- Full B-Axis on Rotary Table
- Chip Conveyor
- Box Ways
- Spindle Extension Support
- Linear Scale Feedback X,Y and Z Axis

Inspect under power in plant.
