30" X 200" MAZAK HEAVY DUTY ENGINE LATHE - NEW: 1970'S

Sell Your MAZAK 30-200
LATHES, ENGINE_See also other Lathe Categories
Manufacturer:
MAZAK
Model:
30-200
Stock #:
69205

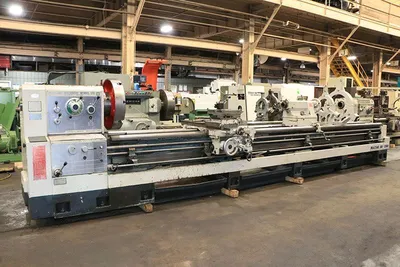

MAZAK 30" X 200" heavy duty engine lathe from the 1970s. Features 30" swing over bed, 200" distance between centers, 4-1/16" spindle hole, 12-1200 RPM speed range, and includes a 24" 4-jaw chuck, taper turning, and more. 14,500 lbs.

SWING OVER BED WAYS ................. 30"
SWING OVER CROSS SLIDE .............. 20-3/4"
DISTANCE BETWEEN CENTERS ............ 200"
HOLE THRU SPINDLE ................... 4-1/16"
SPINDLE NOSE ........................ D1-11" CAMLOCK
WIDTH OF BED ........................ 22"
SPINDLE SPEED RANGE (16) ............ 12 - 1200 RPM
LONGITUDINAL FEED RANGE ............. .0024" - .0337" IPR
CROSS FEED RANGE HALF OF LONGITUDINAL SETTING
INCH THREADING RANGE (40) ........... 2 - 28 TPI
METRIC THREADING RANGE (23) ......... 1 - 14mm
TAILSTOCK SPINDLE TRAVEL ............ 11-3/4"
TAILSTOCK SPINDLE TAPER ............. #6MT
APPROXIMATE FLOOR SPACE ............. 288"L x 64"W x 62"H
APPROXIMATE WEIGHT .................. 14,500 LBS

INCH & METRIC THREADING

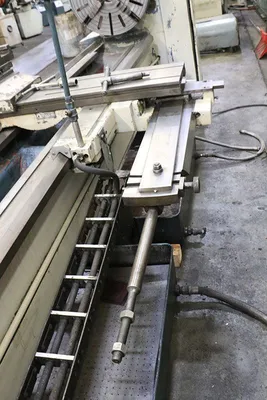

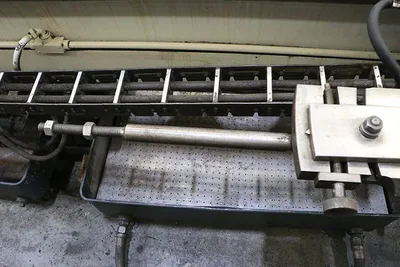

TAPER TURNING ATTACHMENT
24" 4-JAW CHUCK
17" CAPACITY ROLLER TYPE STEADY RESTS
9"CAPACITY ROLLER TYPE STEADY REST
TWO SPEED TAILSTOCK
THREAD DIAL INDICATOR
POWER RAPID TRAVERSE
COOLANT SYSTEM W/REMOVEABLE CHIP PANS
HARDENED & GROUND BED WAYS
15 HORSE POWER MAIN MOTOR
