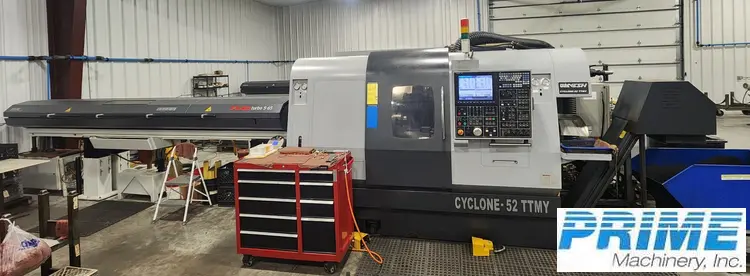

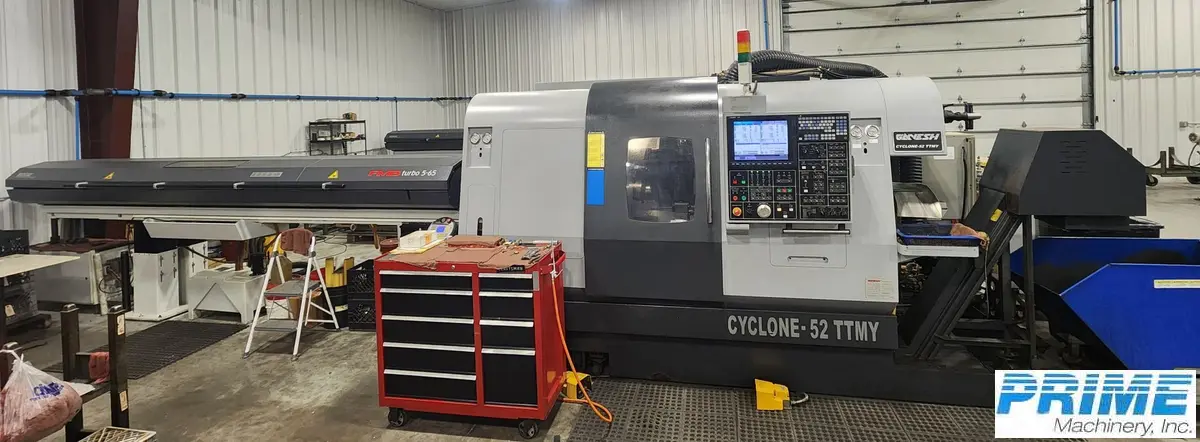

GANESH CYCLONE 52TTMY DUAL SPINDLE - DUAL 16-STATION LIVE TURRETS - Y-AXIS - NEW; 2014

SWING 7.48"
MACHINING LENGTH 15.75"
# AXIS 7
BAR CAPACITY 2"
CHUCK SIZE 6"
DISTANCE BETWEEN CENTERS 36.22"
TURNING DIAMETER 7.48"
POWER 20 hp
MAX RPM 6,000 RPM
LIVE TOOLING Yes
SUB SPINDLE Yes
# OF TURRETS 2
HOLE THRU 2 in
CONTROL CNC (Mitsubishi 720L)
DIMENSIONS 167" x 88" x 79" (includes chip conveyor)
WEIGHT 22,751 lbs
To the best of our knowledge all details listed below are deemed correct.
It is the buyer’s responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.

CAPACITY
Turning diameter: 7.48” (190 mm) maximum, 6.7” (170mm) standard
Turning length / Center distance: 15.75” (400mm) / 36.22” (920mm) between centers

MAIN SPINDLE / SUBSPINDLE
Spindle nose / Bearing Diameter: A2-5
Spindle Bar Capacity: 2.0” (51 mm)
Chuck Size: 6”
Spindle Center Height: 46.45” (1,180mm)
Maximum spindle speed: 60-6,000 RPM Integral Spindles (4,000 RPM Hi-Torque option)
Spindle motor horsepower: 20-HP peak, 15-HP (30-minute duty rating)

LIVE TOOL TURRETS Dual 16-Station Live Tool Turrets
Number of turret stations: 16 x 2 32 (Any combination of 32 ID, OD or Live tool stations)
Index time (adjacent tool / 180 index): 0.2 seconds / 1.2 seconds High-Speed Servo Indexing
Live Tool Power / RPM: 7-HP / 6,000 rpm, 14.75 ft. lbs. torque (20Nm)
Tool Size / Collet Size: 25mm (for square tool and round tool) / ER-32
Tool Holder Type & Size: BMT-65 Base Mount Tooling
Turret Thru-The-Tool-Coolant: Rated to 1,000 PSI for High Pressure coolant option

“Y” AXIS
Y axis travel: 2.75” of travel - ± 1.378” off of centerline (±35mm)
Y axis Rapid Feed Rate: 236 Inch Per Minute (6m per minute)

“C” AXIS
Spindle Radial Resolution: 0.001°, 360,000 radial positions with full contouring capability

“B” AXIS (sub spindle travel)
Distance Between Spindles: 36” (914mm)
B Axis Rapid Traverse Rate: 1,573 Inch Per Minute (40m per minute)
B Axis Travel: 25.59” (650mm)

AXIS SPECIFICATIONS
Axis Travel – X1, X2 - Axis: X1 5.9” (150mm), X2 9.05” (230 mm)
Axis Travel – Z1, Z2 - Axis: Z1 17.32” (440mm), Z2 17.32” (440mm)
Rapid Travers Rate – X1, X2 -Axis: 630 ipm (16 m/minute)
Rapid Travers Rate – Z1, Z2 - Axis: 1,574 ipm (40 m/minute)
Minimum Programmable Input: 0.0001” (0.001mm = 40 millionths of an inch)

FLUID CAPACITY
Hydraulic System: Gallons, 10.5 gallons (40 Liters) with 3-HP (2.2kw) pump motor ,
Coolant Pumps – Dual Coolant Pumps: 2x 1.7 hp pumps for tooling & 1 pump for coolant flushing
Coolant Tank: Gallons, 70-gallon (280 Liters) coolant tank

MACHINE WEIGHT: 22,751 lbs (10,320 kgs)
ELECTRICAL REQUIREMENT: KVA, 49.5KVA (220VAC ±5%, 3-phase, 60 Hz, 131 amps)
AIR REQUIREMENT: PSI, 85-psi @ 8-cfm for parts catcher, ejector, oil mist lubricator
MACHINE DIMENSIONS: Width 167” / Depth 88”/ Height 79” (includes chip conveyor)
SHIPPING DIMENSIONS: Width 181” / Depth 90”/ Height 82”
