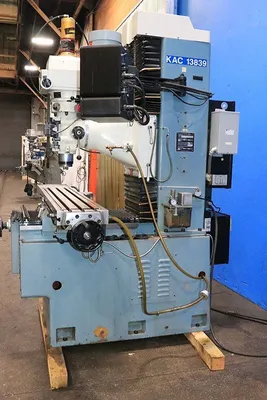

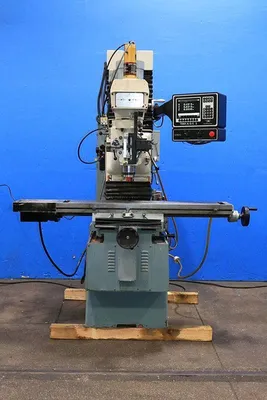

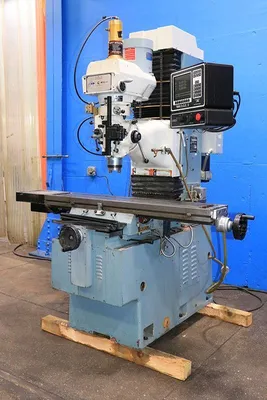

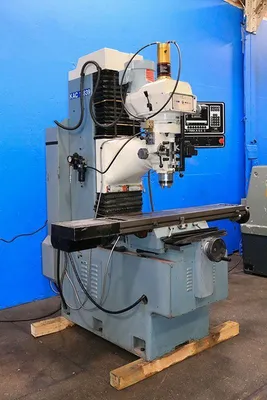

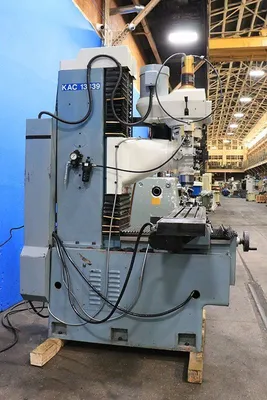

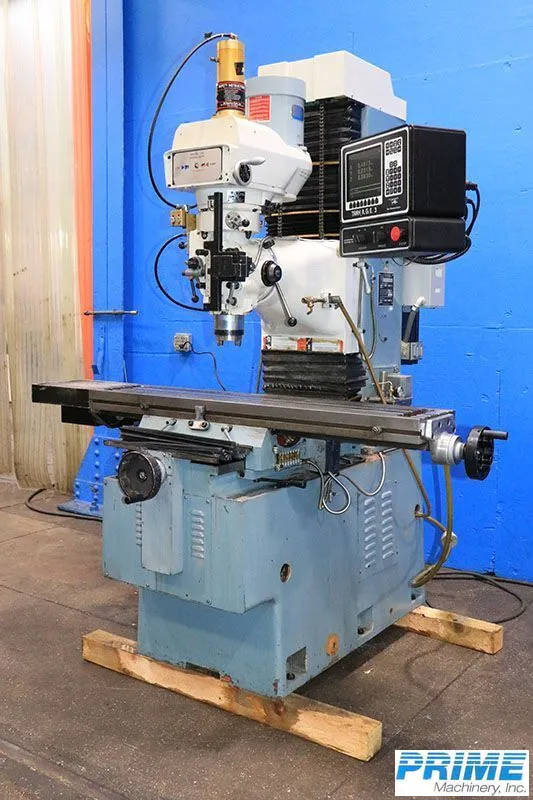

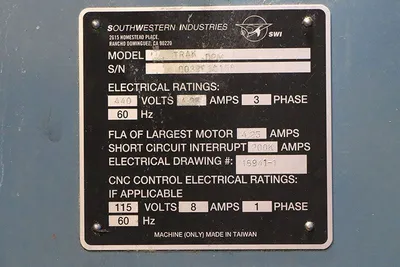

SOUTHWESTERN INDUSTRIES MODEL: DPM PROTO-TRAK 3-AXIS CNC BED MILL - NEW: 2000
ConditionUsed
1 available
SOUTHWESTERN INDUSTRIES 2000 TRAK DPM 3-Axis CNC Bed Mill. Features 10"x50" table, 31"X/17"Y/23.5"Z travels, 40-5000 RPM spindle, AGE-3 control, ball screws, coolant, auto lubrication, 3 HP motor. Ideal for toolrooms or prototypes.

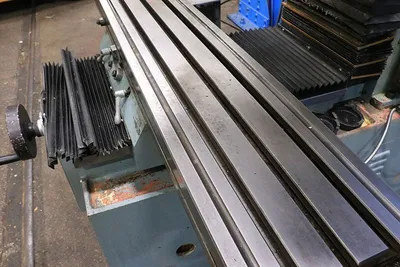

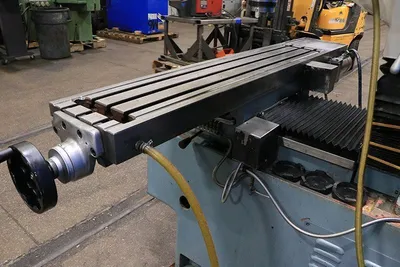

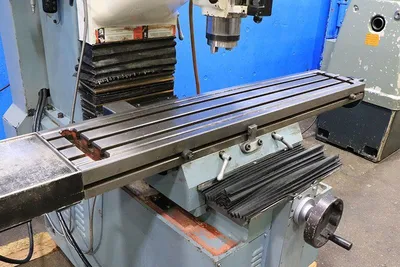

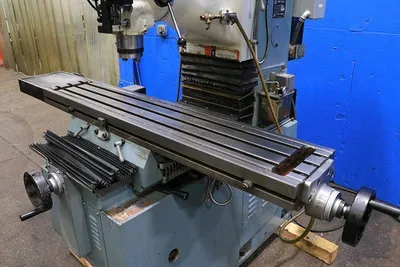

TABLE SIZE ........................ 10" x 50"
TABLE TRAVEL (X) .................. 31"
SADDLE TRAVEL (Y) ................. 17"
VERTICAL HEAD TRAVEL (Z) .......... 23.5"
QUILL TRAVEL ...................... 5"
SPINDLE TAPER ..................... #40 NST
SPINDLE NOSE TO TABLE ............. 0 - 24"
SPINDLE CENTER TO COLUMN FACE ..... 17.3"
HEAD SWIVEL LEFT & RIGHT .......... 90 DEGREES
SPINDLE SPEED RANGE ............... 40 - 5000 RPM
QUILL FEEDS (3) ................... .002, .004, .006 IPR
MAXIMUM WORKPIECE WEIGHT .......... 1,320 LBS
APPROX DIMENSIONS ................. 68"W x 64"D x 95"H
MACHINE WEIGHT .................... 4,100 LBS

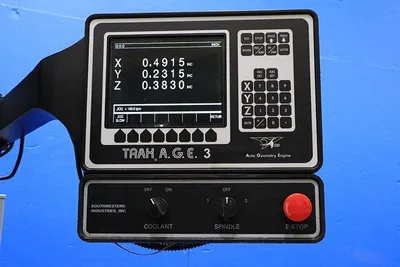

PROTO-TRAK MODEL: AGE-3 CONTROL UPDATED IN 2019
THREE-AXIS SIMULTANEOUS INTERPOLATION INCLUDING
HELICAL CANNED CYCLES
IN MANUAL MODE 3-AXIS DRO
RS232 PORT & FLOPPY DISK DRIVE
QUILL DIGITAL READOUT (Z IS HEAD UP & DOWN, NOT QUILL)
SQUARE BOX WAYS - HARDENED & GROUND
PRECISION BALL SCREWS
COOLANT SYSTEM

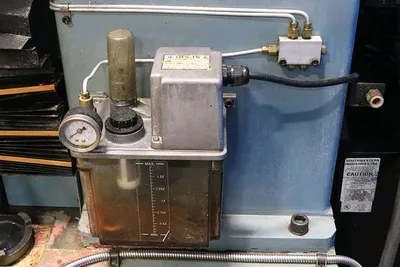

AUTOMATIC LUBRICATION SYSTEM
BELOWS WAY COVERS
3 HORSE POWER SPINDLE MOTOR
TRANSITION FREELY FROM 3-AXIS CNC TO MANUAL
PERFECT FOR A TOOLROOM OR PROTO-TYPE WORK
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
