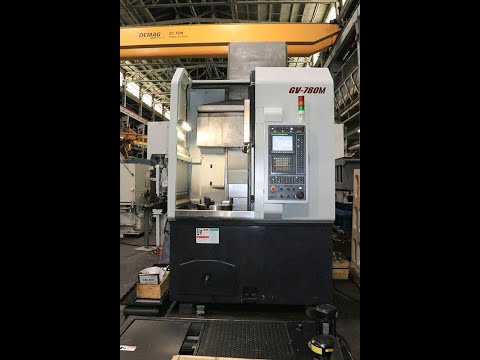

Yama Seiki GV-780M CNC Vertical Turning Center w/ Live Milling New: 2015
ConditionUsed
1 available
Explore precision with the 2015 Yama Seiki GV-780M CNC Vertical Turning Center. Featuring a 33.5" swing, 18" hydraulic chuck, and Fanuc 0i-TD control, this powerhouse boasts a 30 HP spindle motor and 12-station turret. Equipped with C-axis and chip conveyor.
Machine Control Fanuc 0i-TD
Chuck size 18" 3 Jaw Hydraulic Chuck
Maximum swing 33.5"
Maximum turning diameter 32.3"
Maximum cutting height 25.9"
X axis travel 19.7"
Z axis travel 26.4"
Spindle Nose A2-11"
Spindle Speed 2,000 RPM
Spindle Motor 30 HP
Table Torque 540 ft./lbs
Live Tooling Speed 40 - 4,000 RPM
Live Tooling Motor 9 HP
Number of turret positions 12 Station Turret
Machine dimensions 75" x 133" x 141"
Machine weight 19,850 lbs.
- Fanuc 0i-TD CNC Control
- 18" Chuck
- 12 Station Servo Turret
- C-Axis
- Chip Conveyor
- All Available Static and Live Toolholders
