SHARP MODEL: TMV-1 CNC VERTICAL MILL NEW: 2008 WITH PROTOTRAK KMX 2-AXIS CNC CONTROL NEW: 2016
$9,500.00 USD
ConditionUsed
1 available

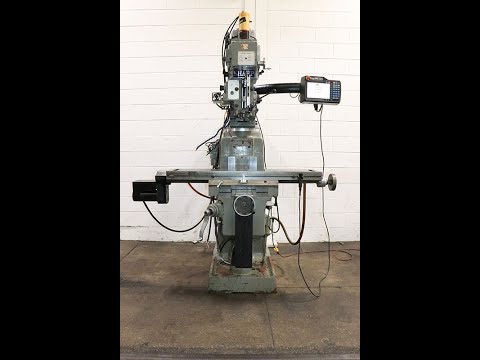

Explore precision with the used 2008 Sharp TMV-1 CNC Vertical Mill. Equipped with a Prototrak KMX 2-axis control updated in 2017, it features a 10"x50" table, 60-4,500 RPM speed range, and 5HP motor. Includes power drawbar, coolant, and one-shot lubrication.
TABLE WORKING SURFACE ................... 10" X 50"
T-SLOT NUMBER, SIZE ..................... 3, 5/8"
LONGITUDINAL TRAVEL (X-AXIS) ............ 32"
SADDLE TRAVEL (Y-AXIS) .................. 16.5"
RAM TRAVEL .............................. 19"
QUILL TRAVEL ............................ 5.3"
KNEE TRAVEL ............................. 15.3"
MAX/MIN THROAT DISTANCE ................. 30" / 4"
MAX/MIN DISTANCE, SPINDLE NOSE TO TABLE . 17.7" / 2.3"
HEAD TILT; RIGHT-TO-LEFT (EACH WAY) ..... 90 DEG
HEAD TILT UP-AND-DOWN (EACH WAY) ........ 45 DEG
INFINITELY VARIABLE SPEED RANGE ......... 60 - 4,500 RPM
SPINDLE TAPER ........................... NST#40
QUILL FEEDS ............................. 0.0015, 0.003, 0.005 IPR
MOTOR ................................... 5HP/3/60/220/440
FLOOR AREA (APPROX.) .................... 84" X 78" X 93"H
WEIGHT (APPROX.) ........................ 3,200 LB
- PROTOTRAK MODEL: KMX 2-AXIS CONTROL WITH RUN/STOP BUTTON & LED SCREEN (CONTROL UPDATED 2017)
- SCALE AND READOUT FOR QUILL TRAVEL
- VARIABLE SPEED HEAD
- HARDENED & GROUND BOX WAYS
- TORQUE-RITE AIR ACTUATED POWER DRAWBAR
- COOLANT
- ONE-SHOT LUBRICATION
