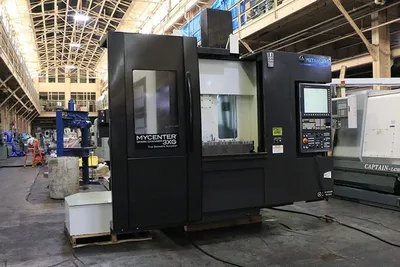

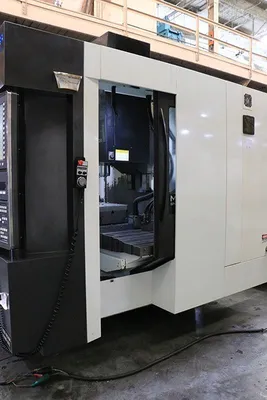

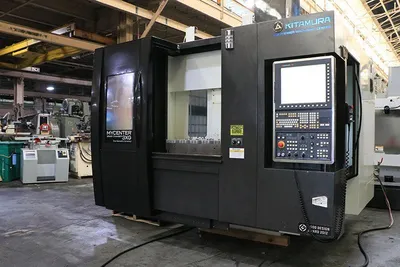

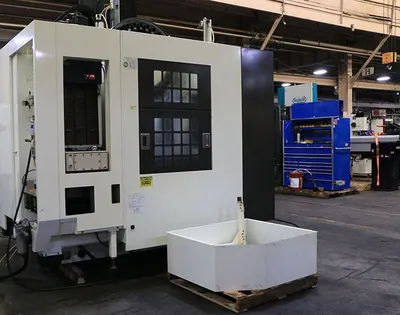

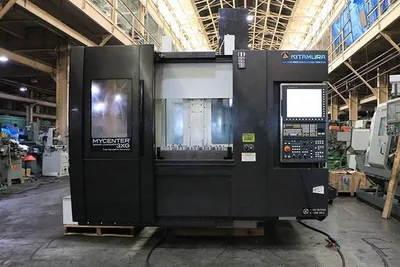

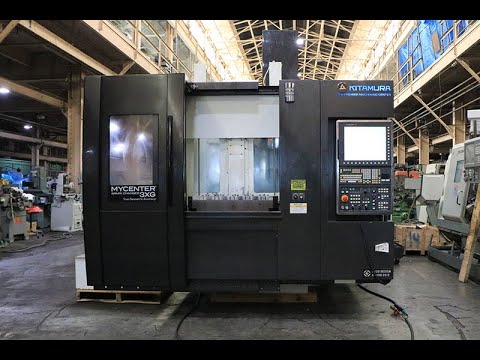

KITAMURA MYCENTER-3XG SPARKCHANGER CNC VERTICAL MACHINING CENTER - NEW: 2015

Kitamura Mycenter 3XG Ssparkchanger
Vertical Machining Center with Built in Rotary Pallet Changer
New 2015

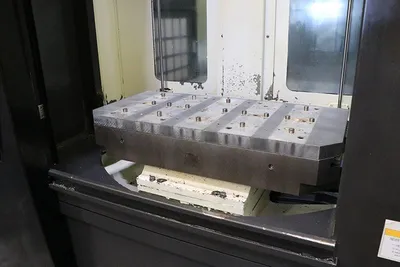

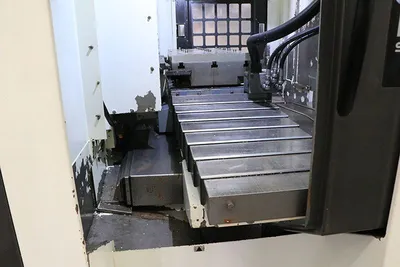

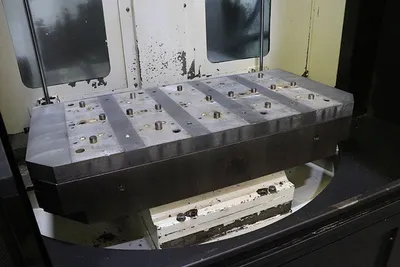

Table Size (2 Pallets) 16.1" x 34"
Maximum Table Load 440 Lbs
Number of Pallets 2
APC Change Time 7.8 Seconds

Travels:
X-Axis 30"
Y-Axis 17.9"
Z-Axis 18.1"
Distance from Table Top To Spin dle Nose 5.1" to 23.2"

Spindle:
Spindle Taper Cat 40, Dual Contact Spindle
Spindle Speed 40 to 15,000 RPM
Spindle Motor 10/15/20 HP

ATC:
Tool Storage Capacity 30 Tools

Feed:
Rapid Feed (X,Y / Z Axis) 1,969 IPM / 1,417 IPM
Max Cutting Feed, X,Y,Z 1,417 IPM

Machine Dimensions:
Required Space 137" W x 142" D
Machine Height 119.6"
Machine Net Weight 17,000 Lbs
