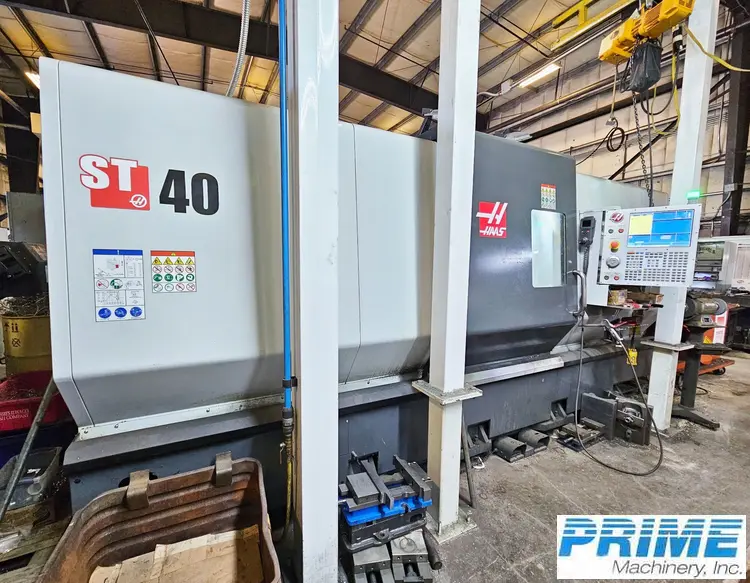

Haas ST-40 CNC Turning Center - New: 2017
ConditionUsed
1 available
Haas ST-40 CNC Turning Center - New: 2017. This used lathe features a max swing of 34.5", 25.5" max cutting diameter, and 44" max cutting length. Equipped with a 15” Bison hydraulic chuck, programmable tailstock, tool presetter, chip conveyor, and more. Spindle time: 3,084 hours.
MAX SWING 34.5"
MAX CUTTING DIAMETER 25.5"
MAX CUTTING LENGTH 44"
X-AXIS TRAVEL 17"
Z-AXIS TRAVEL 44"
CHUCK SIZE 15"
BAR CAPACITY 4"
SPINDLE BORE 4.6"
SPINDLE NOSE A2-8
SPINDLE MOTOR 55 hp
SPINDLE SPEED 2,400 RPM
TURRET POSITIONS 12
TURRET TYPE BOLT-ON
2-SPEED GEARBOX
EXTRA PERFORMANCE OPTION (55 HP)
15”, 3-JAW BISON HYDRAULIC CHUCK
PROGRAMMABLE TAILSTOCK
TOOL PRESETTER
CHIP CONVEYOR
EXTENDED TOOL POCKET
HIGH-INTENSITY LIGHTING
REMOTE JOG HANDLE
RIGID TAPPING
USB PORT
** AS OF SEPTEMBER 2024, SPINDLE TIME – 3,084 HOURS
** MACHINE CUT PRIMARILY BRASS & STAINLESS
** FULL REPLACEMENT COST, AS EQUIPPED - $195,000
** IN PLANT, UNDER POWER, AVAILABLE FOR IMMEDIATE INSPECTION & PURCHASE
Price Includes Preping and Loading
