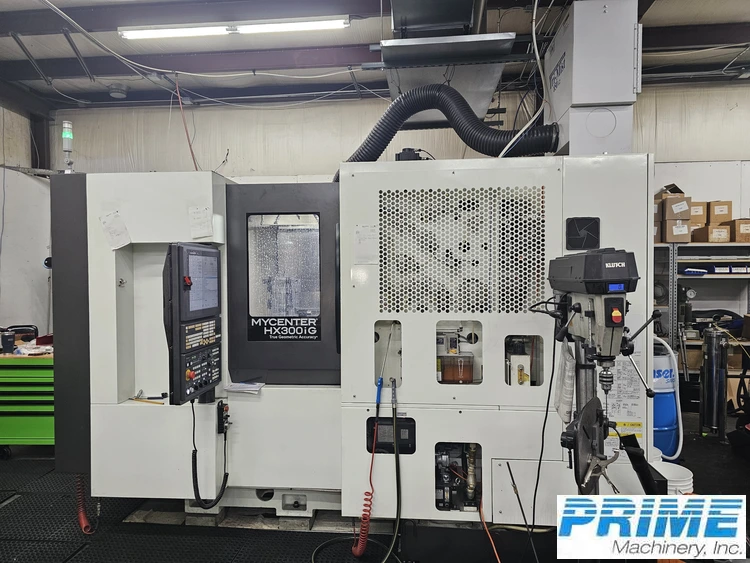

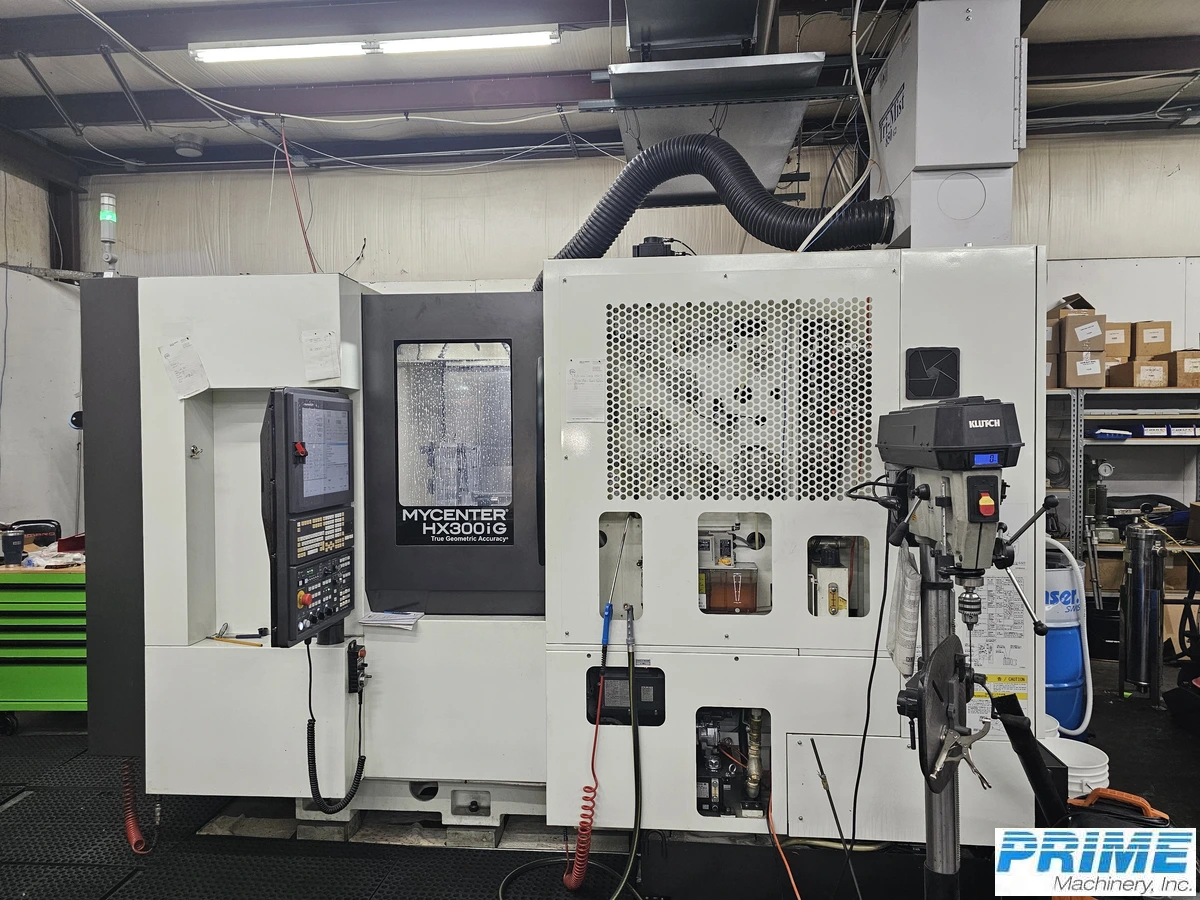

KITAMURA HX300IG CNC HORIZONTAL MACHINING CENTER - NEW: 2019
ConditionUsed
1 available
Used KITAMURA MYCENTER HX300IG Horizontal CNC Machining Center, 2019. Specs: X 18.1", Y 22", Z 22", 30 hp, 15,000 RPM, CAT-40, 50 ATC, 4-axis. Features Arumatik Mi CNC, spindle/tool probes, high-speed B-axis motor, coolant through spindle, and chip conveyor.
Arumatik Mi CNC Control
Spindle and Tool Probes
Hi Speed B-Axis Motor (54,000 deg/min - 150 rpm)
Coolnt through the Spindle
Chip Conevyor
Work Envelope 19.7" x 29.3" H
Used KITAMURA MYCENTER HX300IG Horizontal CNC Machining Center, 2019. Specs: X 18.1", Y 22", Z 22", 30 hp, 15,000 RPM, CAT-40, 50 ATC, 4-axis. Features Arumatik Mi CNC, spindle/tool probes, high-speed B-axis motor, coolant through spindle, and chip conveyor.
Imperial
| X | 18.1" |
| Y | 22" |
| Z | 22" |
| Power | 30 hp |
| RPM | 15,000 RPM |
| # ATC | 50 |
| Taper | Cat-40 |
| Pallet-W | 12" |
| Pallet-L | 12" |
| # Axis | 4 |
| Dimensions | 109" x 141" |
| Weight | 20,020 lbs |
Arumatik Mi CNC Control
Spindle and Tool Probes
Hi Speed B-Axis Motor (54,000 deg/min - 150 rpm)
Coolnt through the Spindle
Chip Conevyor
Work Envelope 19.7" x 29.3" H
