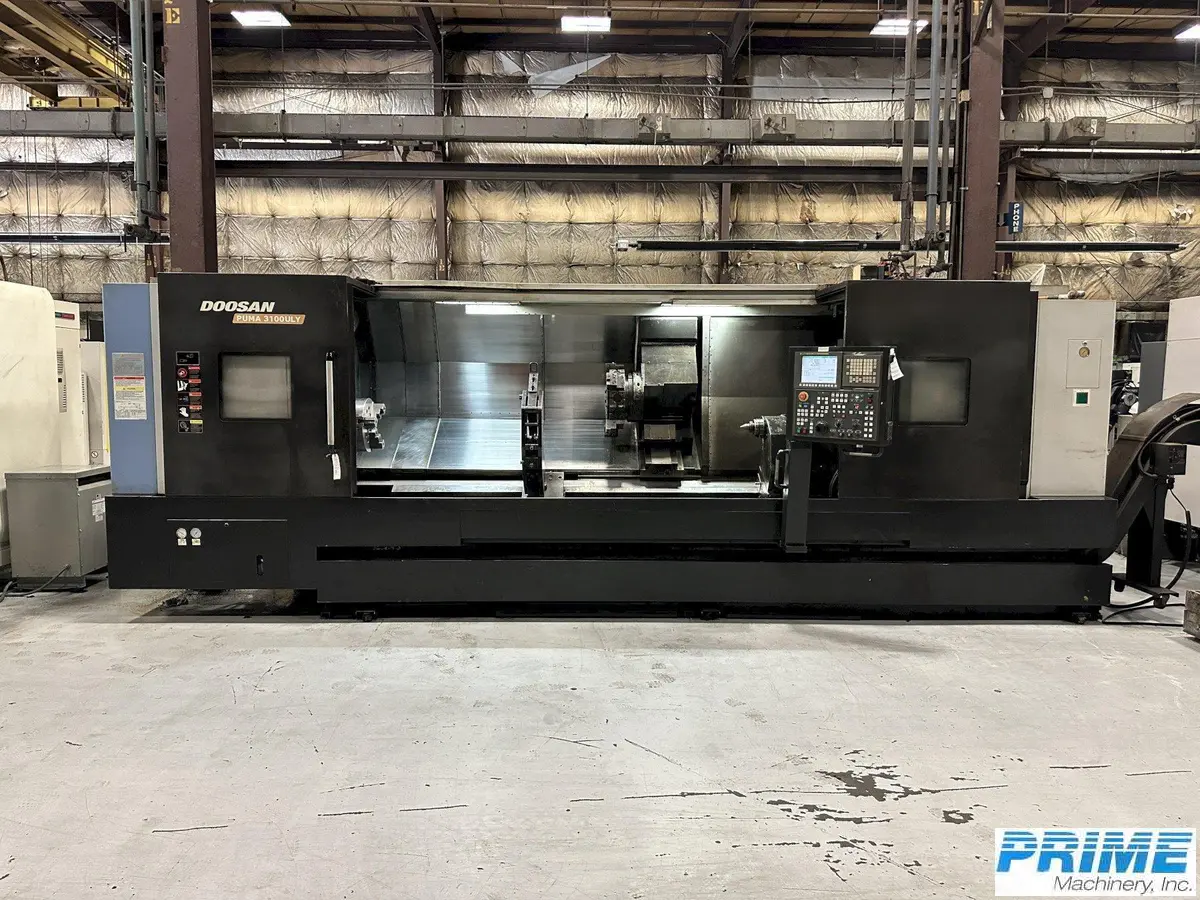

Doosan Puma 3100ULY CNC Lathe - New: 2010

# Axis 4 4
Swing 33.5 in 850.90 mm
Turning Diameter 16.5 in 419.10 mm
Center Distance 123 in 3,124.20 mm
Chuck Size 15 in 381.00 mm
Bar Capacity 4 in 101.60 mm
X Axis Travel 11.5 in 292.10 mm
Y Axis Travel 5.1 in 129.54 mm
Z Axis Travel 123.6 in 3,139.44 mm
C Axis Index 0.001° 0.001°
Rapid Traverse (X/Y/Z) 1181/394/1181 ipm
Spindle Nose A2-11
Spindle Speed 3,000 rpm
Main Motor 30 hp
Tailstock yes
Sub Spindle no
Y Axis yes
Live Tooling yes
Live Tooling Speed 5,000 rpm
Live Tooling Motor 10 hp
Turret Capacity 12
Machine Dimensions 300" x 90" x 91"
Machine Weight 29000 lb 13,154.17 kg
