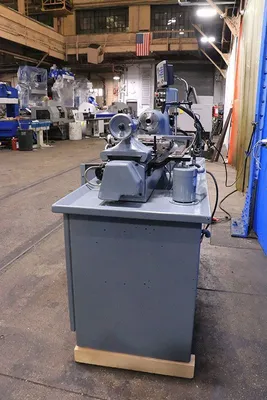

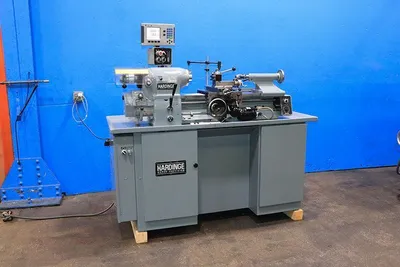

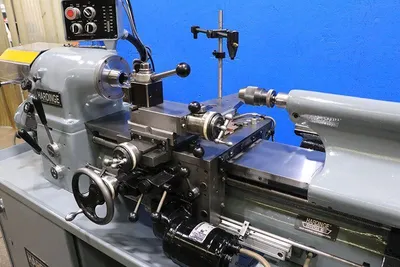

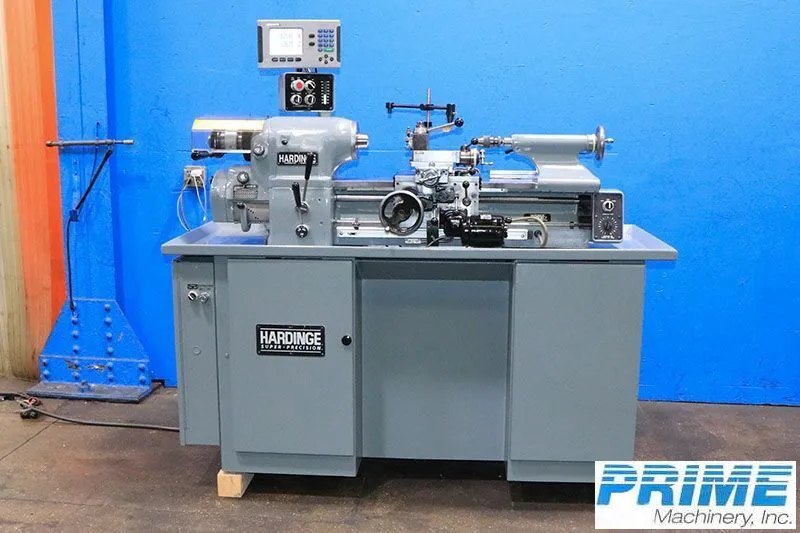

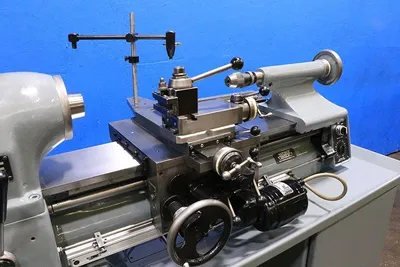

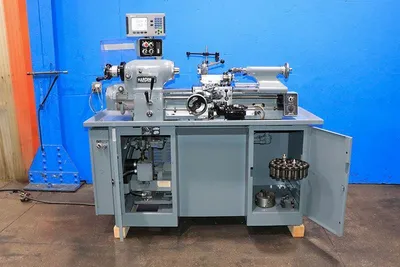

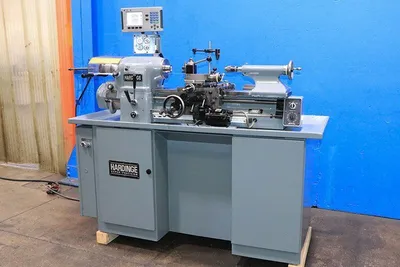

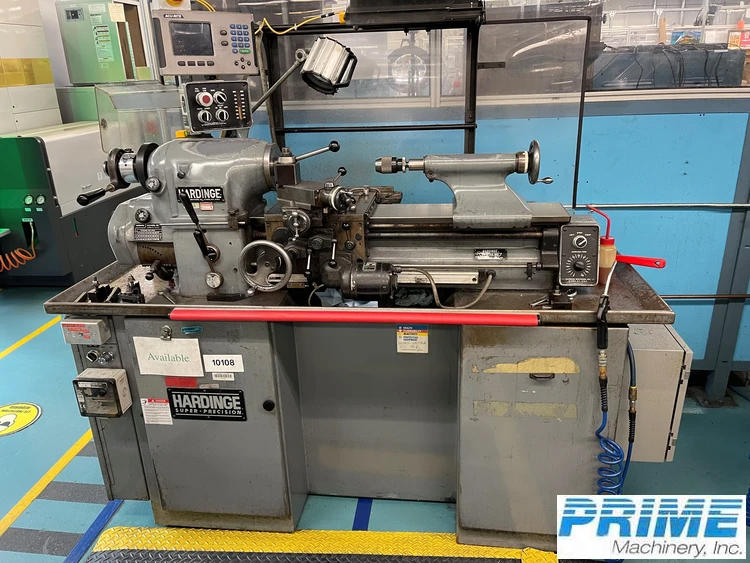

HARDINGE MODEL HLV-H SUPER-PRECISION TOOLROOM LATHE - NEW: 1985

HARDINGE SUPER-PRECISON TOOLROOM LATHE

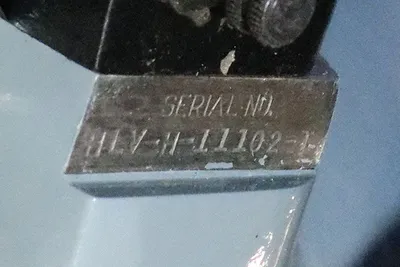

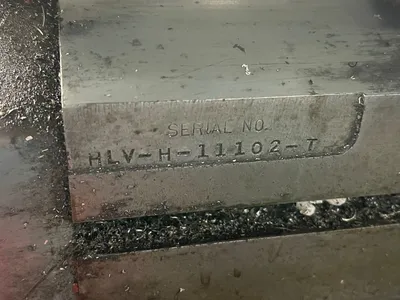

MODEL: HLV-H, S/N: HLV-H-11102-T, NEW: 1985

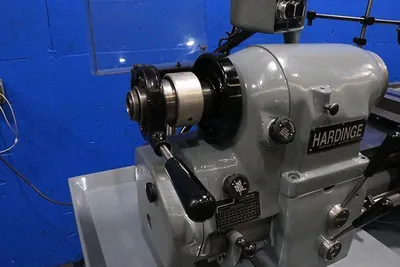

SPINDLE CONSTRUCTION ............. HARDINGE SUPER-PRECISION
PRELOADED BALL BEARING

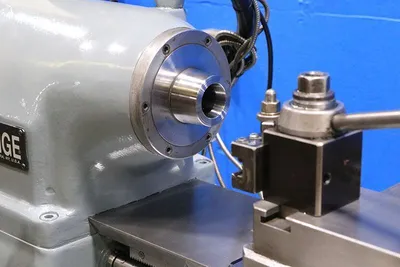

SPINDLE NOSE ..................... HARDINGE TAPERED

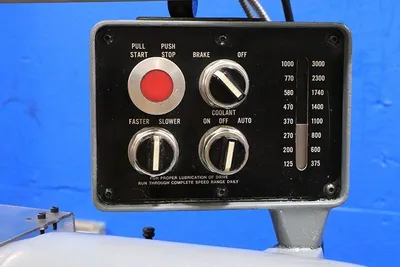

INF. VARIABLE SPINDLE SPEEDS ..... 125 TO 3000 RPM
HOLE THROUGH SPINDLE ............. 1-1/4"

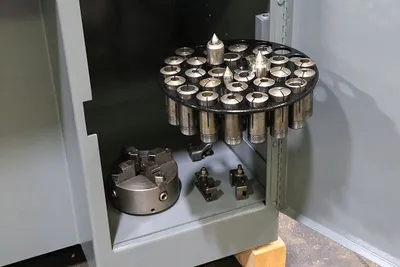

SPINDLE CAPACITY:
w/ROUND 5C COLLETS ........... 1-1/6
w/HEXAGON 5C COLLETS ......... 7/8"
w/SQUARE 5C COLLETS .......... 3/4"
w/STEP CHUCKS ................ 1-1/16" TO 6"
w/JAW CHUCKS ................. 5"
w/EXPANDING COLLETS .......... 3"
SWING OVER BED ................... 11"
SWING OVER CARRIAGE .............. 9"
SWING OVER CROSS SLIDE ........... 6"
DISTANCE BETWEEN CENTERS ......... 18"
COMPOUND SLIDE TRAVEL ............ 3"

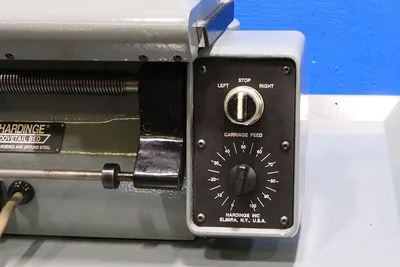

CARRIAGE POWER FEED RANGE ........ 5/16" TO 7" IPM
CROSS SLIDE POWER FEED RANGE ..... 3/16" TO 4" IPM
TAILSTOCK SPINDLE DIAMETER ....... 1-3/8"
TAILSTOCK SPINDLE TRAVEL ......... 3-3/4"
TAILSTOCK SPINDLE TAPER .......... #2 MT
THREADING RANGE .................. 11" TO 108" TPI
APPROX. DIMENSIONS ... LxWxH ..... 68" x 30" x 60"
APPROX. WEIGHT ................... 1,700 LBS.
