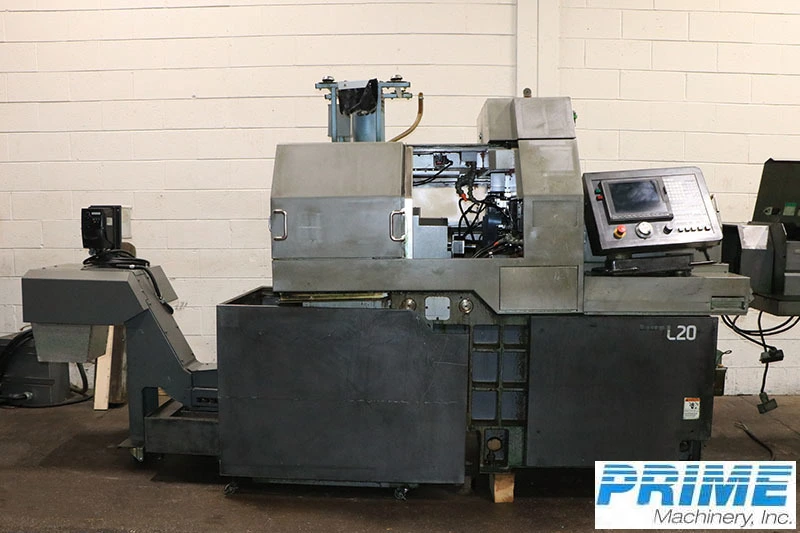

CITIZEN MODEL: L-20 TYPE VIII SWISS TYPE CNC LATHE NEW: 2005

Main Spindle
Max. machining diameter ....................... 3/4" (.79")
Max. machining length per one chuck ........... 7.87"
Max. drilling diameter ........................ up to .394"
Speed ......................................... 200 - 10,000 rpm
Min. spindle input increment .................. 0.01 Full C-axis
Motor ......................................... 2.2/3.7 KW
Tooling ....................................... 1/2" (T01 5/8")
Back-work:
Max. chucking dia. of pick-off spindle ........ .79"
Pick-off spindle speed ........................ 200 - 8,000 rpm
Pick-off spindle motor ........................ .75/1.5 KW
Min. spindle increment ........................ 0.01 Deg. Full C-axis
Rotary tool:
Rotary spindle speed .......................... 200 - 5000 rpm
Rotary tool motor ............................. 1.0 KW
Number of tools mounted ........................ 18-21
Turning / Front ID / Back ID / Live tools ... 5 / 3 / 3 / 5
Power consumption: ............................ 6 KVA
Approx. Machine Dims. .......................... 83.5" x 48" x 81"
Approx. Weight ................................. 5,000 lbs
