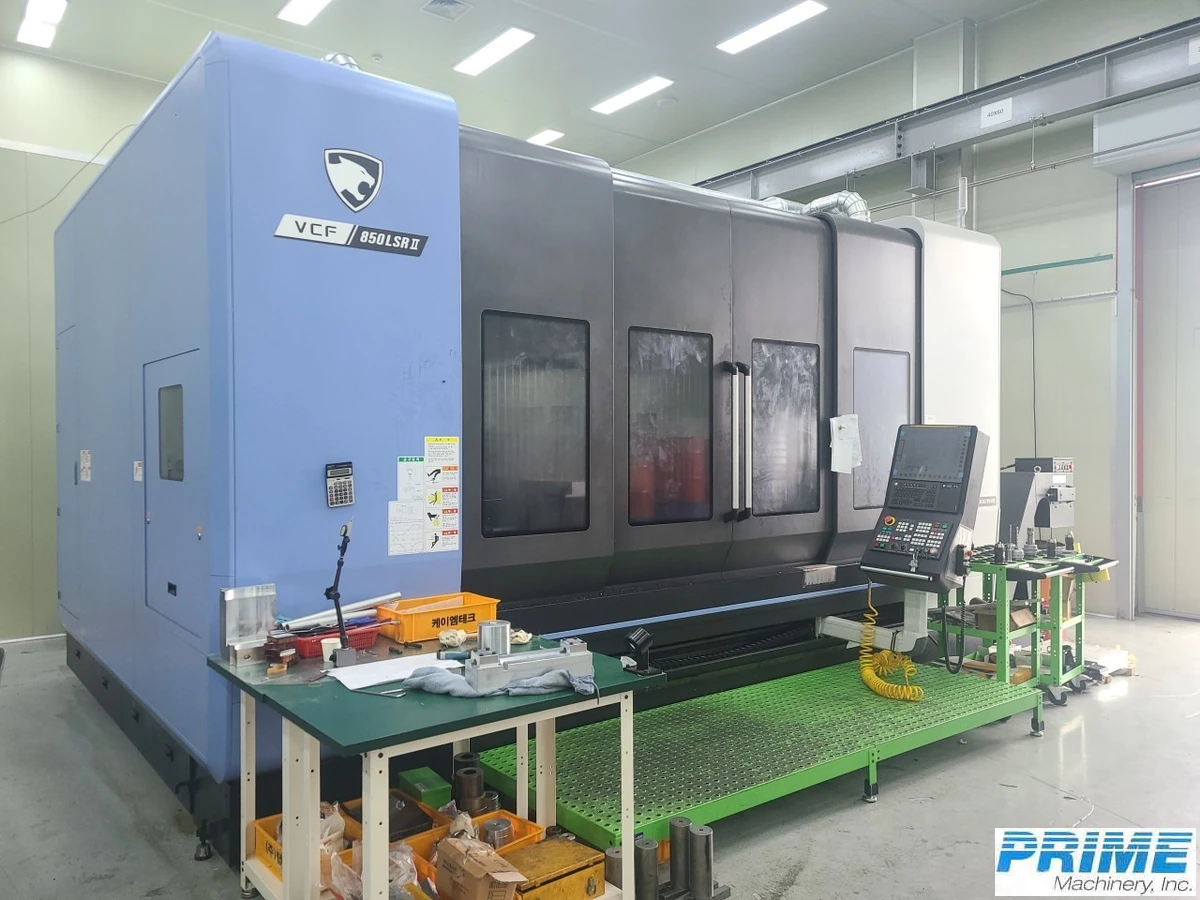

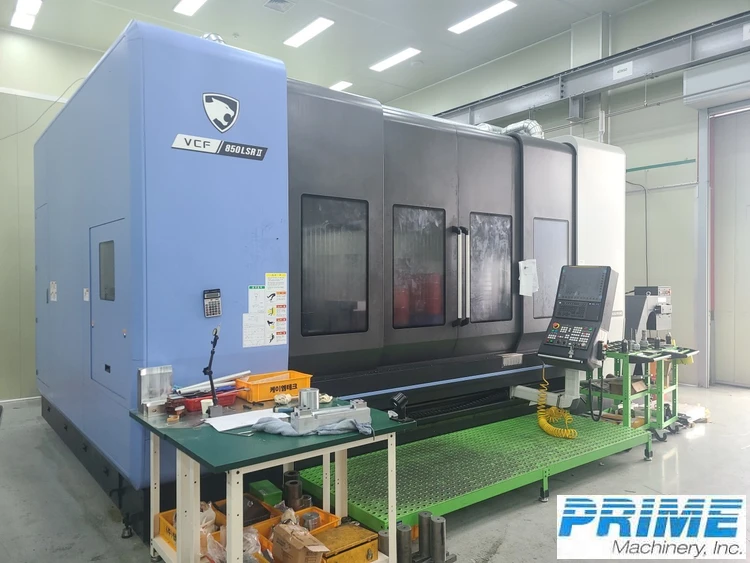

DOOSAN VCF 850LSRII 5-AXIS CNC TRAVELING COLUMN VERTICAL MACHINING CENTER, New 2022
ConditionUsed
1 available
2022 DOOSAN VCF 850LSRII 5-Axis CNC: 30HP, 12k RPM, 60 ATC, X: 118.1" Y: 33.5" Z: 31.5". Equipped with 800MM Rotary Table, scales, conveyors & measuring probes. Used, robust for complex machining.
Table Size 137.8" X 34.3"
Weight On Table 7716 LBS.
Integrated NC Rotary Table Size 31.5" DIA.
Spindle Nose To Table -1.6 ~ 29.9"
Main Spindle Speeds 12,000 RPM
Main Spindle Taper 40
Main Spindle Horse Power 30 HP
X - Axis Travel 118.11"
Y - Axis Travel 33.56"
Z - Axis Travel 31.5"
B - Axis Travel + - 110 DEGREES
C - Axis Travel Table Indexing .001 DEGREE
Rapid Traverse X, Y, Z 1574 IPM
Cutting Feed Rate 787.4 IPM
Automatic Tool Changer 60 ATC
Tool Diameter 3.1", 5.1"
Tool Length 11.8"
Tool Weight 17.6 LBS
Machine Weight 53,000 LBS
800MM Rotary Table
AI Contouring Control II
Chip Conveyor
RMP60 work piece measuring
TS27R tool measuring
XYZ axis scales
