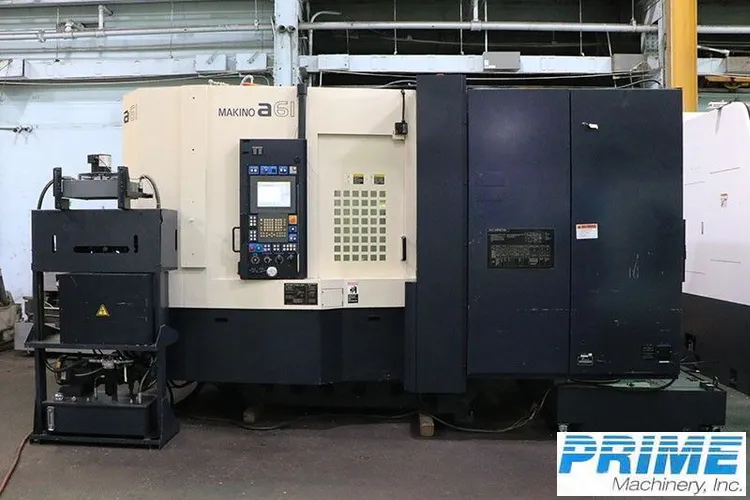

MAKINO MODEL: A-61 CNC HORIZONTAL MACHINING CENTER - NEW: 2005
ConditionUsed
1 available
Makino A-61 CNC Horizontal Machining Center (2005, used) with Professional 5 Control, high-power spindle, and full 4th-axis. Includes chiller, chip conveyor. See in NJ warehouse.
PALLET SIZE .......................... 19.7" X 19.7" (500MM)
MACHINE TRAVELS:
X-AXIS TRAVEL ...................... 28.7"
Y-AXIS TRAVEL ...................... 25.6"
Z-AXIS TRAVEL ...................... 28.7"
SPINDLE NOSE TO PALLET CENTER DISTANCE 2.76" - 31.5"
SPINDLE CENTER TO PALLET DISTANCE .... 3.15" - 28.74"
NUMBER OF PALLET STATIONS ............ 2
PALLET INDEXING FULL 4TH AXIS ........ (.001)
MAX PALLET LOAD ...................... 1,540 LBS.
PALLET CHANGE TIME ................... 8 SECONDS
RAPID TRAVERSE RATE (X/Y/Z) .......... 1,960 IPM
MAX CUTTING FEED RATE ................ 1,960 IPM
SPINDLE TAPER ........................ HSK 63
SPINDLE SPEEDS ....................... 0 - 12,000 RPM
TOOLCHANGER CAPACITY ................. 134 STATIONS
MAX TOOL WEIGHT ...................... 26.4 LBS.MAX TOOL
LENGTH/DIAMETER ...................... 14.17" X 2.76" /6.69"
TOOL TO TOOL TIME .................... 0.9 SECONDS
SPINDLE DRIVE ........................ 25 HP
APPROXIMATE MACHINE DIMENSIONS ....... 90"L X 178"W X 117"H
APPROXIMATE WEIGHT ................... 20,900 LBS.
-PROFESSIONAL 5 CNC CONTROL,
-25 HP HIGHPOWER SPINDLE DRIVE, 12,000 RPM SPINDLE
-THRU-SPINDLE COOLANT
-2 PALLETS,
-FULL 4TH AXIS (.001 DEGREE) PROGRAMMABLE PALLET
-134 STATION AUTOMATIC TOOL CHANGER
-CHILLER,
-CHIP CONVEYOR
INSPECT UNDER POWER IN OUR NEW JERSEY WAREHOUSE
