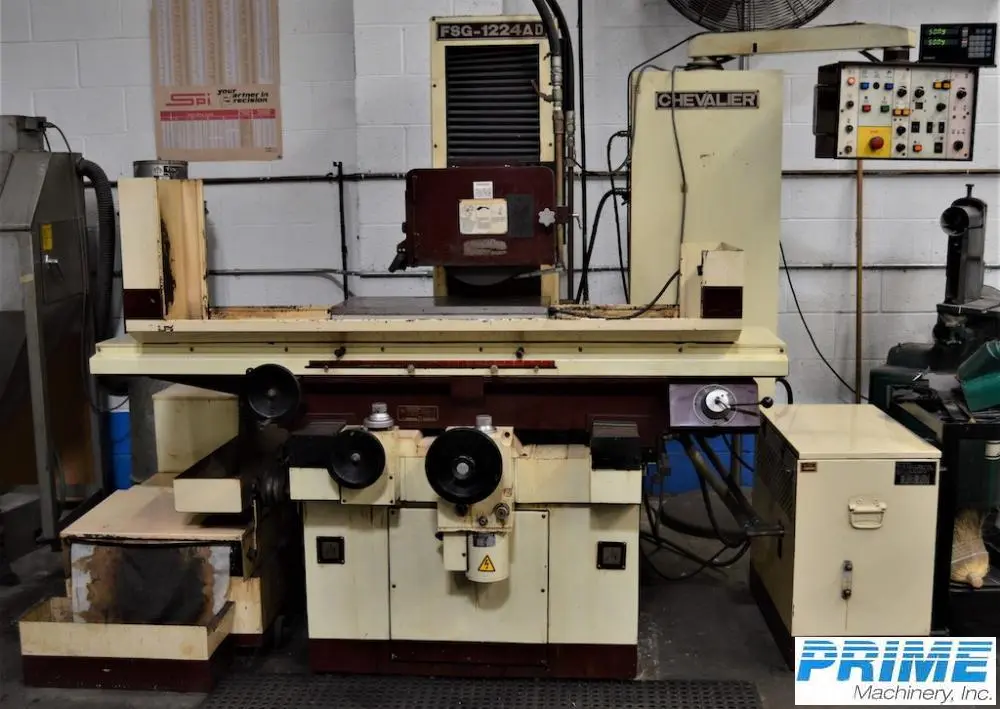

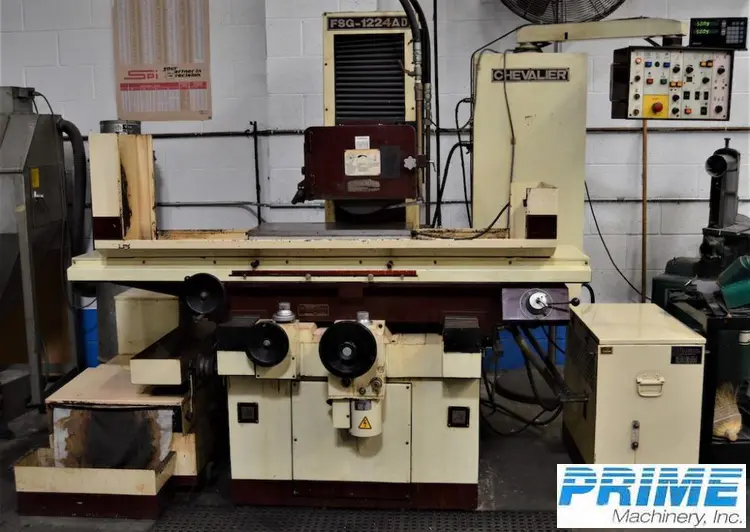

12" X 24" CHEVALIER FSG-1224AD PRECISION SURFACE GRINDER W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC INCREMENTAL DOWNFEED
$17,500.00 USD
ConditionUsed
1 available
1995 Chevalier FSG-1224AD Precision Surface Grinder is available for sale. This used machine is in excellent condition. It features a programmable microprocessor and automatic incremental downfeed. The heavy-duty grinders have a table size of 11-3/4" X 25-3/8", maximum grinding capacity of 12" X 24" and a spindle motor of 5 HP. The machine also comes equipped with pendant-mounted and microprocessor-controlled automatic incremental downfeed of grinding wheelhead, hydraulically actuated longitudinal table feed, electromechanically actuated feed of saddle, and Sony two-axis digital readout display. This precision machine is pre-wired to accept 230 or 460 volts.
12" X 24" CHEVALIER PRECISION SURFACE GRINDER
W/PROGRAMMABLE MICROPROCESSOR AUTOMATIC
INCREMENTAL DOWNFEED CONTROL (PENDANT MOUNTED)
MODEL: FSG-1224AD NEW: 1995
TABLE SIZE......................... 11-3/4" X 25-3/8"
MAX. GRINDING CAPACITY .................... 12" X 24"
MAX. LONGITUDINAL TABLE TRAVEL, HYDRAULIC ... 25-5/8"
MAX. LONGITUDINAL TABLE TRAVEL, MANUAL ...... 27-1/2"
MAX. CROSSFEED TRAVEL, AUTOMATIC ................ 12"
MAX. CROSSFEED TRAVEL, MANUAL ............... 13-3/4"
DIST. FROM SPINDLE CENTER TO TABLE .......... 19-3/4"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 82' FPM
AUTOMATIC CROSSFEED INCREMENT ........ 1/8" TO 1-1/4"
CROSSFEED HANDWHEEL, PER GRADUATION ......... 0.0025"
PER REVOLUTION ................................ 0.25"
MICROFEED, PER REVOLUTION ................... 0.0005"
PER GRADUATION ............................. 0.00005"
AUTOMATIC INCREMENTAL DOWNFEED .... 0.00005" TO .002"
AUTO DOWNFEED DIAL PER GRADUATION ........... 0.0005"
PER REVOLUTION ................................ 0.05"
MICROFEED ........................... 0.00005"/.0001"
RAPID TRAVERSE RATE .......................... 8" IPM
SPINDLE MOTOR .................................. 5 HP
STANDARD GRINDING WHEEL ......... 14"DIA. X 2"W X 5"B
APPROX. WEIGHT ............................ 4,850 LBS
APPROX. DIMENSIONS ................. 98" X 68" X 88"H
PENDANT MOUNTED AND MICROPROCESSOR CONTROLLED AUTOMATIC
INCREMENTAL DOWNFEED OF GRINDING WHEELHEAD FROM 0.00005"
T0 0.002" IN SURFACE OR PLUNGE MODES OF OPERATION. FULLY
AUTOMATIC GRINDING CYCLE INCLUDING RAPID ADVANCE OF
GRINDING WHEELHEAD, 0 T0 7 SPARKOUT PASSES, AND RETRACTION
OF WHEELHEAD TO A PRE-SET DISTANCE AT THE COMPLETION OF
THE CYCLE.
HYDRAULICALLY ACUTATED LONGITUDINAL TABLE FEED
ELECTROMECHANICALLY ACTUATED FEED OF SADDLE
TABLE AND SADDLE GUIDE WAYS MADE OF SPECIAL STEEL RAILS
WITH HIGH ACCURACY STEEL ROLLERS
PRECISION NEEDLE ROLLER BEARINGS USED ON THE ELEVATING
GUIDE WAYS
FINE (MICRO) FEEDS GRADUATED TO .00005" FOR VERTICAL
& CROSS FEEDS
11-3/4" X 23-5/8" KANETSU ELECTROMAGNETIC CHUCK WITH A
PENDANT MOUNTED POTENTIOMETER FOR VARIABLE HOLDING POWER
AND A SELECTOR SWITCH FOR AUTOMATIC DEMAGNETIZATION OF
WORK PIECE
"SONY" TWO-AXIS DIGITAL READOUT DISPLAY
EXTERNAL COOLANT SYSTEM WITH PAPER FILTER
EXTERNAL HYDRAULIC PUMP AND TANK
5 HP 3/60/230-460 VOLT DRIVE SPINDLE MOTOR
MACHINE IS PREWIRED TO ACCEPT 230 OR 460 VOLTS
** ORIGINAL PAINT - EXCELLENT CONDITION & APPEARANCE!! **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
