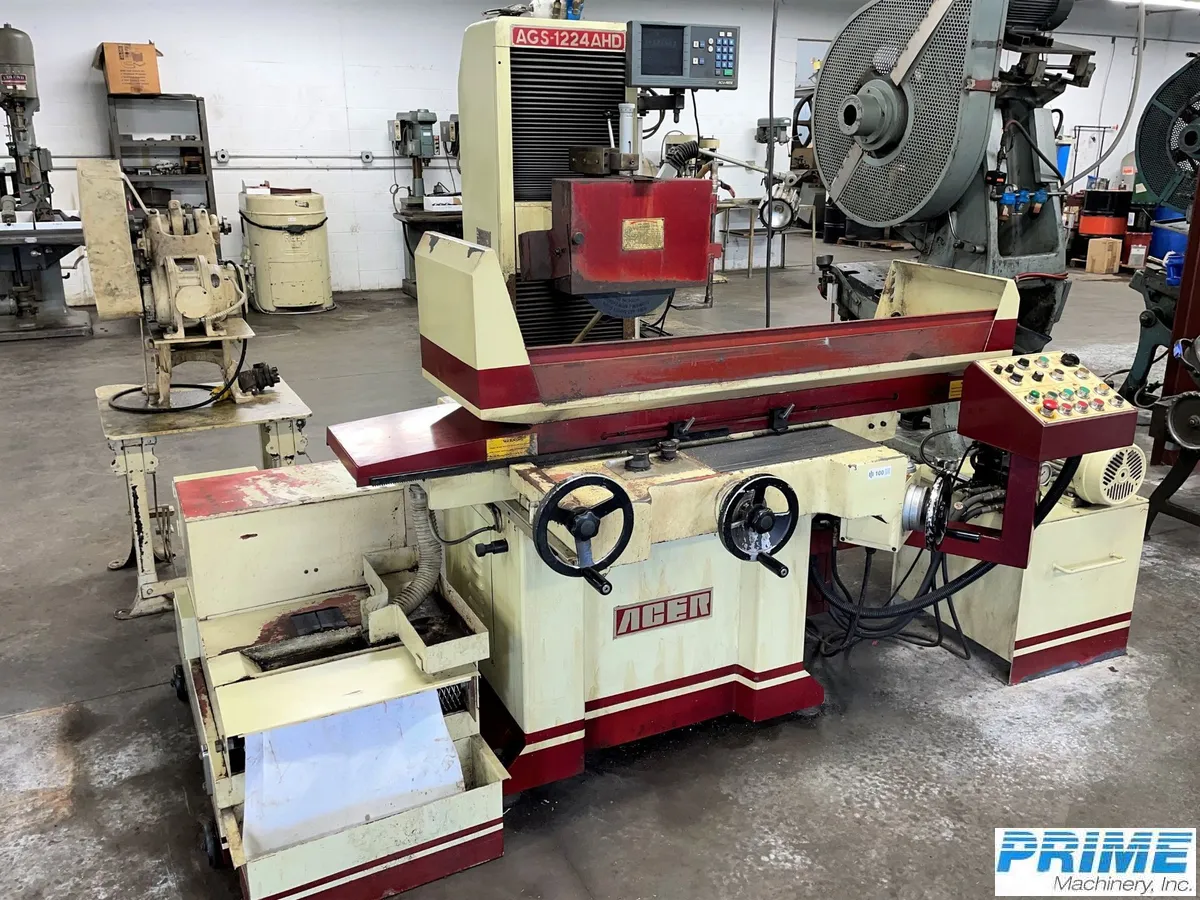

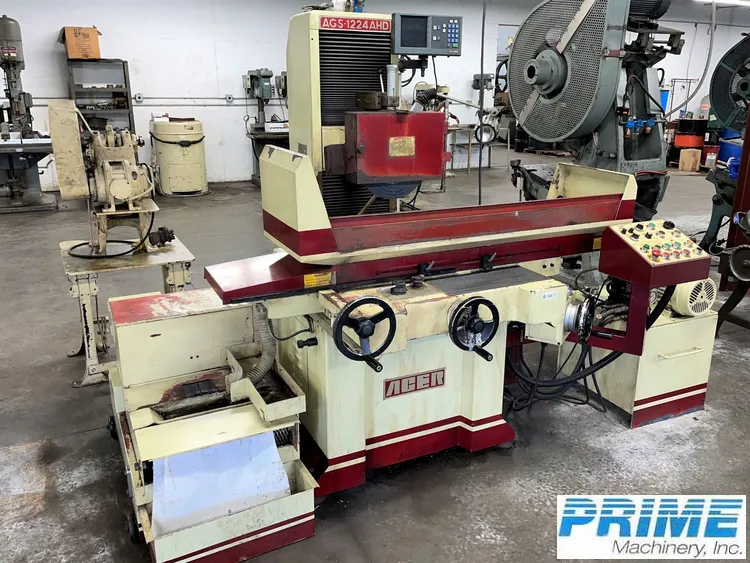

12" X 24" ACER AGS-1224AHD HYDRAULIC SURFACE GRINDER W/AUTOMATIC INCREMENTAL DOWNFEED & "ACU-RITE" 2-AXIS DRO
ConditionUsed
1 available
$18,500.00 USD
ACER AGS-1224AHD Hydraulic Surface Grinder. Equipped with automatic incremental downfeed and "ACU-RITE" 2-axis DRO. The overall weight of equipment is around 4,180 lbs and requires a floor space of 84"L-R x 67"W x 89"H. Noteworthy attributes include power rapid wheelhead positioning, hydraulically powered longitudinal feed among others. The machine offers a max surface ground of 12” X 24”, and a max table load including the chuck of 1000 lbs. Use it to ensure maximum productivity for your projects.
12" X 24" ACER HYDRAULIC SURFACE GRINDER
W/AUTOMATIC INCREMENTAL DOWNFEED
WITH "ACU-RITE" 2-AXIS DRO
MODEL: AGS-1224AHD NEW: 1999
MAX. SURFACE GROUND ........................ 12" X 24"
DIST. FROM SPINDLE CENTER TO TABLE ......... 23- 1/2"
VARIABLE TABLE SPEED, HYDRAULIC ...... 16' TO 80' FPM
MAX. TABLE TRAVEL .......................... 26.5"
AUTOMATIC CROSSFEED INCREMENT .............. 0" TO 1"
MAX. CROSSFEED TRAVEL (AUTO FEED) .......... 14"
PER REVOLUTION ............................. 0.1"
CROSSFEED HANDWHEEL PER GRADUATION ......... 0.001"
PER REVOLUTION ............................. 0.2"
AUTO INCREMENTAL DOWNFEED .................. 0.001" TO .0001"
VERTICAL GRADUATION ........................ 0.0005"
VERTICAL REVOLUTION ........................ 0.1"
MICRO ADJUSTMENT FOR VERTICAL HANDWHEEL .... 0.0001" GRAD.
SPINDLE MOTOR .............................. 5 H.P.
STANDARD GRINDING WHEEL .................... 14"D x 1- 1/4" x 5"
SPINDLE SPEED .............................. 1,750 RPM
MAXIMUM TABLE LOAD CAP. INCLUDING CHUCK .. 1,000 LBS.
APPROX. WEIGHT ............................. 4,180 LBS
FLOOR SPACE REQUIRED .................. 84"L-R x 67"W x 89"H
AUTOMATIC INCREMENTAL DOWNFEED (SURFACE & PLUNGE)
POWER RAPID WHEELHEAD POSITIONING BY PUSHBUTTON ON CONSOLE
HYDRAULICALLY POWERED LONGITUDINAL FEED
ELECTRONIC POWER CROSSFEED
TURCITE-B ON THE LONGITUDINAL WAYS (LOW FRICTION & WEAR)
12" x 24" ELECTRO-MAGNETIC CHUCK
VARIABLE HOLD NEUTROFIER CONTROL, ON THE MACHINE CONSOLE CONTROL
COOLANT SYSTEM WITH BOTH PAPER FILTRATION
OVER-THE-WHEEL DRESSER
EXTRA GRINDING WHEELS
"ACU-RITE" 2-AXIS DRO
MEEHANITE CASTING
AUTO LUBE SYSTEM
EXTERNAL HYDRAULIC SYSTEM
2 HP 3/60/230-460 VOLT EXTERNAL HYDRAULIC PUMP MOTOR & TANK
5 HP 3/60/230-460 VOLT SPINDLE MOTOR
** EXCELLENT CONDITION & APPEARANCE (ORIGINAL PAINT) **
** INSPECT UNDER POWER IN OUR HARRISON, NJ WAREHOUSE **
