Minster Super Speed OBS 60 ton OBI press, 32" x 21" Bolster, Model 6SS-FB, 1991, 4" Stroke, 90 to 180 SPM
$29,500.00 USD
ConditionUsed
1 available

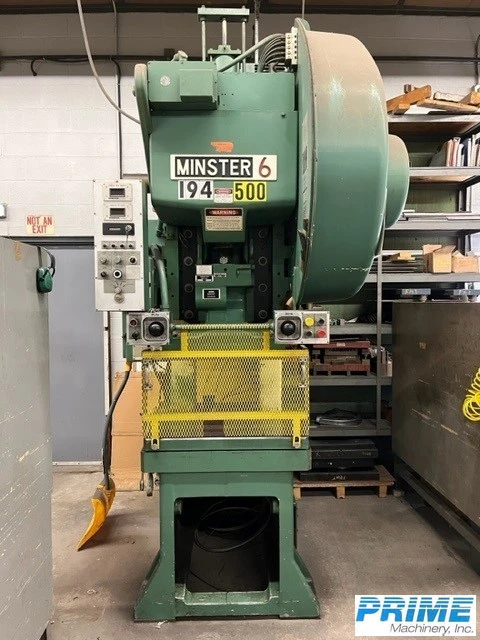

MINSTER Super Speed OBS 60 ton OBI press, model 6SS-FB. This piece of machinery is for pressing, equipped with a flywheel and double crank. Key specs include tonnage of 60 T, stroke of 4", bed width of 21" and length of 32". Features an air clutch and provides 90 - 180 strokes per minute. Operates at a floor to bed height of 33.25" and offers a slide adjustment of 2.75". Excellent for all your pressing needs!
Capacity ............................................. 60 Ton
Stroke ................................................. 4 in.
Speed ................................................. 90 - 180 SPM Variable
Shut Height ..................................... 16 in.
Slide Adjustment ........................... 2.75 in
Bed Area ........................................... 32" LR x 21" FB
Bolster Thickness .......................... 2.5 in.
Slide Area ........................................ 21" LR x 14" FB
Opening in Bed ............................ 18" LR x 14" FB
Throat Depth ................................. 11 in.
Width of Opening in Back ........ 15 in.
Shank hole diameter ................... 2 in.
Electrics: 480 Volt, 3 Phase
Approx. Dimensions: 66" x 70" x 128" (l x w x h)
Approx. Weight: 13,000 lbs.
Air Clutch & Brake
Variable Speed Drive
Air Counter Balance
Inch / Single / Continuous
Digital SPM Indicator
Press Mounted Dual Palm Buttons w/ E-Stop & Top Stop
Recirculating Lubrication System
Ram Equipped for Knock-Out
Drill & Tap Pattern in Bolster
Stroke Counter
